50 Ton Hydraulic Pneumatic Shop Press/metal Brake W/warn Electric Winch on 2040-parts.com
Las Vegas, Nevada, US

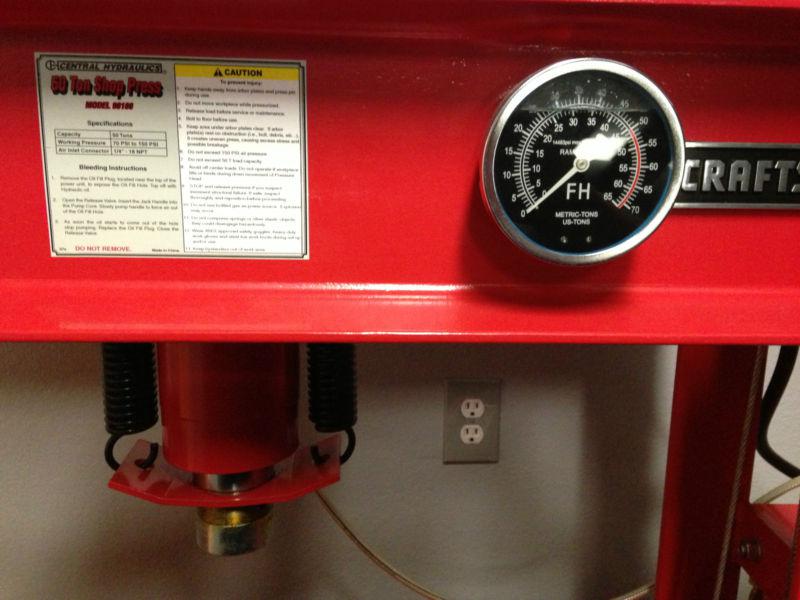

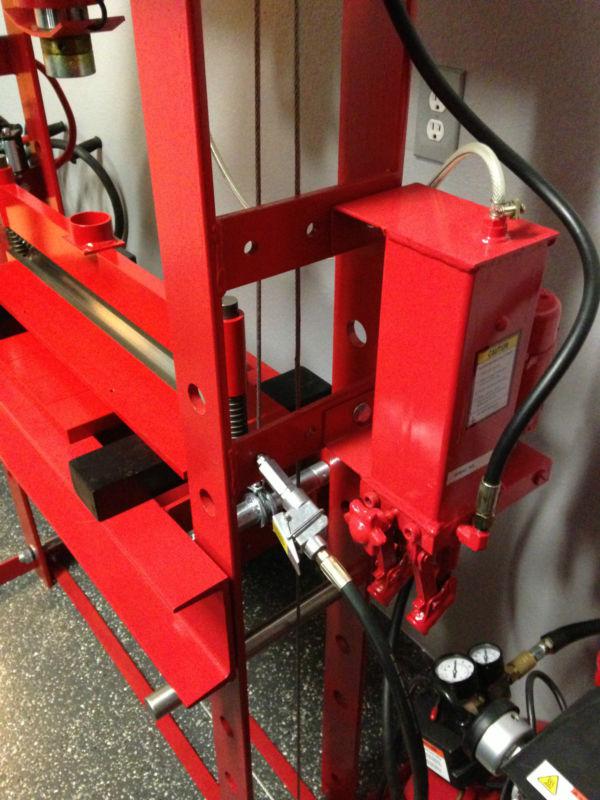

These units are custom built to order- they are all powder coated to match, machined for precise fit and alignment. We have incorporated the best technology of a 50 Ton Shop Press with Hydraulic and Air operation with a 40 Ton Metal Brake for bending up to 1/2" Steel !
When using heavy equipment like this no one wants a old crank motor- we have incorporated a Warn 12V Winch with Remote and Extra press plats - press plates alone valued over $500.00!
This was our first unit, we have sold about 20 units locally, there is a 2-3 week lead time as each unit is ordered and custom assembled prior to shipping it to you. There is a 30% restocking fee plus shipping for returns as these are made to order and we don't keep an inventory of these based on their size alone. The Craftsman stickers are optional as we used them since we are using press plates purchased in a partnership with Sears and they were just for fun. The specification are below:
- Hand-operated winch raises and lowers the bed
- Working distance: minimum 3" to maximum 26-1/4"
- Width between uprights: 32-1/4"
- Fast-pump core for quicker operation
- 90 Day Warranty provided by manufacturer
| Maximum working distance (in.) | 26-1/4 in. |
|---|---|
| Minimum working distance (in.) | 3 in. |
| Product Height | 6-3/4 ft. |
| Product Length | 4-3/4 ft. |
| Product Weight | 645 lbs. |
| Product Width | 31-1/2 in. |
| Stroke length (in.) | 6-5/8 in. |
| Width between channels (in.) | 32-1/4 in. |

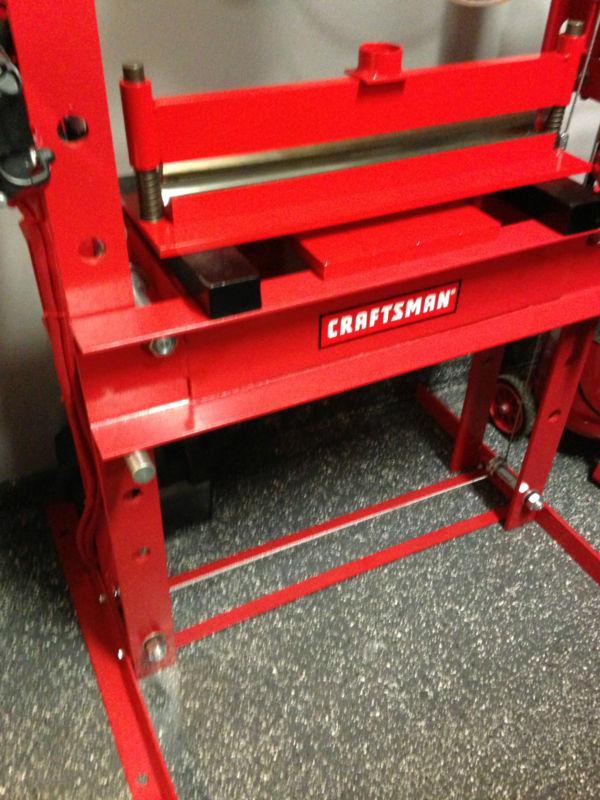

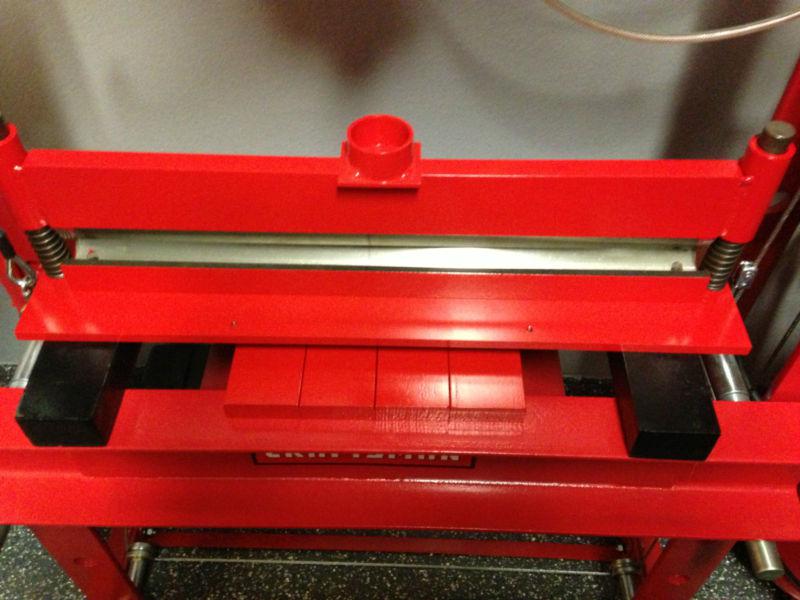

Shop Brake Press
- Bends steel @ 90 degrees: 1/8in. x 26in., 3/16in. x 22in., 1/4in. x 10in., 1/2in. x 4in.
- Bends .100in. aluminum up to 26in. wide
- 90 Day Warranty

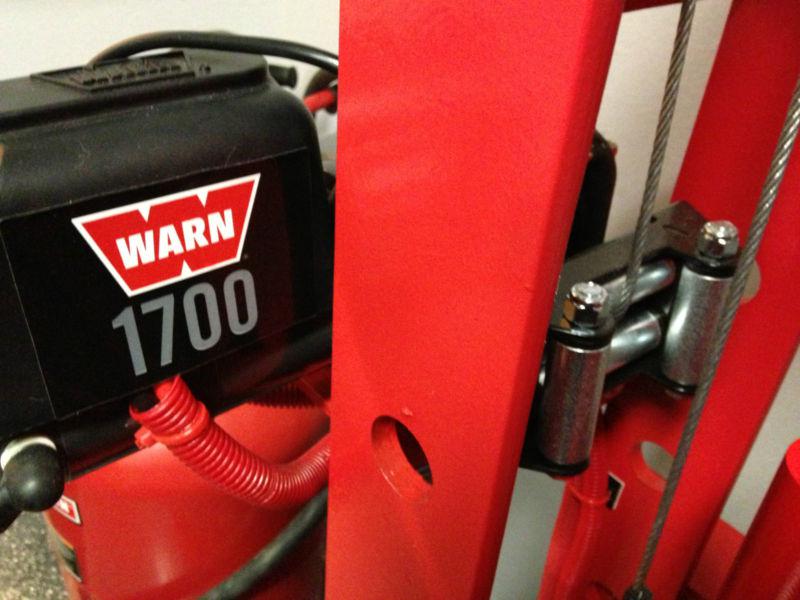

Warn 12V Winch with remote
| 1700 DC SPECS |
| Part Number: 91700 |
| Capacity: 1,700 lbs. (772 kgs) |
| Switch Type: Remote Control |
| Motor: Permanent Magnet |
| HP: 1.6 hp 3.0" Diameter |
| Power: 12V DC |
| Gear Train: Split Ring Gear |
| Gear Ratio: 153:1 |
| Clutch: Knob-Pull and turn |
| Brake: Self-locking gear train (Rated Load Holding) |
| Wire Rope: 3/16" X 35' (10.7 m) |
| Warranty: 1 year limited |
| Fairlead: Hawse |
| Hole Pattern: 2 Holes on 3.1" (7.87 cm) center |
| Electrical Leads: 2-6' (1.8 m) |
| Weight: 18 lbs. (8.2kg) |
| Replacement Wire Rope: PN 79835 |
