Bf05t 8mm Chain Master Link on 2040-parts.com
US $3.99
Location:
West Berlin, New Jersey, United States
Condition:New other (see details)
Manufacturer Part Number:PART07050
Country/Region of Manufacture:China
Warranty:No
Brand:Fancy Scooters
bo3qrtqh
Fancy Scooters
BF05T (8mm) Master link SKU#: PART07050 [L202-3-2 : 3-0/4-399/5-500] ID#: 391
| |
|
|
View Related Bikes, ATVs, Mopeds, Scooters and Parts NOT INCLUDED IN THIS SALE! |
Fancy Scooters FB49ccST Zida 49ccST Camouflage with Big Wheel |
Fancy Scooters FX6000GT Zida 6000GT |
Fancy Scooters FH500WMT Zida 500WMT |
Fancy Scooters FB513 Zida 49cc Chopper 513 |
Fancy Scooters FY2000HD Zida 49cc Chopper 2000HD |
Fancy Scooters FX086 Zida 49cc Ninjia 086 |
Fancy Scooters FY6000HDB Zida 6000HDB with wide rear wheel |
Fancy Scooters FB509 Zida 49cc Ninjia FB509 (Cat Eye) |
Fancy Scooters FY2008 Zida 49cc Chopper HL2008 with hydraulic brake |
Fancy Scooters FX812 (R-6) Zida 49cc Ninjia 812 CVT |
Fancy Scooters FX815 (X-8) Zida 49cc Ninjia 815 CVT |
Fancy Scooters FX086CVT(X-2) Zida 49cc Ninjia 086 CVT |
Fancy Scooters FB529 (X-7) Zida 49cc Ninjia 529 |
| Description |
---|
| Features |
---|

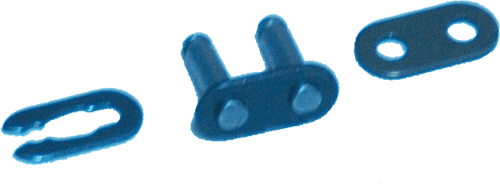

- BF05T (8mm) Master link
-
Chain Dimensions(in millimeters, divided by 25.4 to get size in inches) | | Name | P | d1 | b1 | d2 | L | h2 | 25 | 6.35 | 3.3 | 3.18 | 2.31 | 7.9 | 5.9 |
---|
25H | 6.35 | 3.3 | 3.18 | 2.31 | 8.9 | 5.9 |
---|
219H | 7.774 | 4.59 | 5 | 3.01 | 11.9 | 7.4 |
---|
BF05T | 8 | 4.71 | 4.61 | 3.05 | 11.48 | 7.6 |
---|
05B-1 | 8 | 5 | 3 | 2.31 | 8.2 | 7.1 |
---|
35 | 9.525 | 5.08 | 4.77 | 3.58 | 12.4 | 9 |
---|
40 | 12.7 | 7.95 | 7.85 | 3.96 | 16.6 | 12 |
---|
170GSX | 12.7 | 7.75 | 6.45 | 3.96 | 14.8 | 11.5 |
---|
81 | 12.7 | 7.75 | 3.5 | 3.66 | 9.3 | 9.8 |
---|
420 | 12.7 | 7.77 | 6.25 | 3.96 | 14.7 | 12 |
---|
428 | 12.7 | 8.51 | 7.75 | 4.45 | 16.7 | 11.8 |
---|
428H | 12.7 | 8.51 | 7.85 | 4.45 | 18.8 | 11.8 |
---|
- P: Pitch (mm)
- b1: Width between innerplates (min) (mm)
- d1: Roller diameter (max) (mm)
- d2: Pin diameter (max) (mm)
- L: Pin length (max) (mm)
- Lc: Pin length (max) (mm)
- h2: Inner plate depth (max) (mm)
- Q: Ultimate tensile strength (KN)
- Qs: Averate tensile strength (KN)
- q: Weight per meter (Kg/m)
|
