Product Features:
100% brand new and high quality
Easy installation, without damaging any parts of the car, clip on the original mirror
Special optical lens substitute the original rearview mirror
Supports car DVD, VCD, camera, and other video equipment
With 4 video input port, AV2 connects to car rearview camera, AV1 connects to DVD or VCD
When parking the car, the rearview image appears onto the screen automatically
Operation mode: touch buttons and remote control operation
With the menu button,brightness/contrast/hue/ language is adjustable
No audio input or output
Features:
- Professionally designed system with industrial leading components/parts.
- CCD camera with 2.1mm wideangle lens. This offers a super wide field of view angle at 120°.
Most other manufacturers use 3.6mm or 2.8mm lens, the view angle is much narrower. You can see more areas by using 2.1mm lens
- Builtin 18 IR LEDs for over 20ft nightvision view.
- Heavyduty 10M (33ft) video + power cable with a waterproof aerospacetype connector.
- Waterproof camera body with a sunvisor and metal bracket. Easy to mount on any flat surface of the vehicle
- Rubber seat for video cable to go through inside the cabinet without scratching the surface.
- 12V DC power input range to fit most of the medium to large vehicles on the road
- Allinone design to get rid of the bulky converter power box, very easy to setup.
- The TFT SCREEN has the switches to change between normal to mirrored image of the 2 cameras.
- Camera selection is done via remote controller or by pressing button on the monitor.
- Rear view camera is turned on automatically when vehicle is put on reverse gear.
- The
most advanced part is that the 2 cameras can switch on in turn
automatically depending on the status of your vehicle, like opening the
door.
- Aerospacetype cinch connectors are used for all connections. This is more reliable and simple to install.
-
Lightweight 16:9 wide angle view 9" TFT LCD color monitor with remote
controller. Special heatventilation design for longer life of use.
Specifications: |
Model:CAR-RV-1107VS |
1. 9 inch Rearview monitor with Touch Button |
2. Digital Panel |
3. High Sensitive Touch Button for Easy Operation |
4. Four video inputs,Auto switch to V4 when reversing |
5. System: PAL/NTSC |
6. Resolution:800(W)X3(RGB)X234(H)High resolution wide screen |
7. Power supply: DC12V |
8. Split 2 images display or 3 images display or 4 images or full screen Single image |
9. Last memory play function |
10. Operation temperature: -10C-60C |
11. View angle:up30; down30; left60; right60 |
12. Screen Type: 16:9 |
13. Dimension:273(w)X110(h)X26(D)mm |
- - 1 X digital 9" TFT LCD color monitor
- 1 X Mount/stand - - 4 X Water-proof CCD Color cameras with IR LEDs Night Vision

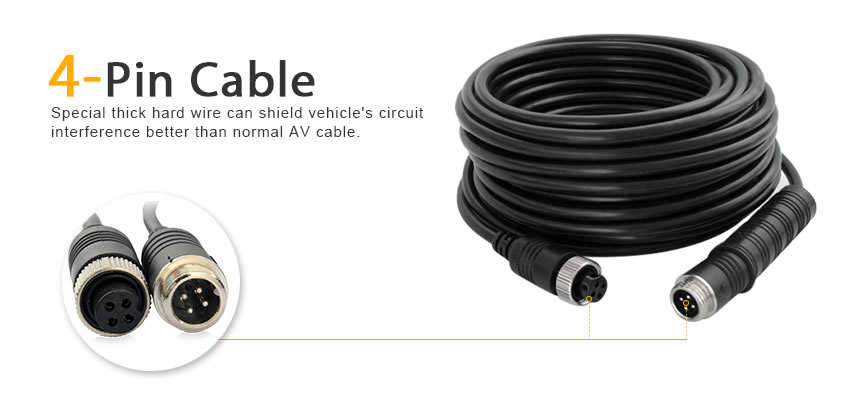

- 4 X 33ft/10M 4Pin extension cable for cameras
- 1 X Remote control (Without Battery)
- 1 X Power connection wire(video connectors are built-in this wire)
- 1 X Screw kit for installation
- 1 X User manual
