American Eagle 72" Utv Snow Plow Yamaha Rhino on 2040-parts.com

US $624.98
Location:

Bangor, Maine, US

Bangor, Maine, US
American Eagle 72 American Eagle 72 American Eagle 72 American Eagle 72
Returns Accepted:Returns Accepted Refund will be given as:Money back or exchange (buyer's choice) Item must be returned within:14 Days Return policy details:Returns accepts witha 15% restocking fee to be paid by the buyer. These plows are a special order item. Return shipping will be paid by:Buyer Restocking Fee:No atv snow plow:yamaha rhino plow kawasaki snow plow:american eagle plow

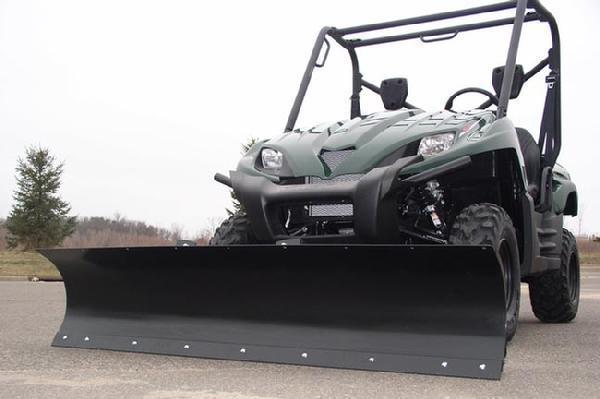

YOU ARE BUYING 1 AMERICAN EAGLE Yamaha Rhino UTV PLOW SYSTEM. ALL UTV plows in the chart are avaialbe for the same price

 Comes with a 72"std blade, mount kit w/ hardware and push tube. All u need is a winch or manual lift arm kit to raise and lower the blade.This is not included but available in another listing.

 Look at the chart below and see if they make a mount for your machine. If so then note your ATV model in the pay pal check out notes, ebay message to seller or just email us with the information

Product Information

The American Eagle Blade has a five position adjustable blade angle with up to 26 1/2 degree of angle. There is also adjustable blade pitch stops for maximum blade adjustment. It also features a solid 5/8" diameter blade positioning pin (largest in the industry). It comes standard with hardened 3/4" thick Ductile steel blade skids and 1/4" thick mounting brackets. The tube frame is constructed of high-tensile 1 1/2" square steel tubing and has 1/4" steel construction at all critical mounting points.

Quick Mount System: (Patented) American Manufacturing's ATV Plow Attaching System is the first and only ATV plow that uses a Patent Pending two part mount. This two part systems consists of a mounting plate and the Universal Tube Frame Mount and tighten four bolts. Before trail riding, you simply loosen the same four bolts and slide the Universal Tube Frame Mount off. This system has the benefit of no loss of ground clearance, or any hanging parts to catch or bend. As an added bonus the Mounting Plate also doubles as a heavy-duty skid plate.



APPLICATION CHART Make Year Model Center Mount Plows



Make Year Model/TYPE Winch Mt.
ARCTIC CAT   ATV
1998-05 250/300 1005
2002-04 300/375 1010
2008-09 366/425 1012
2002-04 400i/400 ACT/400 Auto/400 1010
1996-01 400/454 4X4 1005
1996-01 500CC 1005
2002-04 500i 1010
2000-01 500 AUTO 1005
2005-12 400/450-500/550 (for 2 hole pattern) 1015
2004-11 650 1015
2006-12 700/MUD PRO/TRV/TBX/Diesel 1015
2008-12 1000/ TRV (for 2 hole pattern) 1015
UTV
2009-13 PROWLER 550 (for 2 hole pattern) 1860
2008-13 PROWLER 700/HDX/XTX (for 2 hole pattern) 1860
2006-09 PROWLER 650 H1 1860
2010-13 PROWLER 1000/XTX (for 2 hole pattern) 1860
BOBCAT   UTV
2012 3400 4x4 1859
CAN/AM BOMBARDIER ATV
1999-05 Trax 1105
2002-05 Quest 1105
2003-06 Outlander 330/400 1110
2007-13 Outlander 400 1112
2006-12 V-Twin 500/600/800 1112
2012 V-Twin 500/600 & 800 Max 1112
2007-09 Renegade 800R 1115
UTV
2011-12 Commander 1000, 1000X 1811
2011-12  Commander 800R 1811
2013 Maverick 1000R 1810
CUB CADET UTV
2007-11 20 hp Kohler 4x4 1822
HONDA ATV
1993-00 TRX 300 1240
2000-07 Rancher 350/400 1220
2007-13 Rancher 420 1225
1995-04 Foreman 400/450 1215
2005-06 Foreman 500 1230
2007-11 Foreman 500 S/ES/FPE 1235
2012-13 Foreman 500 1236
2001-04 Rubicon 500 1210
2005-06 Rubicon 500 1230
2007-13 Rubicon 500 1235
2003-13 Rincon 650/680 1230
UTV
2009-13 Big Red 675 1815
JOHN DEERE ATV
2004-06 Buck/Ext 1105
2004-06 Trail Buck 1105
UTV
1993-2013 Gator 6x4 Winch/Plow Combo 2831
2004-12 Gator HPX 1831
2007-10 Gator XUV 1831
2013 Gator RSX 850i 1834
2013 Gator 825i  S4  4x4 1832
2011-13 Gator XUV 625i,825i,855D 4x4's 1832
KAWASAKI  ATV
1989-03 300 Bayou 4x4 1330
2002-11 360 Prairie 1320
1997-02 400 Prairie 1310
2002-04 650 Prairie 1305
2005-11 650 Brute Force 1315
2006-09 650i Brute Force 1340
2011-12 650i Brute Force 1341
2004-06 700 Prairie 1335
2005-07 750 Brute Force 1340
2008-12 750 Brute Force 1341
2012-13 750 Brute Force with Power Steering 1341
UTV
2005-13 Mule 610 UTV 1840
2012-13 Mule 4010 1821
2012-13 Teryx 4  RUV 1843
2008-13 Teryx RUV 1842
KUBOTA UTV
2012-13 400 RTV 1814
2008-13 500 RTV 1814
2004-09 900 RTV 4X4 1812
2010-13 900 RTV 4X4 (Roller Fairlead Plate Only ) 1813
2008-09 1100 RTV 4x4 1812
2012 1100 RTV 4x4  1816
POLARIS ATV
2008-10 300 Sportsman 1425
1999-06 330 Magnum 1410
2004-05 ATP 330  1410
Pre-1995 Sportsman 1400
1996-1998 400 Sportsman 1400
2001-04 400 Sportsman 1410
2005-07 400 Sportsman 1415
2008-09 400 Sportsman 1425
2011-13 400 Sportsman 1413
2005-06 450 Sportsman 1415
1996-1997 500 Sportsman 1410
1998-03 500 Sportsman 1410
2004 500 Sportsman 1407
2005-10 500 Sportsman 1415
2011-13 500 Sportsman 1413
2008-09 500 Sportsman Touring 1415
2011-13 500 Sportsman Touring 1413
2004-05 ATP 500 1410
2006-09 500 X2 1415
2011-13 550 Sportsman 1414
2010-13 550/850 Sportsman Touring 1414
2010-13 550 X2 Sportsman 1414
2009-10 550 XP Sportsman 1414
2002-04 600/700 Sportsman 1407
2005-07 600/700 Sportsman 1415
2008 700 X2 1415
2005-10 800 Sportsman 1415
2011-13 800 Sportsman 1413
2007-09 800 X2 1415
2008-09 800 Sportsman Touring 1415
2011 850 X2 1414
2009-13 850 XP Sportsman 1414
2013 XP850 Scrambler 4x4 1414
1991-1999 6X6 1400
2000-06 6X6 1410
2012-13 800 Sportsman 6x6 1413
2000 Explorer 250 4x4 1400
1996-01 Explorer 400 1410
2006-2011 Hawkeye 300, 2X4, 4x4 1425
1995-1998 Magnum 1400
UTV
2011-13 Ranger EV 1847
2010-13 Ranger 400  4x4 midsize 1847
2011-13 Ranger 500 & 500 Crew Midsize 1847
2013 Ranger 800 & 800 Crew Midsize 1847
1998-01 Ranger 6x6 1848
2001-04 Ranger 4x4 1849
2005-08 Ranger - XP 1850
2008-09 Ranger Crew 1850
2009-13 Ranger XP800  Full Size 1851
2013 Ranger 800   6x6 1851
2013 Ranger Diesel & Diesel Crew 1851
2013 Ranger XP900 1854
2013 570 RZR 1852
2008-13 800 RZR 1852
2012-13 XP900 RZR 1853
SUZUKI ATV
1999-2000 LTF 300 King Quad 1520
2001-02 LTF 300 King Quad 1515
2008-13 King Quad 400 1510
2007-09 King Quad 450 1530
2009-13 King Quad 500 1530
2004-06 Twin Peaks 700 1335
2005-07 King Quad 700 1530
2008-13 King Quad 750 1530
2002-07 Eiger 1505
2002-07 Vinson 1505
YAMAHA   ATV
Thru-05 Wolverine 350 1655
2004-06 Bruin 350 1615
2007-09 Grizzly 350 1615
2000-02 Kodiak 400 1620
2003-06 Kodiak 400 1615
1997-06 Big Bear 400 1650
2007- Big Bear 400 1640
2007-09 Big Bear 400i 1640
2003-06 Kodiak 450 1615
2006-08 Wolverine 450 4 X 4 1660
2007-08 Grizzly 450 1615
2009-13 Grizzly 550 1625
1998-01 Grizzly 600 1610
2002-08 Grizzly 660 1605
2007-13 Grizzly 700 1625
  UTV
2006-09 Rhino 450 1635
2004-08 Rhino 660 1635
2006-09 Rhino 700 1635
2011-13 Rhino 700 1635
