Ford 9" Rear Brake Disc Conversion Large Bearing with No External E-Brake.

The Vented Disc Brake Rotors are 11.5" and have a Center
Opening (register) of 2.78". The rotors are drilled for both the Ford 5
on 4.5 using 1/2" studs or GM 5 on 4.75 using 7/16" studs. Axle
shaft flange OD maximum is 6.250 to fit inside the rotor.

NOTE: Be sure to measure your 9 Inch Ford axle shaft
Flange and Centering Register against the dimensions listed
above as you may have to modify your existing axles for proper fit.

Check your hang out or back space. This Rear Brake Disc Conversion kit
will accommodate either a 2.50 or 2.36 back space. See the back space image.

Please Note; Check your Axle to be sure of Bearing Size as this Rear Brake Disc
Conversion Kit is for the Large Bearing, 3.1530", Ford 9inch Axle.
NOTE Be sure to check your Housing End Measurement Listed Above along with
the bearing OD to be sure you have a Large Bearing 9 inch as many Custom Axle
Shops use the 9 inch large bearing in several different end dimensions.
(Small Bearing Rear Disc Conversion Kit is also available.)

The following upgrades are offered,
Drilled and Slotted Zink Washed Rotors $77.50

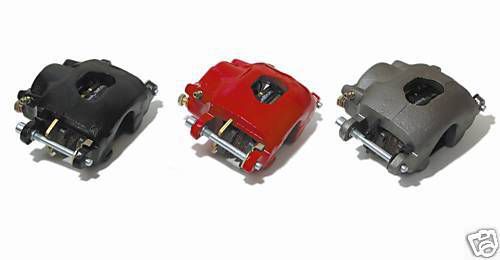

Powder Coated Calipers for $77.50
Available in Red, Black or Clear
Stainless Steel Braided flex hoses. $79.97

(The above listed upgrade prices are Only
available with the purchase of a Rear brake
Conversion Kit)

For International, Canadian and those outside
the Lower 48 States Please call or e-mail with
your complete address for a shipping quote.

Note: Call us for help with any dimensions other
than those listed i.e., Bolt Pattern, Center Hole etc.
Custom Machine work is offered at additional cost.
