Bendix King Ky 97a Vhf Comm Transceiver - With Serviceable Tag, Tray, Connector on 2040-parts.com
Seattle, Washington, US
FEATURES
- VHF Communications Transceiver with Liquid Crystal Display
- Operates 760 frequencies from 118.00 to 136.975 MHz (version dependent, see table below)
- Flip-flop frequency switch to transfer between active and standby frequencies
- Remote switch may be installed as an additional means of providing flip-flop function
- 9 programmable memory channels in addition to the two displayed frequencies
- Non-volatile frequency storage without batteries or external battery hookup
- Audio leveling automatically amplifying weak audio signals and muting those which are too strong
- Stuck microphone indication through flashing display
- 5 watts minimum power output
- Models available with 25Khz or 50KHz selectivity (see table below)
- Models available with different audio outputs (see table below)
- Same as KY-96A VHF Comm but KY-97A operates on 14 volt only
- TSO'd
SPECIFICATIONS
- Size: 6.25"W x 1.3"H x 10.50"L Weight: 2.9 lbs.
- TSO Compliance (Transmitter): TSO C37c, Class 4 TSO Compliance (Receiver): TSO C38c, Class C & D (-60 model); TSO C38c, Class A & B (-61 model)
- Power Output: 5 Watts min. 1 minute on, 4 minutes off 118.00 to 136.975MHz in 25KHz 1 minute on, 4 minutes off
- Temperature Range: -20 to +55C Frequency Range: 118.00 to 136.975MHz in 25KHz increments
- Modualtion: 70% modulation with 90% limiting. Less than 15% distortion at 70% modulation Receiver Sensitivity: 2uV (hard) or less for 6dB S+N/N with 1KHz tone modulated 30%
P/N 064-1051-60 VHF Communications Transceiver Description
- 25Khz receiver selectivity, 4W into 4ohm audio output, 760 channels
NAV/COMs for Sale
Hughes fixed film resistor p/n 955216 l3 comm. radar aerospace htf usa hd $ hq!(US $50.00)
Collins avionics model pwc-150 28vdc to 14vdc power converter *warranty*(US $74.95)
Collins avionics 628-7990-001 1.3 amp 28vdc to 14vdc power converter *warranty*(US $54.95)
Collins avionics model gls-350 glideslope receiver *warranty*(US $99.95)

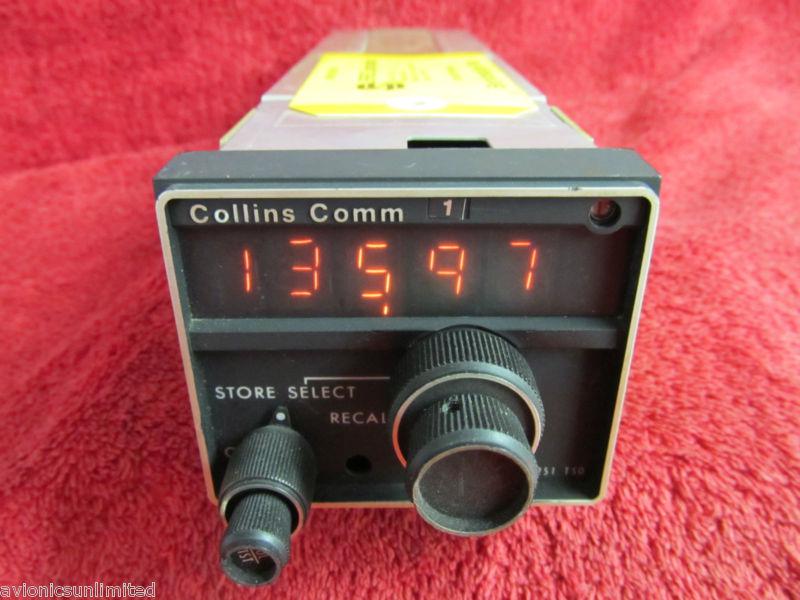

14v collins avionics model vhf-251 communication transceiver *warranty*(US $495.00)

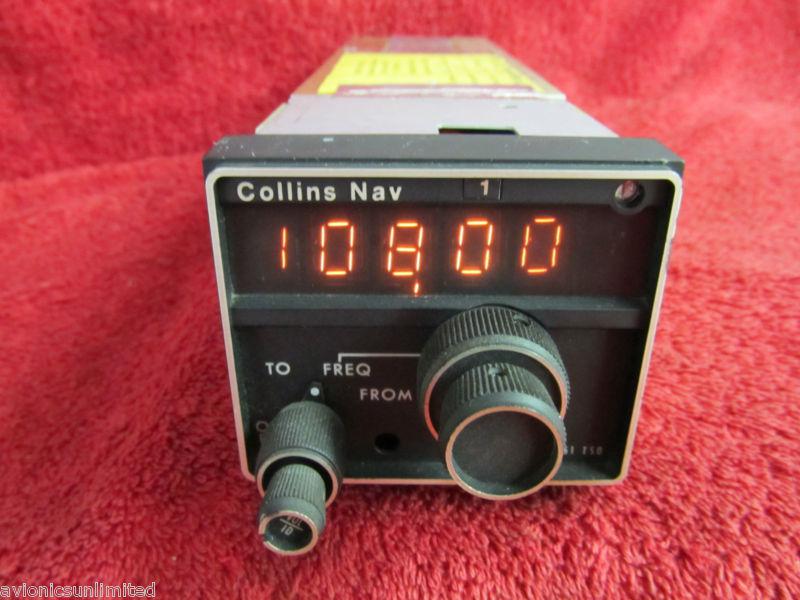

14v collins avionics model vir-351 navigation receiver *warranty*(US $249.95)
