Car Truck Bus Rear View Kit 9" Quad Monitor + 4x 4pin Revering Ccd Color Camera on 2040-parts.com

US $149.99
Location:

Shenzhen, Guangdong, China

Shenzhen, Guangdong, China
Condition:New Type:Rear View Monitor w/Cam Kit Screen Size:9" Brand:iPoster Warranty:Yes Manufacturer Part Number:IV9800HD



Welcome To My STore:

 Advanced Wired Heavy Vehicle CCD Reversing Complete Kit 4-pin connector, one cable does it all!
9" Quad Monitor + 4X CCD Waterproof Metal Cover Camera
A luxury solution for car reverse & all sides
4 X High Definition CCD waterproof IR camera with wide view angle
4 X 10m length video cable for bus/truck
Quad 9" High quality TFT LCD monitor
4 X channel video inputs
Easy installation
This item is 12V-24V version.

There are 11 different modes to display, meeting different needs.
This is a 9 inch color TFT LCD car rearview monitor with 4 video input, works perfectly with car rearview cameras, supports car DVD/serveillance camera/STB/satellite receiver/other video equipment. Comes with an IR remote controller for easy operation.

 photo iPoster-1607_zpstbe29yej.jpg photo a4_zpsoqfuwwyr.jpg
The advantages of 4-pin connector cable

One cable solution deals with both power and singal transmission. No power cable is needed to connect cameras. Special thick hard wire

can shield vehicle's circuit interference better than normal AV cable.

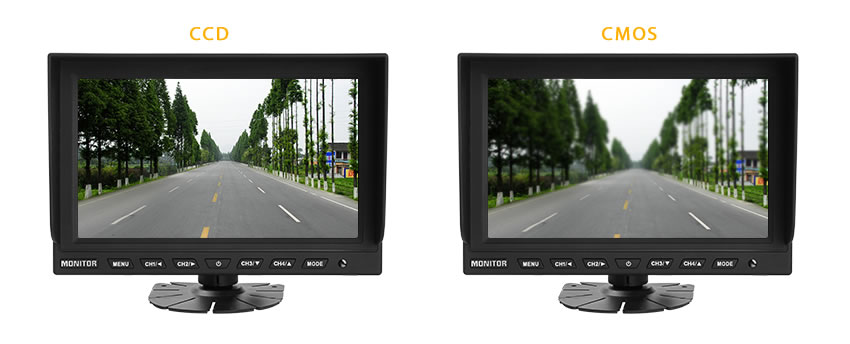

The difference between CCD and CMOS camera

CCD camera has sharper pictures. It sharpens the focus of picture, making it as real as possible.

CCD lens Makes clear night vision even in a low light environment.

18 infrared lamp used in the low light condition

You can easily adjust the angle at Multi-level

120 degree angle lens, ensure car’s rear side for effective reversing and parking operation

100% complete waterproof

12V-24V input


 photo a9_zpse2yvimrz.jpg
 photo a10_zpsqiwfbuya.jpg
 photo a13_zpsfbjpjx32.jpg




An ideal Kit for Truck / Caravan / Bus / Autocaravana / Camión
9" 4-Pin Monitor TFT LCD Conector 4-Pin Connector Waterproof IR CCD Camera 10m 4-Pin Waterproof Shield CableRemote Control
4 Pin Connector Wateproof &Shockproof CCD CameraIP 67 waterproof grade can cope with marine environmentCCD camera provides clearer image, wider view angle

Wired Heavy Vehicle CCD Reversing Complete Kit 4-pin connector, one cable does it all!
9" Quad Monitor + 4X CCD Waterproof Metal Cover Camera

A luxury solution for car reverse & all sides
4 X CCD waterproof IR camera with wide view angle
4 X 10m length video cable for bus/truck
Quad 9" High quality TFT LCD monitor
4 X channel video inputs
Easy installation

This item is 12V-24V version.

There are 11 different modes to display, meeting different needs.
The CCD image sensor outputs digital signals that improve picture's clarity, color contrasting and sharpness to a better level than CMOS camera.
With its 18 individual Infrared (IR) LED, CCD camera shows clear images in low light conditions especially at night circumstances.
This heavy duty CCD camera is hard metal cased, waterproof and mud proof. Can last for a longer time without heating up, providing rearview at all time.


The advantages of 4-pin connector cable:

One cable solution deals with both power and singal transmission. No power cable is needed
to connect cameras. Special thick hard wire can shield vehicle's circuit interference better
than normal AV cable.

The difference between CCD and CMOS camera:

CCD camera has sharper pictures. It sharpens the focus of picture, making it as real as possible.
CCD lens Makes clear night vision even in a low light environment.

18 infrared lamp used in the low light condition
You can easily adjust the angle at Multi-level
120 degree angle lens, ensure car’s rear side for effective reversing and parking operation
100% complete waterproof
12V-24V input


This item is for 12V-24V power input vehivles

Monitor cable is approx. 2.5m (7.4ft) long.
Video cable is 10m(33ft) long.(Extra length video cable is available for purchase, please contact us for details.

      Monitor
      Style
      9'' TFT LCD Color Monitor
      Color SystemPAL/NTSC (AUTO)
      Display Resolution480(H) x 234(V)
      Vedio Input2 Channel
      Brightness250(cd/m²)
      Operating temperature-20°C - +70°C
      VoltageDC12V-24V
      Camera
      Style
      4 PIN
      Sensor1/4 "SHARP Color CCD
      Horizontal Resolution420TV Lines
      Effective pixelNTSC : 510(H) x 492(V)
      PAL : 500(H) x 582(V)
      Mimimum Illumination0LUX(18 IR LEDs for night vision)
      View angle120°
      Video Output1.0Vp-p75Ω
      VoltageDC12V-24V
      Waterproof gradeIP67
      Shockproof10G
      Dimension89(W) x 53(H) x 48(D) mm
What is included:
  •  - 1 X Quad 9" TFT LCD color monitor
     - 1 X Mount/stand
  •  - 1 X Detachable Sunshade Cover
  •  - 4 X Water-proof CCD Color cameras with IR LEDs Night Vision
     - 4 X 33ft/10M 4Pin extension cable for cameras
     - 1 X Remote control (Without Battery)
     - 1 X Power connection wire(video connectors are built-in this wire)
     - 1 X Screw kit for installation
     - 1 X User manual
