HOT! Full Truck Trailer Reversing Kit -7" LCD Monitor Backup 2 CCD IR Camera 12V

ΔTOP

HOT SALE!
7" 4-Pin Connector TFT LCD Monitor
+ 2x 4-Pin Connector Waterproof IR CCD Camera
+ 2x 10m 4-Pin Waterproof Shield Cable
+Remote Control

A Luxury Solution for Truck/ Caravan/ Bus/ Motorhome/ Fork-lifts/ Houseboat
Reverse System

4 Pin Connector Cable solution system enables easy installation and usage in any places.

The advantages of 4-pin connector cable:

* One cable solution deals with both power and singal transmission. No power cable is needed to connect cameras.
* It will shield vehicle's circuit interference better than normal AV cable.
* Rubber cot is attached to cover the cable connector to avoid water flushing.

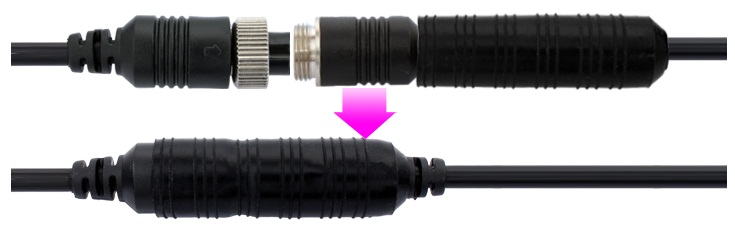

Connector protection by the rubber:

Features:

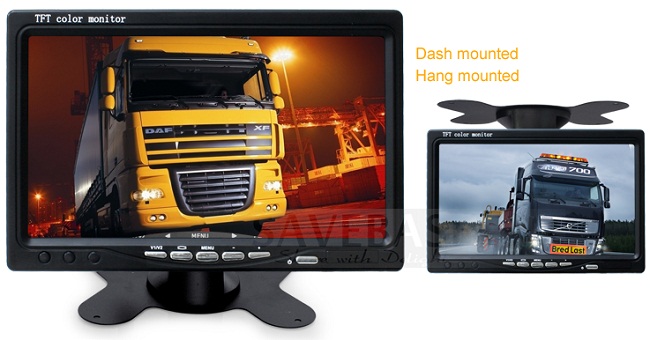

* Monitor can be roof mounted or dash mounted, meeting your special needs.
* Display image can be rotated horizontally and vertically for mirror or normal viewing.
* Monitor will automatically turn on and switch to the rear view camera when the reversing.
* Support two camera video inputs. V1/V2 Selectable.

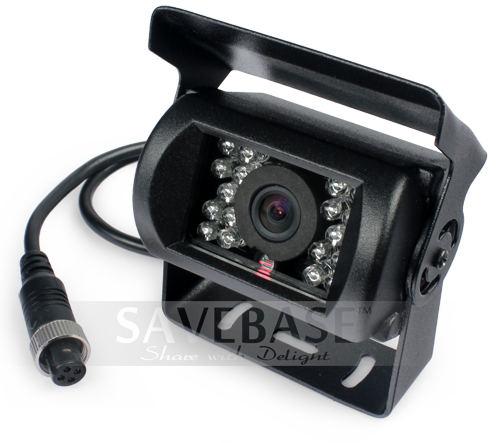

4 Pin Connector Wateproof & Shockproof CCD Camera with Night Vision

IP 67 Standard camera can cope with marine environment.

The difference between CCD and CMOS cameras:
*CCD camera has sharper pictures. It sharpens the focus of picture making it as real as possible.
*CCD lens make clear night vision even in low light environments.

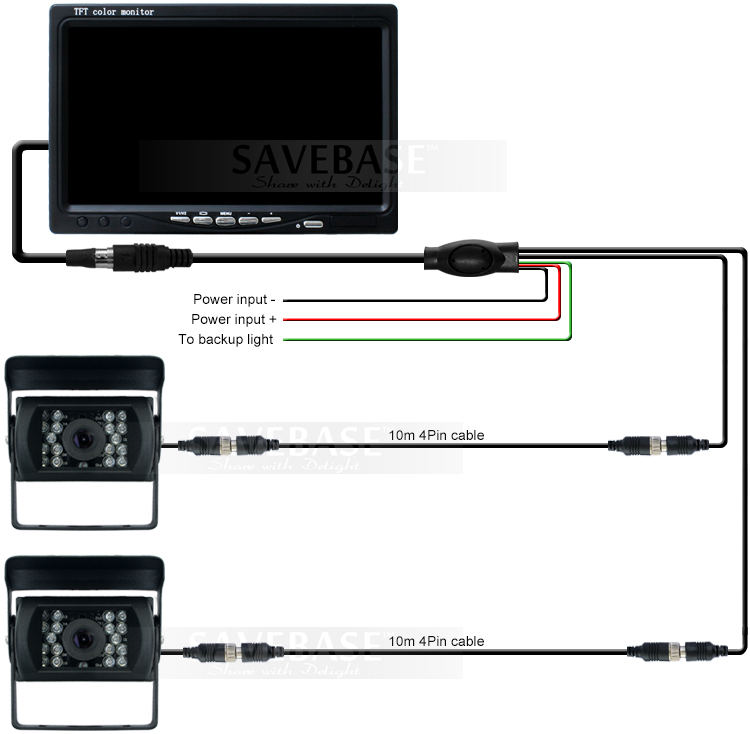

Installation Diagram:

Very easy to install. Won't need power cable for camera.

*2x 10m(33ft) 4-pin shied video cable are included in this package. Extra length video cable is available for purchase. Please contact us for details.
Both camera are Mirror image camera as default. If you need non-mirror please leave a message to us.

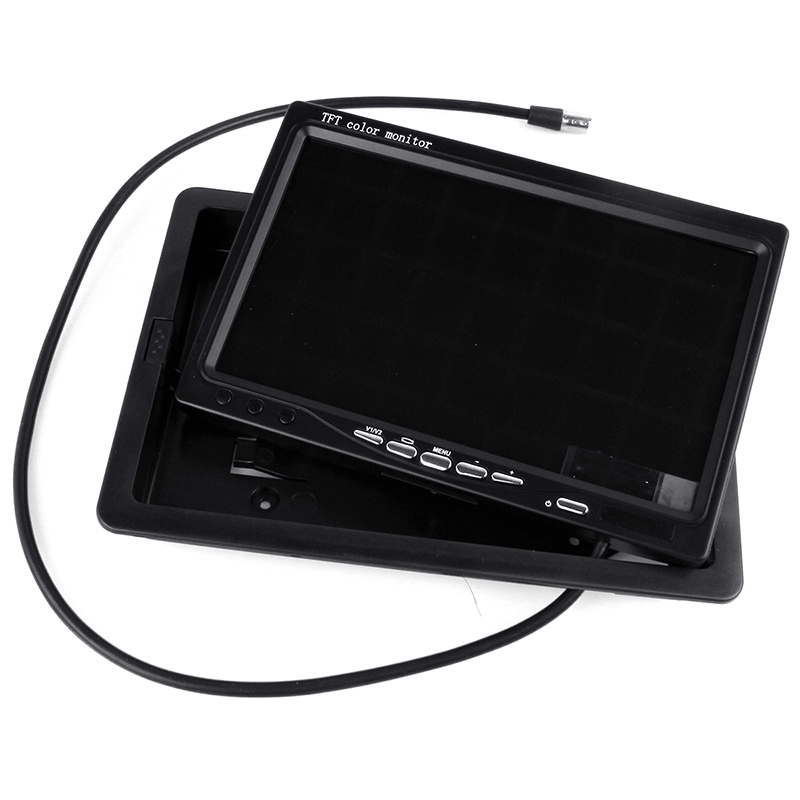

A mounting frame also comes with the kit.

FAQ:

1. Can two 4-pin cables connect together to one?
YES.

2. If you need car charger for monitor, we can offer it (adding USD$ 8) and please check the connection diagram here.

Due to Airline restrictions, batteries for the remote control are not included.

ΔTOP

Rear View Camera

Image Type: 1/4 "SHARP Color CCD

Horizontal Resolution:420TV Lines

Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V)

Usable Illumination : 0Lux (Built in 18pcs IR LED's for Picture Support in the Dark)

Free viewing angle: 120° (diagonally)

Waterproof: IP67

Shockproof: 10G

Video Output:1.0Vp-p75Ω

Automatic Heating Below +10oC

Free Operating Voltage DC12 Volts

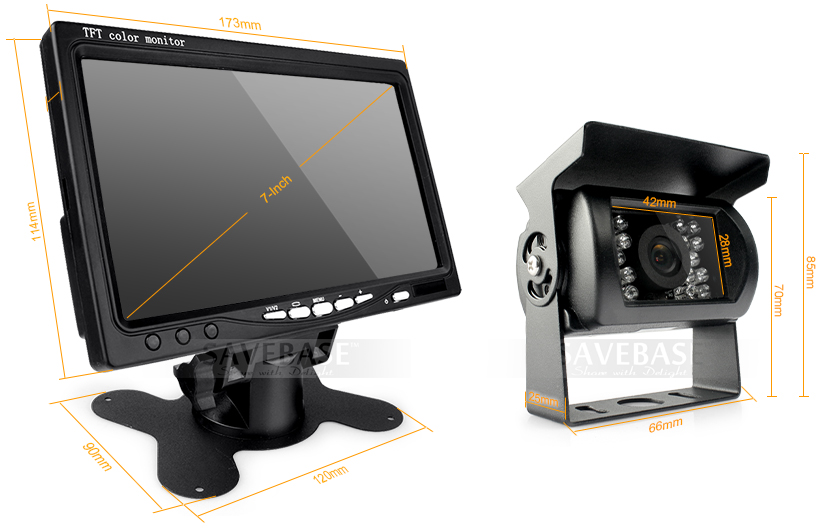

Dimensions: 89(W) x 53(H) x 48(D) mm (without mounting)

7 inches TFT LCD Color Monitor

OSD MENU Set Camera Mirror/Normal image

Color System:PAL/NTSC (AUTO)

Display Resolution: 480(H) X 234(V) dot

Support Two Camera Video Inputs

Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65

Brightness (cd/m2): 250

Operating temperature: -20℃ to +70℃

Storage temperature: -30℃ to +80℃

Free Operating Voltage DC12V

ΔTOP

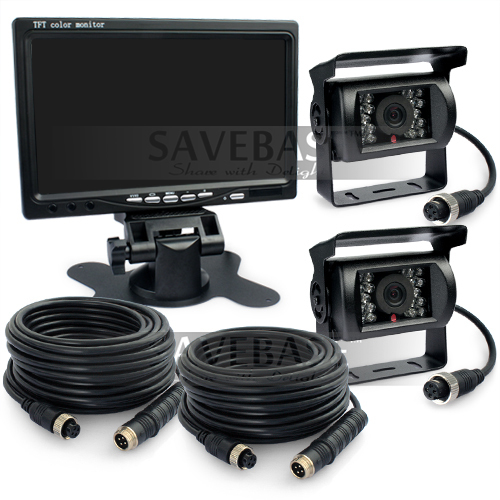

1 x7'' TFT LCD Monitor (DC 12V)
2 x Rearview camera (DC 12V)
1 x Mounting Plate
1 x Remote Controller (batteries are not included)
2 x 10m 4-pin cable
1 x Instruction
