Before Ordering, pls send us your original car bracket mirror bottom, so that we can help check a customized bracket for your car.
Thank you! :)
General Description:
4.3 inch TFT LCD Color Mirror Car Rearview Monitor + CMOS High Resolution Backup rear view Camera License Plate Night Vision 6LED
4.3 inch TFT LCD Color Mirror Car Rearview Monitor + CMOS High Resolution Backup rear view Camera License Plate Night Vision 6LED
Factory Mirror Upgrade with a 4.3 inch High Resolution LCD Monitor hidden behind mirror.
With the mirror display, a 4.3” screen showing what is behind the vehicle when reverse gear is engaged.
The driver can see if children, adults, pets or objects are in the "danger" zone.
It works in the same way as similar mirrors/that are available as original equipment on a small number of new cars recently introduced to the market.
Key Feature:
1. Automatic activation when selecting reverse
2. Auto adjusting brightness of 4.3" monitor display
3. High resolution(Digital) 4.3 inch LCD monitor
4. High brightness 1000cd/㎡
5. Original equipment look & quality
6. Glare surpressing mirror

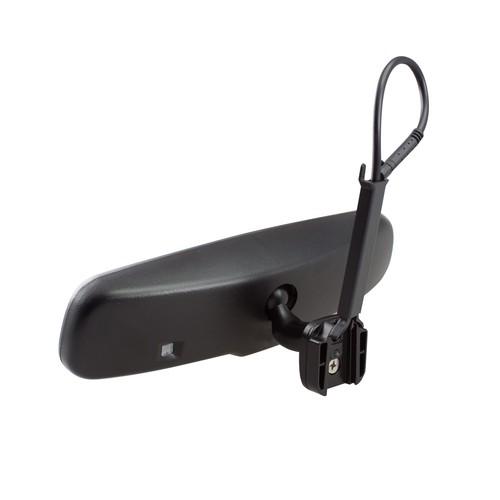

7. Installs using original windscreen mount
8. Wire casing for neat looking and easy fitting
9. Two Video Inputs: AV1 to VCD/DVD/TV/GPS and etc (defaulted) AV2 to backup camera
12. Adopt digital high-resolution imaging process: 600 TV lines
13. Extra-low illumination of 0.3 Lux for clear night vision
14. Automatic white balance function
15. Viewing angle: 170° (Diagonal)
16. Water-proof, shock-proof and anti-jamming functions
17. Pin nailed installation, hiding mounting at upper side of license-plate
18. Automatically switch on when reverse gear is engaged.
Specification of Mirror
Specification of Mirror
Panel: TFT LCD (Digital)
Power Supply: DC12V
Screen Size: 4.3”
Brightness: 1000cd/m2
Resolution: 480*272
OSD Menu: Available
Aspect Ratio 16:9
Signal System: PAL/AUTO/NTSC
Power Consumption: 3.6W(Working) 0.3W (Standby)
Two Video Inputs:AV1-DVD etc.AV2-Camera
Specification of Camera:
Technical Specifications:
Electric Shutter: NTSC :720Lines.25Field/sec/ PAL :625Lines.25Field/sec
Effective pixels: NTSC: 720X 480 / PAL :720X 576
Minimum illumination: 0Lux with led on
Viewing angle: 170 degrees (diagonal)
S/N ratio: >46.4dB (AGC-OFF)
Video output: RCA connector, 1.0vp-p, 75ohm
Current consumption: ≤130mA
Power supply: DC 8V-16V
Operating temperature: -30 to 65 degrees centigrade, RH95% Max.
Storage temperature: -35 to 70 degrees centigrade, RH95% Max.
Other items: automatic white balance, AGC and BLC

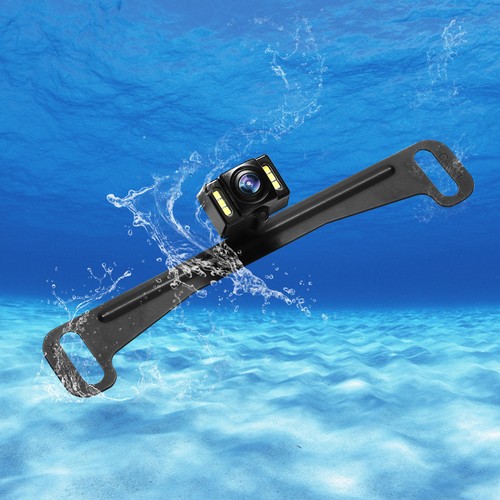

Water-proof: Yes, to IP68 standard
Parking guide line selectable
Adopt digital high-resolution imaging process: 900TV lines
Notice: This version with a strip of Green Wire. If you need the one with guide line, You can cut it off. On the contrary, keep its original appearance.
Adopt digital high-resolution imaging process: 900TV lines
(output is 480TVL.The TVL of Cam1 is up to 900TVL.)
Automatic white balance function
Special waterproof camera lens designed for car
Compatible with any car monitor
Cable Length: 1.5M (the previous one is 0.6m, so this version can fit for more kinds of cars)
Automatic white balance function
Special waterproof camera lens designed for car
Compatible with any car monitor
Cable Length: 1.5M (the previous one is 0.6m, so this version can fit for more kinds of cars)
Technical Specifications:
Sensor: CMOS
Image device: 1/3-inch colour
TV system: NTSC
Resolution: 900 TV lines
Image device: 1/3-inch colour
TV system: NTSC
Resolution: 900 TV lines
(The resolution, which is measured in TV lines (TVL). The TVL of Cam1 is up to 900TVL.
For the different output format, the Cam1 output is 480TVL.But is much more clear than the other brand camera whose original resolution is 480TVL.)
Electric Shutter: NTSC :720Lines.25Field/sec/ PAL :625Lines.25Field/sec
Effective pixels: NTSC: 720X 480 / PAL :720X 576
Minimum illumination: 0Lux with led on
Viewing angle: 170 degrees (diagonal)
S/N ratio: >46.4dB (AGC-OFF)
Video output: RCA connector, 1.0vp-p, 75ohm
Current consumption: ≤130mA
Power supply: DC 8V-16V
Operating temperature: -30 to 65 degrees centigrade, RH95% Max.
Storage temperature: -35 to 70 degrees centigrade, RH95% Max.
Other items: automatic white balance, AGC and BLC
Water-proof: Yes, to IP68 standard
FAQ：

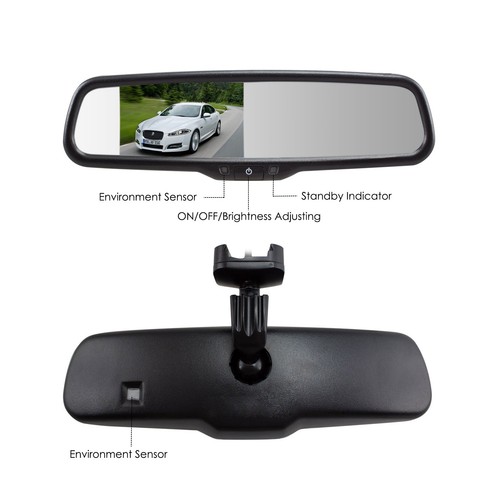

*What is auto adjusting brightness?
The brightness(only for the 4.3" display screen,not for the entire mirror) will change automatically according to the environment light. When the environment light become stronger, the screen brightness will increase accordingly to ensure more distinct image in strong light. When the environment light become weaker, the screen brightness will decrease in order to protect eye against being stimulated due to over-brightness of the screen.
*What is auto adjusting brightness?
The brightness(only for the 4.3" display screen,not for the entire mirror) will change automatically according to the environment light. When the environment light become stronger, the screen brightness will increase accordingly to ensure more distinct image in strong light. When the environment light become weaker, the screen brightness will decrease in order to protect eye against being stimulated due to over-brightness of the screen.

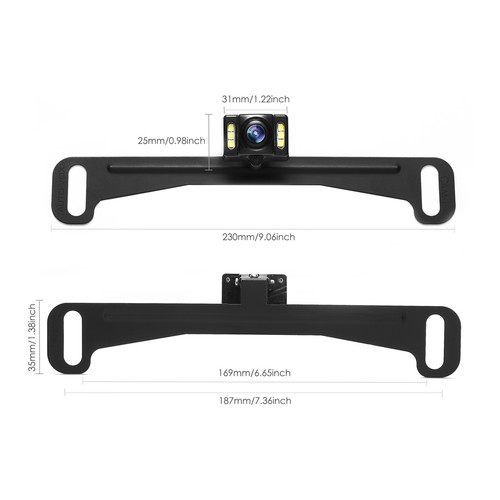

Size & Installation:
Installation Method:

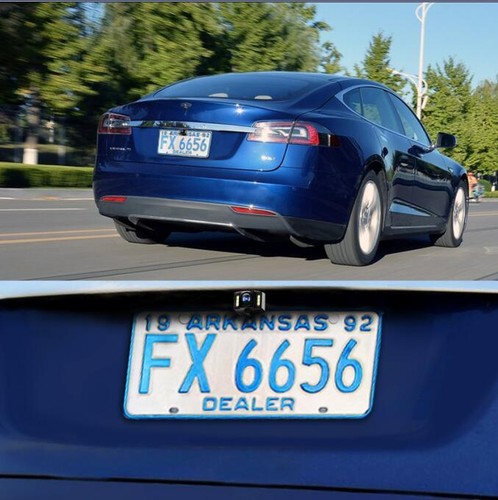

1, Pin nailed installation, hidden installed at upper side of license-plate, need to drill holes.
2, Install it at the place of the license place, no need to drill holes.
Package:
1 x mirror monitor
1 x Power Cable
1 x wires casing kit
1 x CAM 1 Camera
1 x mirror monitor
1 x Power Cable
1 x wires casing kit
1 x CAM 1 Camera
1 x Video Cable
1 x Camera Power Cable
