5″ LCD Display Auto Reverse On Car Rear View Mirror Monitor + Waterproof Mini Color HD CMOS 480TVL Parking Camera
Features:

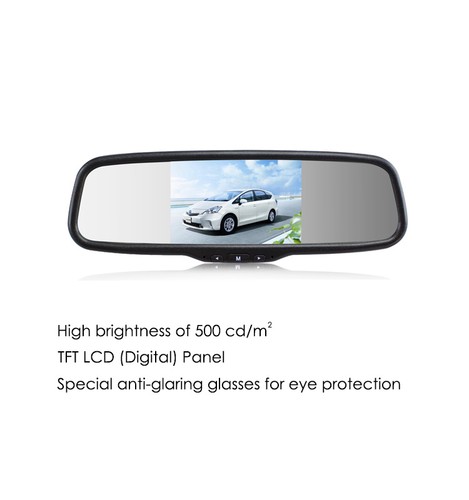

5.0” LCD-TFT Screen Display Rearview Mirror Monitor
High brightness of 500cd/m²
OEM replacement bracket
Two Video Inputs
Automatically switch to rear view system when reversing.
Easy installation
Specification of Mirror:
Panel: TFT LCD (Digital)
Power Supply: DC12V
Screen Size: 5.0"
Brightness: 500cd/m2
Resolution: 480*272

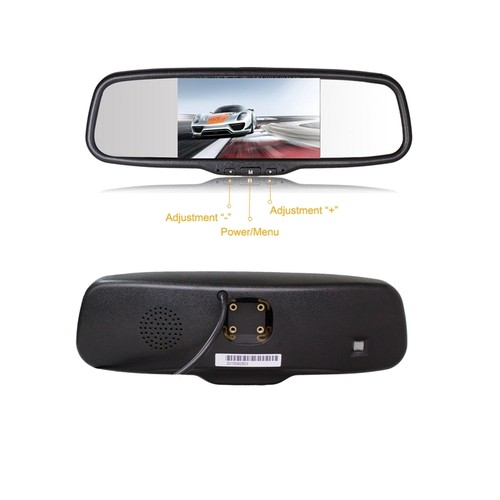

OSD Menu: Available
Aspect Ratio: 16:9
Signal System: PAL/AUTO/NTSC
Power: 3.6W (Working)
Video Input: AV1-DVD, etc.
Consumption: 0.3W (Standby)
(2-Way): AV2-Camera

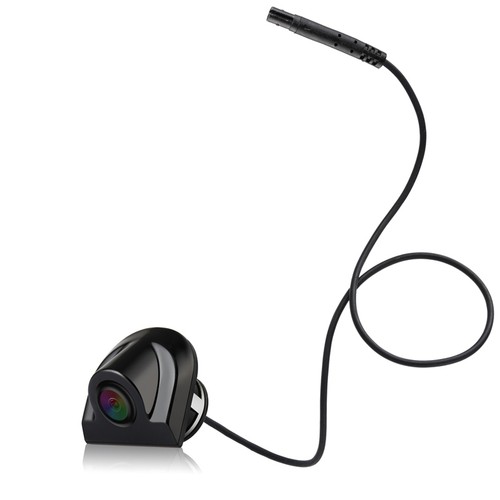

Image device: 1/4-inch colour
TV system: NTSC
Resolution: 480 TV lines
Electric Shutter: NTSC :720Lines.25Field/sec
Effective pixels: NTSC: 720X 480
Minimum illumination: 0.3Lux
Viewing angle: 170 degrees (diagonal)
S/N ratio: >48dB (AGC-OFF)
Video output: RCA connector, 1.0vp-p, 75ohm
Current consumption: ≤120mA
Power supply: DC8V-12V
Operating temperature: -30 to 65 degrees centigrade, RH95% Max.
Storage temperature: -35 to 70 degrees centigrade, RH95% Max.
Other items: automatic white balance, AGC and BLC
Water-proof: Yes, to IP68 standard
Bracket: We have 6 types of brackets (Please choose the proper bracket you want in 12 hours after your payment ,or we will send No.1 universal bracket instead. Thank you)
#1 : Suitable for all cars
Camry.PRADO.Crown.REIZ.Corolla.VIOS.
BUICK Regal.GL8.Ford Mondeo.Focus
etc.
#2 : Suitable for
Honda Accord.FIT.05 Odyssey.Civic.Galant.
Chery A5.08 CITY. FIT.
#3 : Suitable for
VW PASSAT.BORA. NEW PASSAT.SAGITAR.
AUDI.Jetta.Santana.POLO.Skoda
#4 : Suitable for
GM Excelle. SPARK. Lova
#5 : Suitable for
Chevrolet Epica. Chery Cross.
Chery A1. Chery Q6
#7 : Suitable for
HYUNDAI SONATA.ELANTRA.ACCENT.
TUCSON.BUICK LaCROSSE
Package included:
1 x Mirror Monitor with universal bracket
1 x Video Cable
1 x Power cable
