Features:

1）Function-- This kit includes both a new 5th gear lock-nut, and a lock-nut retainer which utilizes the splines of the main shaft to assist in keeping constant tension applied to the 5th gear lock-nut to prevent it from backing off ever again.

2）Easy Installation-- The lock-nut retainer installs on the main output shaft of the transmission. This means you only need to drop the transfer case and can leave the transmission still assembled in the vehicle. The retainer simply slides into place in the shaft, and is kept secure by the transfer case's input shaft.

3）Nice Design-- 4-Tab design completely engages the lock nut with 4-gap design, while 29-Spline body meshes with the main shaft for solid, secure installation

4）Satisfaction Guarantee-- If you're not 100% satisfied with this 5th Gear Lock Nut Retainer Set, simply return it for a full refund in 30 days, guarantee with 1 Years' warranty.

Descriptions:

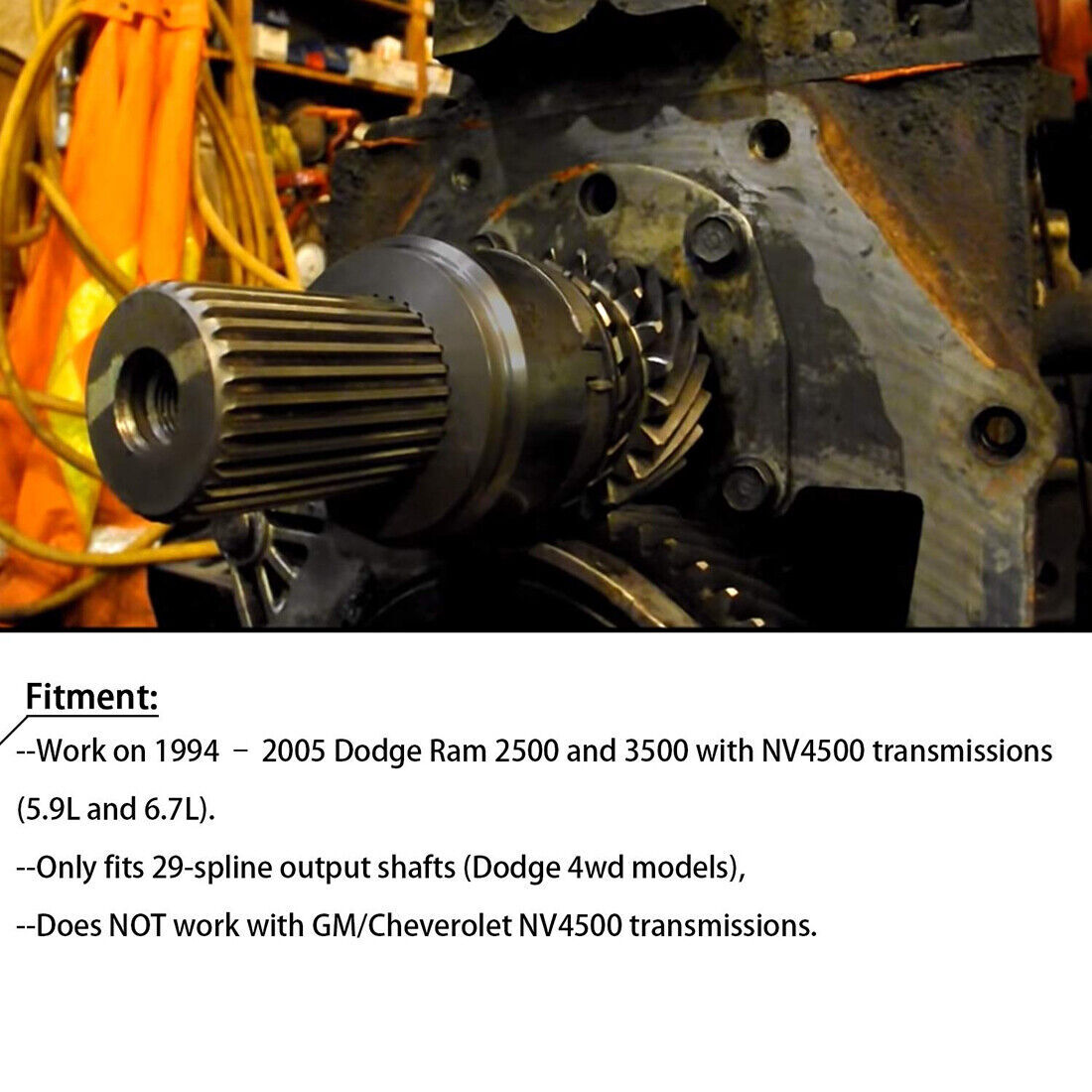

FITMENT
Dodge Ram trucks equipped with 5-spd NV4500 4wd Transmissions.
ONLY fits 29-spline output shafts (DODGE 4wd models)
Does not work with GM/Cheverolet NV4500 transmissions

INSTALLATION
First, Remove transfer case from vehicle, and then remove extension housing from
transmission
Second, Inspect for damage to the main shaft, gears & lock nut
Then, Reinstall the locknut on the shaft. Factory recommended torque is 280 ft. lbs ( real, real
tight, locknut retainer will keep it from loosen again )
Finally, Slide the locknut retainer over the shaft splines and into the correct alignment position of
the locknut (4 Tabs), then tap with a hammer to verify full seated position.

Package included:

2x Set Screws

2x Brass Pucks

1x 5th Gear Nut

1x Spring Washer

1x 5th Gear Lock Nut Retainer
