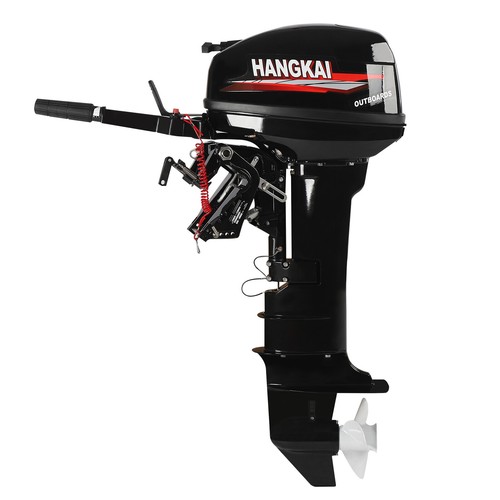

HANGKAI 2 Stroke Outboard Motor Boat Engine Water Cooled System Long Shaft 18 HP

18HP 2-Stroke!! Outboard Motor Gas Powered Boat Engine Long Shaft Water Cooling





NOTE:
Our machines are all without gear oil versions. Please add gear oil to the gears before using the motor and replace gear oil after the run-in period. (If you do not know how to handle this, please contact us). Our outboard motor doesn't with oil of gear, please prepare it by yourself.





Flexible Steering: Forward, neutral and reverse gears, and a 360-degree steering function allow you to flexibly control the direction of the ship.



Easy Speed Regulation: Stepless speed change and constant speed cruise function make it easy for you to adjust the running speed and stable navigation at a constant speed to bring you a more comfortable user experience

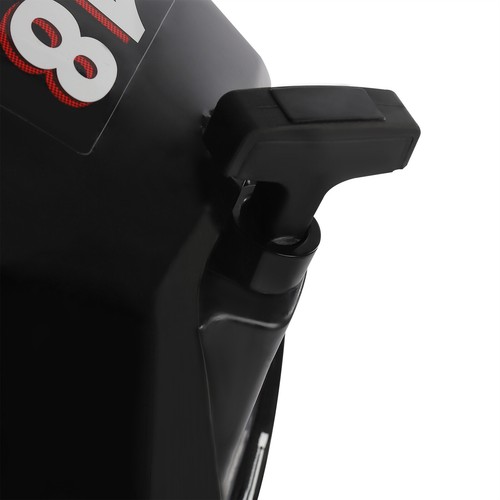

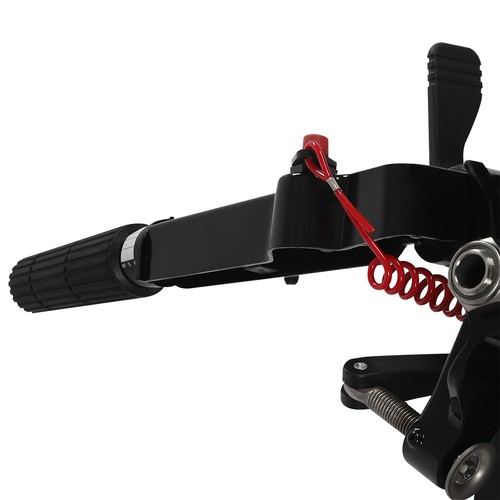

Easy to Operate: The manual start function allows you to operate easily by pulling the start rope and opening the speed switch on the handle. Its long non-slip handle(20 inches in length) is easy to grasp. The red stop button allows you to stop the engine by pressing it for a few seconds.



Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.



Details

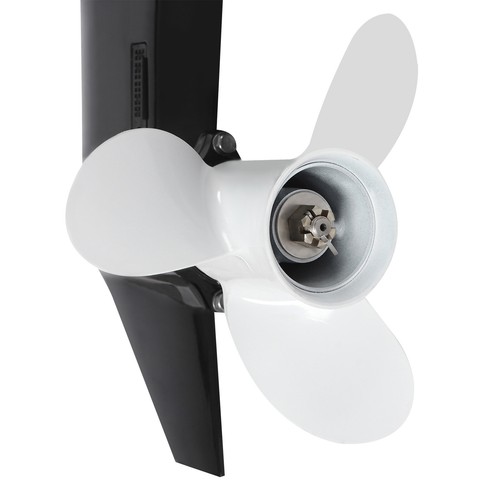

Three-blade Propeller: The three-blades propeller with a streamlined design provides you with greater power.



Silencer Cover: The silencer cover can absorb the noise generated by the fan through the internal sound-absorbing material, thus providing a quieter working environment.



Anti-swirl Plate: The anti-swirl plate can effectively reduce the turbulence of the waves and avoid water-wetting clothes.



Application

This kind of outboard motor is suitable for small ships of different materials (the length of the ship is greater than 3 meters, the net weight of the ship is greater than 60kg, the load of the ship is less than 1000kg), such as rubber boats, iron boats, plastic boats, glass fiber boats, wooden boats, etc. Widely used in fishery, aquaculture, outdoor exploration and other fields.



Gear Oil Filling Method

There is a screw on the gearbox, unscrew the screw to add gear oil. Gear oil is not filled before each machine leaves the factory, so please fill gear oil when using for the first time.  After that, add according to personal use, and check every ten hours.



Specification

Material: Aluminum Alloy

Color: Black

Model: 18HP Horsepower Long Axis

Displacement: 246CC

Gear Ratio: 2.08 (27:13)

Number of Cylinders: 2

Speed: 4500-5500RPM

Gear: F-N-R

Refueling Method: 92 Unleaded Gasoline is Recommended

Oil Tank Capacity: 24L/6.34gal

Load-bearing Capacity: 500-1000kg/1102-2204lbs

Ignition System: CDI

Cooling System: Water Cooling

Control System: Tiller Control

Start System: Manual Start

Propeller Specification: 23.5cm/9.25in (Length) * 20.3cm/8in (Diameter)

Suitable Stern Plate Height: 45cm-55cm/17.7*21.7in

Cylinder Diameter * Stroke: 56mm/2.2in*50mm/2in

Recommended Engine Oil: 2 Stroke Engine Oil

Trim and Tilt System: Manual Tilt

Package Size: 133*71*38.5cm/52.4*28*15.2in

Mixing Ratio: Gasoline: Two-stroke Oil (25: 1 Break-in Period; 50: 1 After Break-in Period)
Net Weight: 42.5kg/ 93.7 lbs
Gross Weight: 48.1kg/ 106.04 lbs
Product Size: 57*27*120cm/22.44*10.63*47.24inch



Package Included

1x Outboard Motor

1x Flameout Rope

1x Oil Pipe

1x Sealing Ring

1x Paper Pad

1x Spark Plug

1x Start Rope

1x Water Pump Impeller

1x Cotter Pin

1x Fuel Tank

1x English Manual

Other Tools





Notes

1. The two-stroke outboard must use a mixture of No. 92 gasoline and two-stroke engine oil.

2. The volume ratio of gasoline and oil during the running-in period of the new machine is 25:1.

3. After the running-in period, the volume ratio of gasoline and oil is 50:1.

4. Special attention: gasoline and engine oil must be pre-mixed and stirred evenly, and then poured into the fuel tank.

5. The outboard motor must be started in water, do not start the engine on shore.

6. Loosen the vent screw on the fuel tank cover counterclockwise when starting.

7. When the outboard motor is started, the emergency flameout rope should be inserted, and the other end should be placed on the wrist or belt.

8. The running-in period is about 10 hours or a month, and during the running-in period, do not drive with a high accelerator.

9. Replace the gear oil after the running-in period, and the second replacement time is after 100 hours or about six months.

10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
