• Features:
  • Size: 12-way screw nut terminal Brand: Vetomile Color: Black Model: 12-Way Fuse Box Product number:CS-664A2 Material: PBT and waterproof and dustproof cover, Nickel-plated copper connection terminal, PPX40 sticker Size: 138.25*85*36.5mm (As picture show) Item Net Weight: 279 g Item Gross Weight: 285 g Input rated voltage: 32V Input rated current: 100A Maximum output current: 30A max per circuit Input wire size: #4-6 AWG Output wire size: #12-16 AWG Main line terminal: M5 threaded stud Single wire terminal: M4 threaded stud LED Indicator: Red LED indicates when fuse is burnout

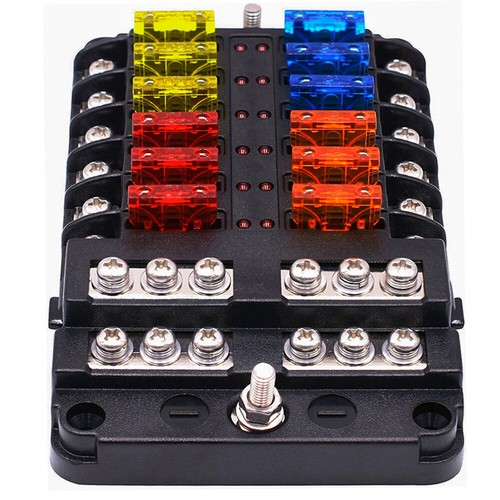

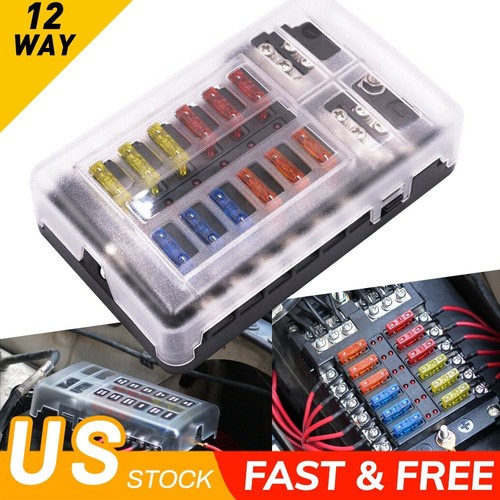

  • 12V 12-Way ATC ATO Blade Fuse Box Holder Power Block For Car RV Trailer Boat

    Features:

    Size: 12-way screw nut terminal
    Brand: Vetomile
    Color: Black
    Model: 12-Way Fuse Box
    Product number:CS-664A2
    Material: PBT and waterproof and dustproof cover, Nickel-plated copper connection terminal, PPX40 sticker
    Size: 138.25*85*36.5mm (As picture show)
    Item Net Weight: 279 g
    Item Gross Weight: 285 g
    Input rated voltage: 32V
    Input rated current: 100A
    Maximum output current: 30A max per circuit
    Input wire size: #4-6 AWG
    Output wire size: #12-16 AWG
    Main line terminal: M5 threaded stud
    Single wire terminal: M4 threaded stud
    LED Indicator: Red LED indicates when fuse is burnout


    Package Includes:
    1 x Fuse box with cover
    6 x 20A fuse
    6 x 15A fuse
    6 x 10A fuse
    6 x 5A fuse
    4 x self-tapping Screws
    1 x Sticker


    The  Scope of Product Installation:

    It can be installed in Cars, RV, Bus, Yacht, Boat, etc.


    The Scope of Product using:

    It can be directly connected to the line of any electric appliance on the car/ship [such as: roof lamp, car headlight, sight width lamp, fog lamp, warning light, car refrigerator, car charger, car fan, car TV, etc.]


    Warm Tip:

    If the indicator emits red light which means the fuse is already blown so you need to change a new one.




    Fuse Function:

    When the circuit is faulty or abnormal, the current is constantly rising, and the increased current may damage some important devices or valuable devices in the circuit, and may also burn the circuit or even cause a fire. The fuse protects the electronic device from overcurrent and also protects the electronic device from serious damage caused by internal faults. Therefore, each fuse has a rated specification, and the fuse will blow when the current exceeds the rated specification. If the fuse is correctly placed in the circuit, the fuse will cut off the current when the current abnormally rises to a certain height and a certain temperature, thereby protecting the safe operation of the circuit.


    Product Advantages:

    The product adopts PBT anti-flame-resistance, high-low temperature and environmental protection materials, which fully meets the requirements of the fuse holder must have good mechanical strength, insulation, heat resistance and flame retardancy. What`s more, It should not cause breakage, deformation, combustion and short circuit during use.
    All busbars and fuse clips are nickel plated copper for corrosion resistance and optimum conductivity
    All fasteners are made of stainless steel, the fuse box is input, and the output end is fixed by tightening screws, which can be installed more quickly, and the safety box is fixed by self-tapping screws, which makes installation easier and safer.
    The product has a red LED design, corresponding to each fuse connected to the appliance, when the fuse is disconnected, the red light will be on, you can immediately know which fuse is broken, convenient and timely processing
    The product gift sticker can be attached to the electrical appliance we have connected according to the name of the sticker. When the fuse is broken and the red light is on, we can distinguish which appliance has a problem at the first time. save time and energy
    The product is delivered with double fuse. When applied, the fuse is burned off, it can be replaced immediately from the spare fuse, and the fuse is sent multiple Amp, and the fuse of Abe can be selected according to the current appliance.


    Item Specifics
    Brand Unbranded
    Manufacturer Part Number Does Not Apply
    Type Fuse Holder
    Color Black
    Model 12-Way Fuse Box
    Material Metal
    Size 138.25*85*36.5mm
    Maximum output current 30A max per circuit
    Input wire size #4-6 AWG
    Output wire size #12-16 AWG
    Input rated voltage 32V
    Input rated current 100A
    Warranty 1 Year
    Style 6-way screw nut terminal
    Single wire terminal M4 threaded stud
    Main line terminal M5 threaded stud
