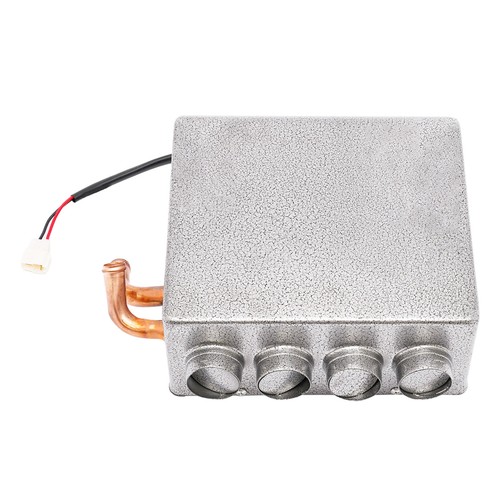

Description:
Under dash heater is a kind of energy-saving heater that functions in exactly the same way that your factory cooling system used to. Hot coolant from the engine passes through the heater core, the blower motor forces air through the core, and warm air is expelled into the passenger compartment of your vehicle.
No fuel consumption, can provides more heat output than battery-powered heater in low electricity consumption
Features:
1.Energy-efficient heater, can provides more heat output than battery-powered heater in low consumption
2.Make full use of hot coolant, functions in the same way as engine cooling system, environmentally friendly
3.High efficient copper pipe heating core helps to warm up the air through the core in seconds
4.Powerful blower motor and 4 holes air outlets provides strong warm air flow to passenger compartment
5.Comes with mounting brackets and speed control switch, support under dash installation
Specification:
Color: Grey
Optional Voltage: 12V
Power supply: 8A
Material: Copper, Iron
Weight: about 3KG
Size: 23 x 21 x 10cm/9.3" x 8.5" x 3.9"
Fitting required - 5/8'' (16mm) inner diameter water hose
Applicable models: trucks, minivans, excavators, harvesters and so on.
Instructions:not included,please contact seller if you need help
INSTRUCTIONS:
1、Make sure the direction of flow through the cooling system
2、Connect the hot coolant hoses to the inlet and outlet of heater
3、Wire heater and switch into your vehicle’s electrical system
The red wire of switch is connected with positive pole of power supply and heater
The blue wire of switch is connected with negative pole of heater
The black wire is connected with negative pole of power supply
NOTE:
1.In order to install the heater, you have to connect heater to your engine cooling system
2.It also has a blower that need to be wired into your vehicle’s electrical system for blowing warm air
Package Included:
1pcs x heater
4pcs x Black tubes
2pcs x Tee
2pcs x mounting brackets
1pcs x switch
2pcs x straight fittings
7pcs x 16-25mm hose clamps
