Application
This Product Can Be Widely Used in Motorcycles, Atvs, Go-karts, Tricycles, Etc, As Long As the Crankshaft Matches.
Specification
Engine Type: Single Cylinder, 4 Stroke, Horizontal, Two-stage Transmission
Other Features: 3 Forward Gears and 1 Reverse
Material: Aluminium, Cast Steel
Engine Cooling Type: Air Cooling
Ignition System: Cdi (Not Included)
Start Mode: Kick-starter; Electric
Clutch Type: Manual Wet Multi-disc
Transmission: 4-Speed, Manual Gear Shift
Displacement: 125cc
Minimum No-load Stable Speed: 1400 (1 ± 10%) R / Min
Compression Ratio: 8.7:1
Bore Stroke: 54*54mm/2.12*2.12inch
Max Power: 5.8kw/H
Max Torque: 8.0n-m
Max Rotating Speed: 7500rpm
Horsepower: 7.64hp
Air Inlet and Exhaust Valve Clearance: 0.05 ~ 0.07 Mm (Cold State)
Min Fuel Consumption: ≤367g/Kw.h
Spark Plug: A7tc
Carburetor Type: Pz19 (Not Included)
Min Stable Idle Speed: 1500r/Min±150r/Min
Primary Reduction Ratio: 3.722
Transmission Ratio of Each Gear: First Gear: 3.272; Second Gear: 1.938; Third Gear: 1.350; Fourth Gear: 1.043
Lubricant Capacity: 900ml/0.23 Gallons
Lubricant Type: Sl10w/40 (Not Included)
Crankshaft Diameter: 1.5cm/0.59inch
Crankshaft Length: 0.4cm/0.15inch
Gasoline Type: ≥ 92 #
Gross Weight: 19.45kg/42.87lbs
Net Weight: 18.15kg/40.01lbs
Product Size: 45*30*25cm/17.71*11.81*9.84inch
Package Size: 51*39*33.5cm/20.07*15.35*13.18inch

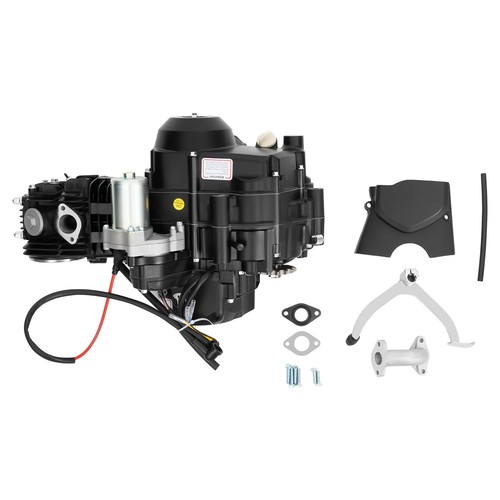

Package Included
1*Atv Motor Engine
1*Gearshift Lever
1*Chain Cover
1*Intake Manifold
2*Intake Gaskets
All Accessories for Assembly
Description
If You Are a Driving Enthusiast Who Loves Freedom and Pursues Speed and Passion, Our 4-Stroke Atv Motor Engine Will Be Your Ideal Choice. Its Excellent Performance and Stable Power Output Make Your Driving More Enjoyable and Comfortable. Buying This 4-Stroke Atv Motor Engine Means Choosing a High-quality, High-performance, and Safe Driving Experience.
Key Features
Strong Power: This Atv Motor Engine Boasts a Robust 7.64hp Horsepower, a Displacement of 125cc, and a Max Rotating Speed of 7500rpm, Which Provides You with Strong Power and Ensures That Your Drive Will Be Very Smooth and Powerful.
Durable and Sturdy: the Engine Is Equipped with Premium Aluminum and Cast Steel, Ensuring Superior Performance and a Longer Lifespan and Adapting to Complex Environments and Conditions.
Effective Cooling System: by Adopting an Air Cooling System, the Temperature of the Engine Can Be Quickly Reduced, Effectively Preventing Overheating and Ensuring Smooth and Long-lasting Driving.
Adjustable Speed: Its 4-Speed Manual Transmission Provides You with High-precision Gear Shifting Control, so It Allows You to Easily Adapt to Various Changes. It Makes Your Driving Experience More Exciting Under Different Road Conditions.
Easy to Operate: the Cdi Ignition System (Not Included) Leads to Higher Energy and Ignition Efficiency. so You Can Start the Motor Engine Quickly and Safely.
Easy to Install: Our Atv Motor Engine Is Pre-installed and You Only Need to Spend a Little Time and Effort to Complete the Remaining Parts, Enjoying a Sense of Achievement!
Closed Design: the Closed Design Effectively Prevents Dust, Water, Oil, Etc. from Entering the Machine, While Minimizing the Need for Daily Maintenance As Much As Possible.
Protective Packaging: This Product Comes in a Custom Foam That Resists Common Compression and Falls to Prevent Product Damage in Transit.
Details
Lubricating Oil Filter: It Can Help Filter Solid Stains from Lubricating Oil, Largely Reducing Wear and Prolonging the Engine Service Life.
Gearshift Shaft: It Can Control the Vehicle's Speed to Suit Different Usage Scenarios.
Shockproof Installation Hole: It Is Used to Install Shock Absorbers to Reduce Vibration During Driving, Thereby Improving Its Driving Comfort.
Forged Crankshaft: It Adopts a High-quality Metal Design to Ensure High Safety and Stability During Operation.
Clear Wires: the Different Wires Have Different Colors, Thus Easily Distinguishing and Connecting Them Without Confusion.
Notes
- Professional Installation Is Highly Recommended.
- Please Allow the Slight Color Difference Caused by the Shooting Light and 1-3cm Error Due to Manual Measurement, and Make Sure You Do Not Mind Before You Order.
