Detail

Working Temperature of the Oil pump:: -40℃~+80℃

 Item Size: 225*175*95mm

 Packing size： 470 * 360 *180mm

Custom Bundle: Yes

Rated Voltage: 12V

Bundle Description: Just like the picture

Material: Metal & Plastic

Thermal power output: 5KW

Fuel consumption: 0.42l/h

Fuel: Gasoline

Heating method: heat conduction coolant, heating for the heating engine

Professional installation required

Switch type: LCD Switch

Sub-Type: Heater

Applications：: Trucks, Van, RV Trailers, Cars, Motorhomes, etc

SPECIFICATION

    Thermal power output: 5KW

    Fuel consumption: 0.42l/h

    Fuel: Gasoline

    Rated voltage: 12V

    Service temperature: - 40 ° C-80 ° C

    Heating method: heat conduction coolant, heating for the heating engine

    Size：225*175*95mm

    Packing size： 470 * 360 *180mm

    N. W./G.W.: 2.3KG/ 6.3kg

Features:

1. In the cold winter, you can warm up the engine and cab before getting on the car to drive away the severe cold. Improve the driving environment and no longer need a warm store.

2. The water heating type parking heater uses automobile coolant to exchange heat, preheats the engine and the cab, solves the problem of difficult engine startup at low temperature, greatly reduces air-cooled wear caused by low temperature startup, and extends engine life by more than 30%.

3. Save fuel. Compared with cold-start engine preheating, the water heating parking heater preheating consumes less fuel.

Applicable models:

1. Various types of cars

2. New energy electric vehicles

3. Agricultural work machine vehicles

4. Ships, yachts, RVs and other vehicles

Installation safety instructions:

1. The placement of the water heating parking heater: It is necessary to prevent the surrounding objects of the heater from being affected or damaged by high temperature.

2. Exhaust gas discharge system: When installing the exhaust gas discharge port, the exhaust gas must be prevented from entering the heated space through the ventilation device. The exhaust port must avoid flammable and explosive materials, and avoid heating or igniting combustible materials on the ground.

3. Combustion-supporting air inlet: do not suck in the combustion-supporting air used for the heater combustion from the heating chamber. When installing the air inlet, pay attention that it cannot be blocked by other objects.

Operation safety instructions:

The following measures are not allowed to be taken during the use of the product:

1. Freely change the key parts of the heater:

2. Violation of the specifications or requirements stated in this manual during installation and operation:

3. Only original accessories and original accessories are allowed to be used during installation or maintenance:

4. It is not allowed to use this heater in an environment that easily forms flammable vapor or dust, such as:

Fuel warehouse, carbon storage warehouse, timber warehouse, granary, etc.

5. The heater must be turned off when refueling:

6. When the heater is working, it is not allowed to stop the heater by forced power off.

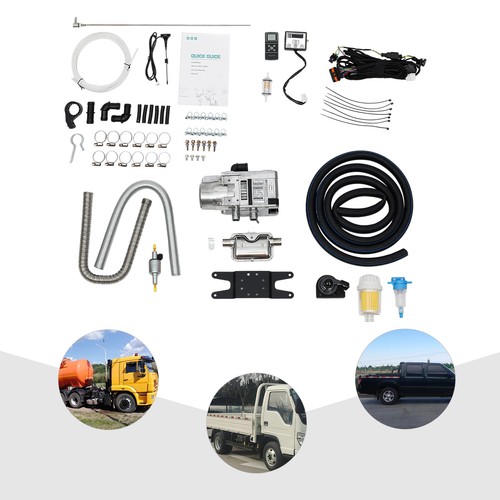

Packing :

    1X WATER PARKING HEATER.

    1X AUTO SWITCH AND REMOTE CONTROL (Batteries NOT INCLUDED).

    1X WATER PUMP.

    1X WIRING HARNESS.

    1X TUBE.

    1X OIL PUMP.

    1X PUMP HOLDER.

    1X FUEL FILTER.

    1X OIL TUBE.

    1X BIG ELBOW.

    1X SMALL ELBOW.

    1X AIR INLET HOSE.

    1X EXHAUST PIPE.

    1X EXHAUST SILENCER.

    1X HOSE HOLDER.

    1X CROSS .

    1X AIR FILTER.

    6X SHORT PIPE.

    1X OIL EXTRACTOR.

    12X HOSE CLAMPS.

    12X SMALL HOSE CLAMP.

    5X SCREWIV .

    4X SCREW .

    1X IRON STENT.
