Warranty: 1 Year
Compatibility Chart??
1, You can distinguish specific model of an automobile by VIN(Vehicle Identification Number).
2, VIN(Vehicle Identification Number) consists of total 17 English letters and arabic digits.
3, VIN does not include the letters I (i), O (o), and Q (q) (to avoid confusion with numerals 1 and 0).
Mercedes-Benz GL-Class
GL320 Bluetec 4Matic Sport Utility 4-Door 3.0L 2009
GL320 CDI Sport Utility 4-Door 3.0L 2007-2008
GL350 Bluetec 4Matic Sport Utility 4-Door 3.0L 2010-2012
GL450 Base Sport Utility 4-Door 4.6L 2007-2012
GL450 Base Sport Utility 4-Door 4.7L 2007-2009
GL550 Base Sport Utility 4-Door 5.5L 2008-2011
Mercedes-Benz M-Class
ML320 CDI Sport Utility 4-Door 3.0L 2007-2008
ML350 4Matic Sport Utility 4-Door 3.5L 2006-2011
ML350 Base Sport Utility 4-Door 3.5L 2006-2007 2009-2011
ML350 Bluetec 4Matic Sport Utility 4-Door 3.0L 2010-2011
ML350 Introduction Sport Utility 4-Door 3.5L 2006
ML350 Lujo Sport Utility 4-Door 3.5L 2008-2009
ML350 Premium Sport Utility 4-Door 3.5L 2006
ML350 Sport AMG Sport Utility 4-Door 3.5L 2010-2011
ML350 Sport AMG Sport Utility 4-Door 5.5L 2010-2011
ML450 Hybrid 4Matic Sport Utility 4-Door 3.5L 2010-2011
ML500 Base Sport Utility 4-Door 5.0L 2005-2007
ML500 Introduction Sport Utility 4-Door 5.0L 2006
ML500 Premium Sport Utility 4-Door 5.0L 2006
ML500 Special Edition Sport Utility 4-Door 5.0L 2005
ML550 Base Sport Utility 4-Door 2008-2011
Platform Drive Layout:
Base Model-Rear Wheel Drive Layout
4Matic Model-Four Wheel Drive Layout
Generation & Evolution:
Mercedes-Benz GL-Class
X164 First generation (2007-2012)
X166 Second generation (2013-present)
Mercedes-Benz M-Class
W163 First generation (1997-2005)
W164 Second generation (2005-2011)
W166 Third generation (2011-2019)
W166 Sport Utility
C292 Coupé Version
W167 Fourth generation (2019-present)
Warning & Notice:
Vent all air pressure from the air suspension system prior to disconnecting or removing any air suspension components. It is dangerous to remove air suspension components while under pressure. Failure to follow this instruction may result in serious personal injury.
Any air spring which is unfolded must be refolded prior to being installed in a vehicle. Refer to the procedure. An incorrectly folded air spring could rupture, altering the handling characteristics of the vehicle. If a vehicle has been driven with an incorrectly folded air spring, a new air spring must be installed. Failure to follow these instructions may result in serious injury to vehicle occupant(s).
Failure to observe the following instructions may result in a sudden failure of the air spring or suspension system.
Any rear spring which is unfolded must be refolded prior to being installed in a vehicle.
The air spring refolding procedure should only be used for an air spring which has never supported the vehicle's weight while in the incorrectly folded position.
Incorrectly folded air springs found on vehicles during pre-delivery inspection or after use must be installed new.
Do not attempt to inflate any air spring which has been collapsed while uninflated from the rebound hanging position to the jounce stop.
When installing a new air spring, care must be taken not to apply a load to the suspension until springs have been inflated using the air spring fill procedure.
After inflating an air spring in the hanging position, it must be inspected for correct shape.
1.NOTE: The vehicle must be positioned on a suitable lifting device prior to deflating the air suspension system.
With the vehicle in NEUTRAL, position on a hoist until the wheel and tire assemblies are slightly above the ground.
2.Using the scan tool, vent the air springs.
3.Remove the air spring retainer.
4.Detach the air spring from the rear axle.
5.Remove the air spring in the following sequence.
1.Disconnect the air spring solenoid electrical connector.
2.Compress the quick connect locking ring and pull out the air tube.
3.Remove the air spring.
Note Before Purchase??
- If you have a question about a part you should contact us before buying. Is proud to offer you the best price and fastest service for all your aftermarket parts needs.
- Please double confirm the compatibility as well as the OEM number before purchasing.These air suspension solenoid valves are aftermarket parts. They will replace the original ones.If you are not sure whether our parts fit you should contact us before buying,we will confirm for you.
- ?Instruction is not included. If you are not professional, please ask your mechanic to fix it.Professional installation is recommended.?
- Contact us please for whatever we can help.
- 1 year warranty for any manufacture defect.Please provide photos or videos to apply for warranty.
Please inspect this part carefully prior to installation and contact us with any questions before attempting to install it.
- To ensure that the new Air Suspension Solenoid Valve works reliably, a new relay must be used before the Air Suspension Solenoid Valve is installed.
OEM Part Number:

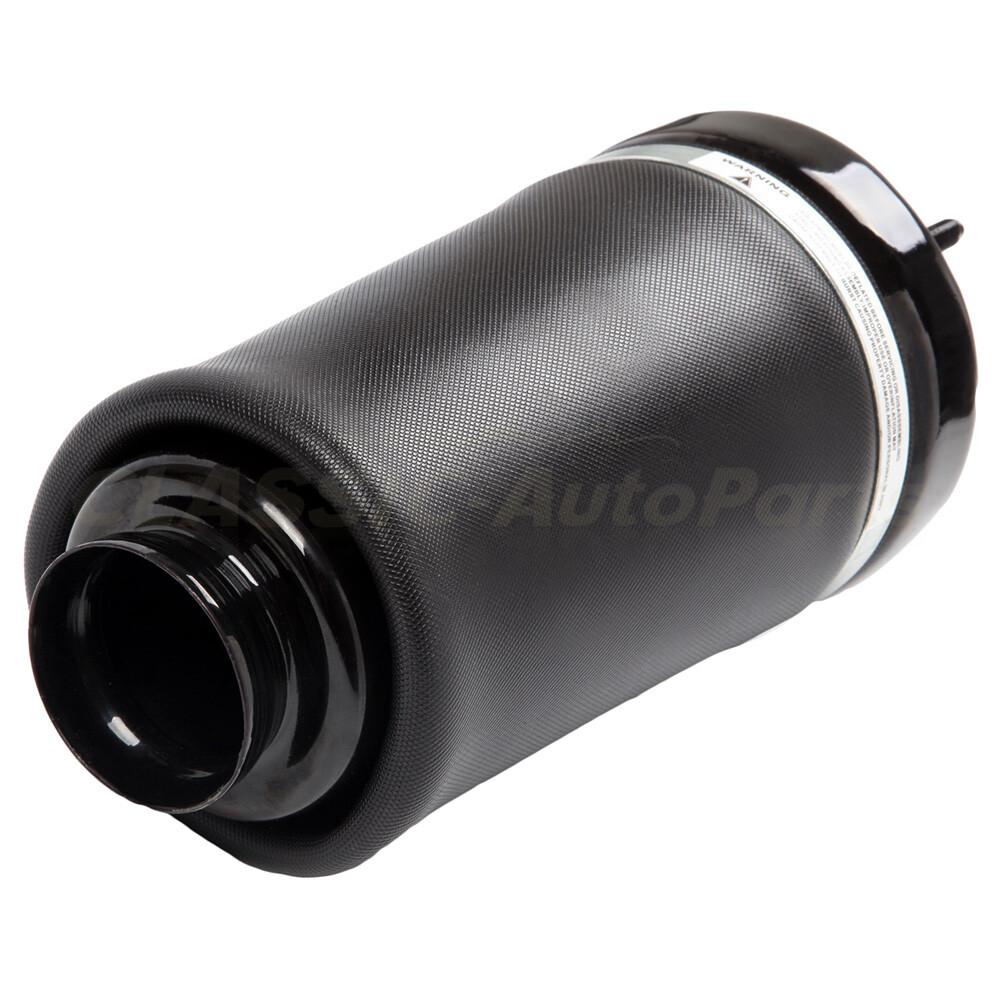

Front Air Suspension Spring:1643201213,1643204313,1643204413,
1643204513,1643204613,1643205813,
1643205913,1643206013,1643206113

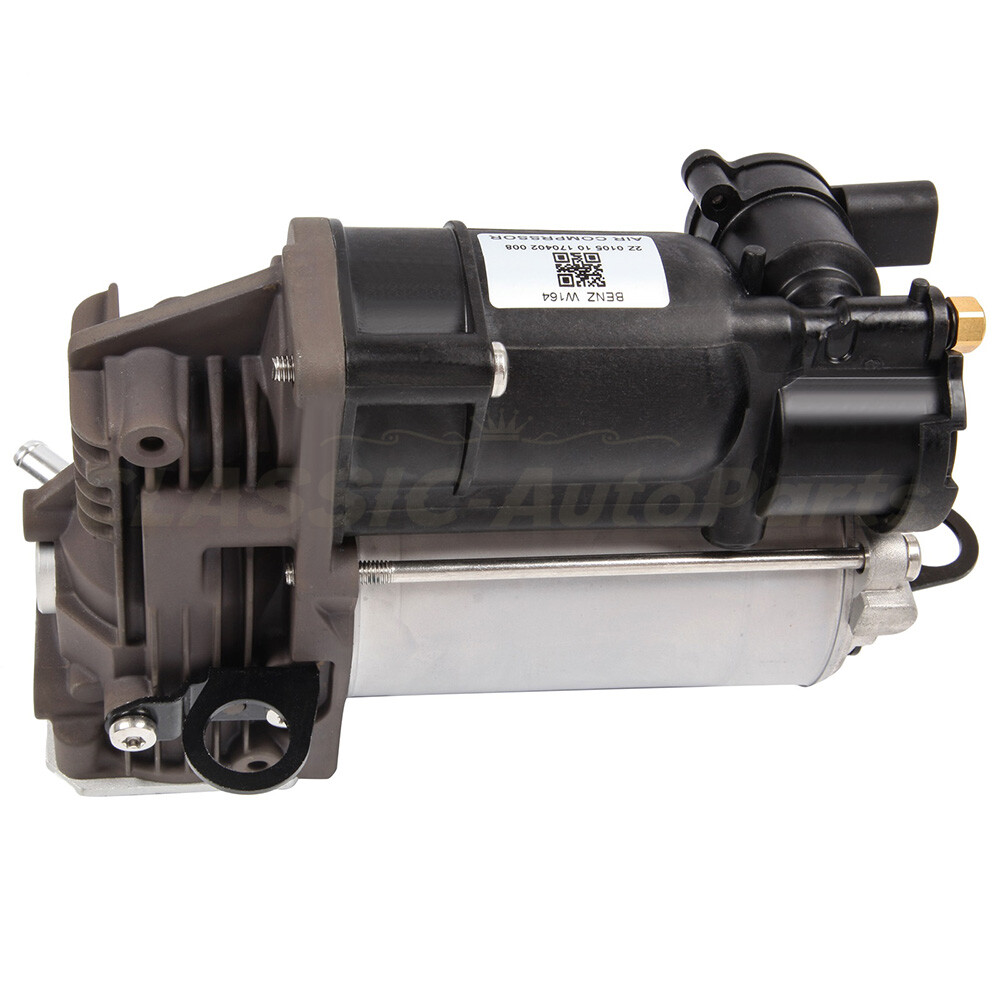

Air Suspension Compressor Pump:1643200004,1643200204,1643200304,1643200504,1643200904,1643201204
Item Specifications:
- Key Words: 3PCS Front Air Suspension Spring Bags & Air Suspension Compressor Pump For Mercedes M-Class W164 ML320 ML350 ML450 ML500 ML550 GL-Class X164 GL320 GL350 GL450 GL550
- Package Includes: 2PCS Front Left & Right Air Suspension Spring Bag And 1PC Air Suspension Compressor Pump
Notes: Please double confirm the compatibility as well as the OEM number before purchasing.
Instruction is not included. Professional installation is recommended.
