2 Stroke 3.5HP Outboard Motor Boat Engine w/Water Cooling Heavy Duty + tool bag
welcome~




Technical Parameters And Specifications

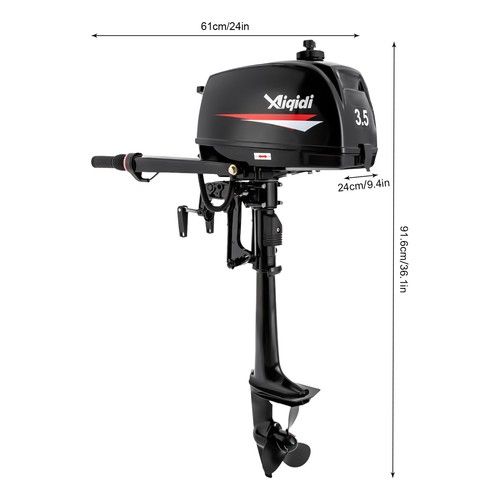

Dimension:
Overall length:610mm(24inch)
Overall width:240mm(9.4inch)
Overall height :916mm(36.1inch)
Transom height:417mm(16.4inch)

Performance:

Full throttle operating range:4500-5000 r/min
Maximum output:2.5KW@4500r/min
T3.5  3.5hp@4500r/min
Idling Speed:1150±50r/min

Engine:
Type:2 stroke S
Displacement:60.4cm3
Bore x Stroke:45.0x38.0mm
Ignition system:CDI
Spark plug:E5RTC
Spark plug gap:0.6-0.7mm(0.024-0.028inch)
Control system:Tiller
Starting system:Manual
Starting carburetor system:Choke valve

Drive Unit:
Gear positions:Forward
Gear ratio:2.08(27/13)
Trim and tilt system:Manual tilt
Propeller mark:A
Fuel and oil:
Recommended fuel:Regular unleaded gasoline
Fuel tank capacity:1.3L
Recommended engine oil:2 stroke outboard motor oil
Fuel and oil ratio:
Regular gasoline:50:1
Lubrication :Pre-mixed fuel and oil
Recommended gear oil:Hypoid gear oil SAE#90
Gear oil quantity:0.045L(0.048 US qt,0.040Imp.qt)
Tightening torque for engine:
Spark plug:2.5Nm(2.55kgf-m,18.4ft-lb)
Net weight: 12.5KGS

Packing list:
machine + tool bag + proportioning pot + manual
