Product Descriptions
Fitment:

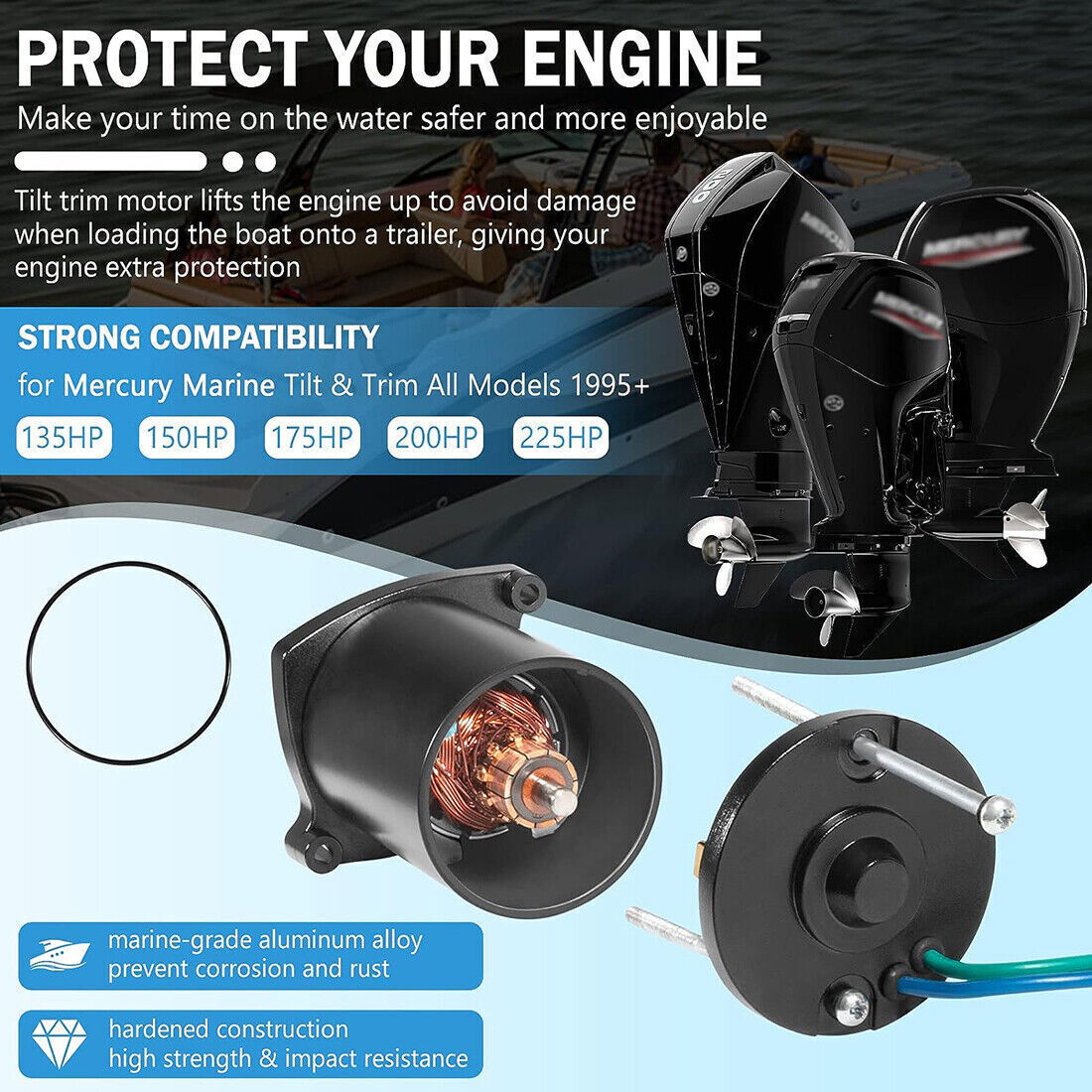

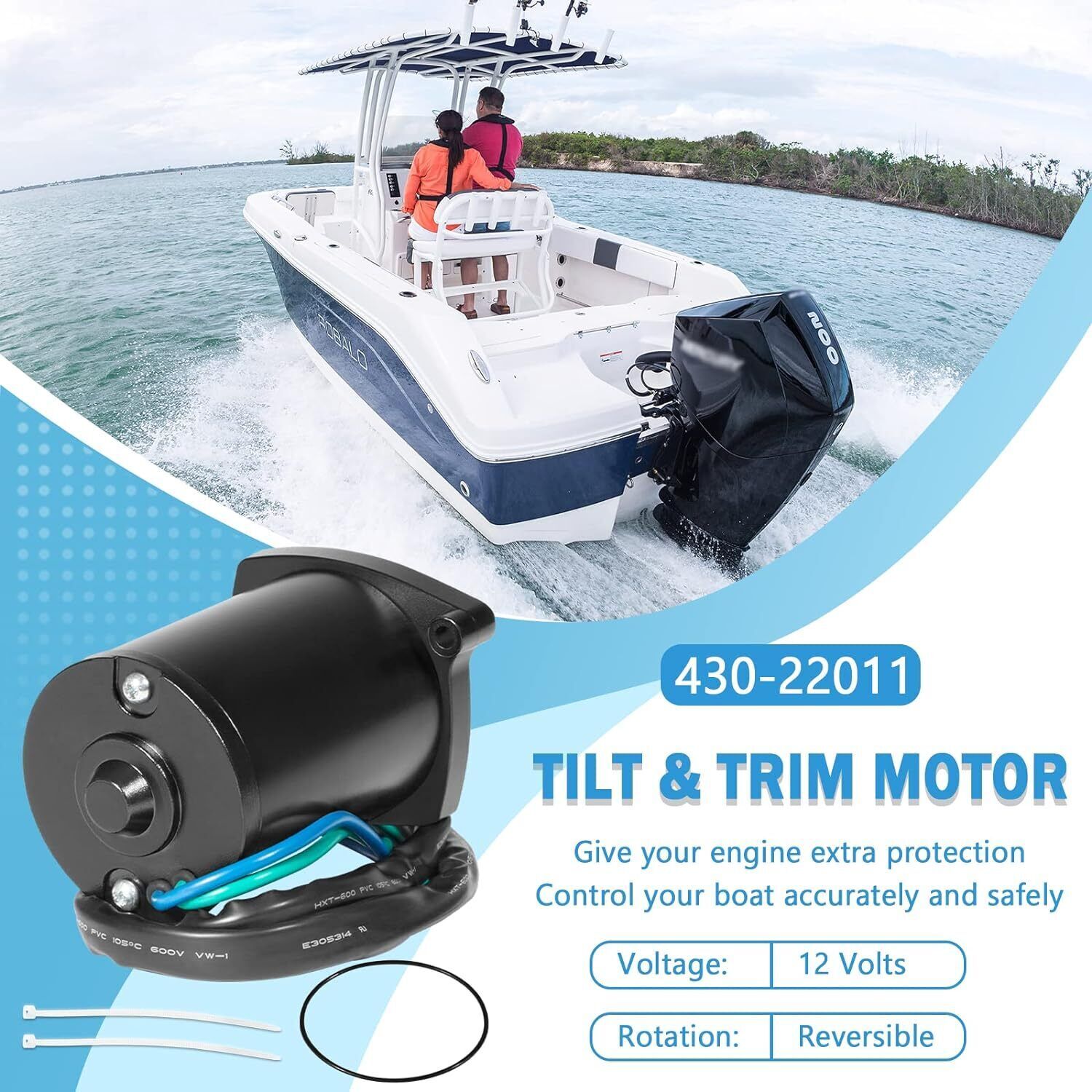

430-22011 Tilt & Trim Motor Replacement for Mercury Marine Tilt & Trim Motor All Models 135 HP 150 HP 175 HP 200 HP 225 HP 250 HP. Also suitable for 2003 Mercury Optimax 200, Mercury Optimax 220 / 225 from 2000 to present. Mercury Mariner 0/B, Earlier Models Used 107-119m. Replace Part Number: 430-22011
Features:
1) Mercury Marine 828708, 828708T, 878265A1, 878265A4, 8M0031551, MPA Small Motor P220N, NAPA Small Motor RN10826, Wilson 94-35-1019, Wilson Small Engine 74-35-10826, WAI 10826N, 82-7867, Sierra Marine 18-6773, Remy RT05005, RCP 26250A, MP Parts 4-1254, Mallory 9-18204, EMS 49-6250, EMP Parts 4-6773, Dixie TM-513, Barsanco 540-10826, API Marine PT486NM, Arco Marine 6250, Arrowhead Trm0009, 430-22011, Lester 10826, Mes Motorcycle Marine T1082M, Minnpar 67-2802, PIC 107-126

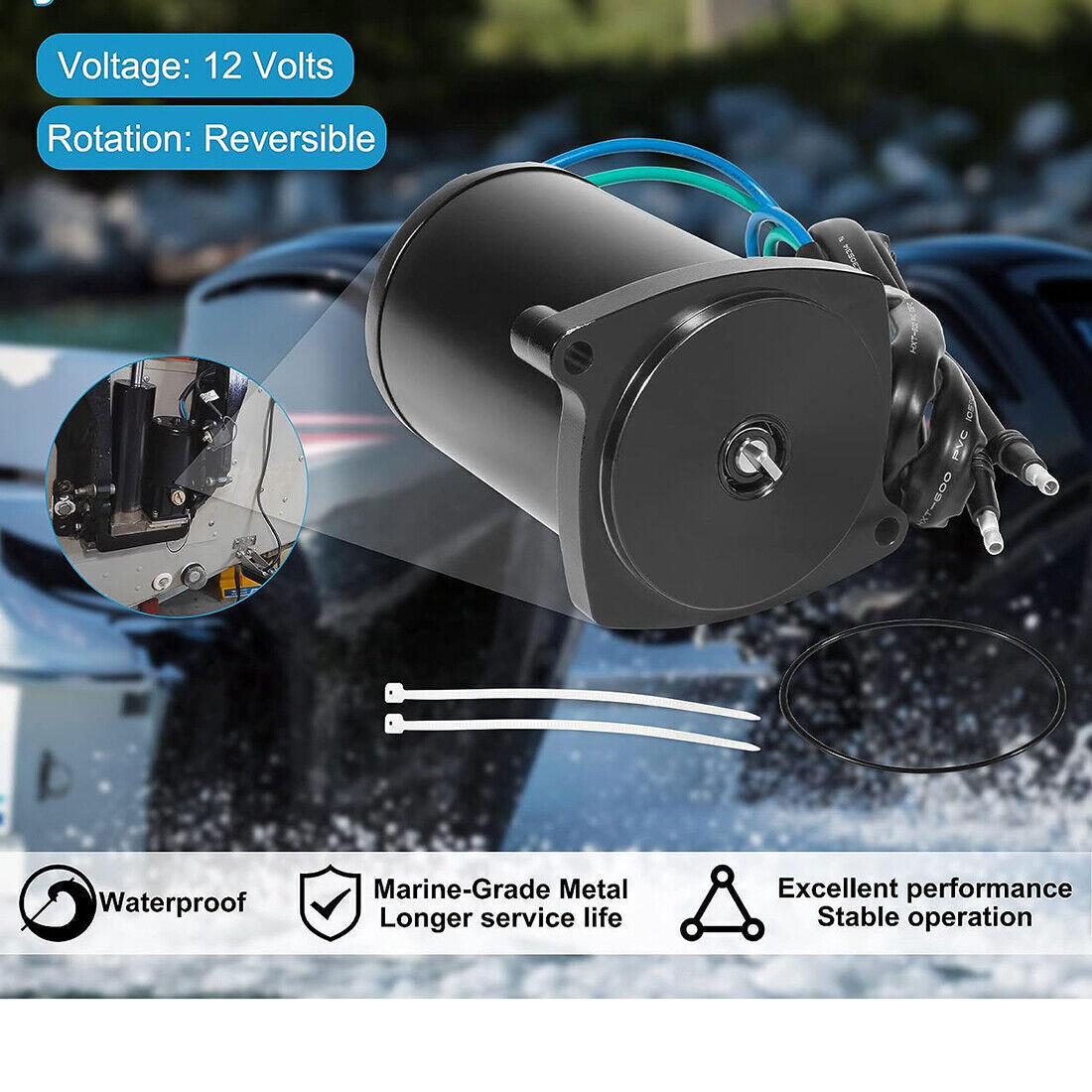

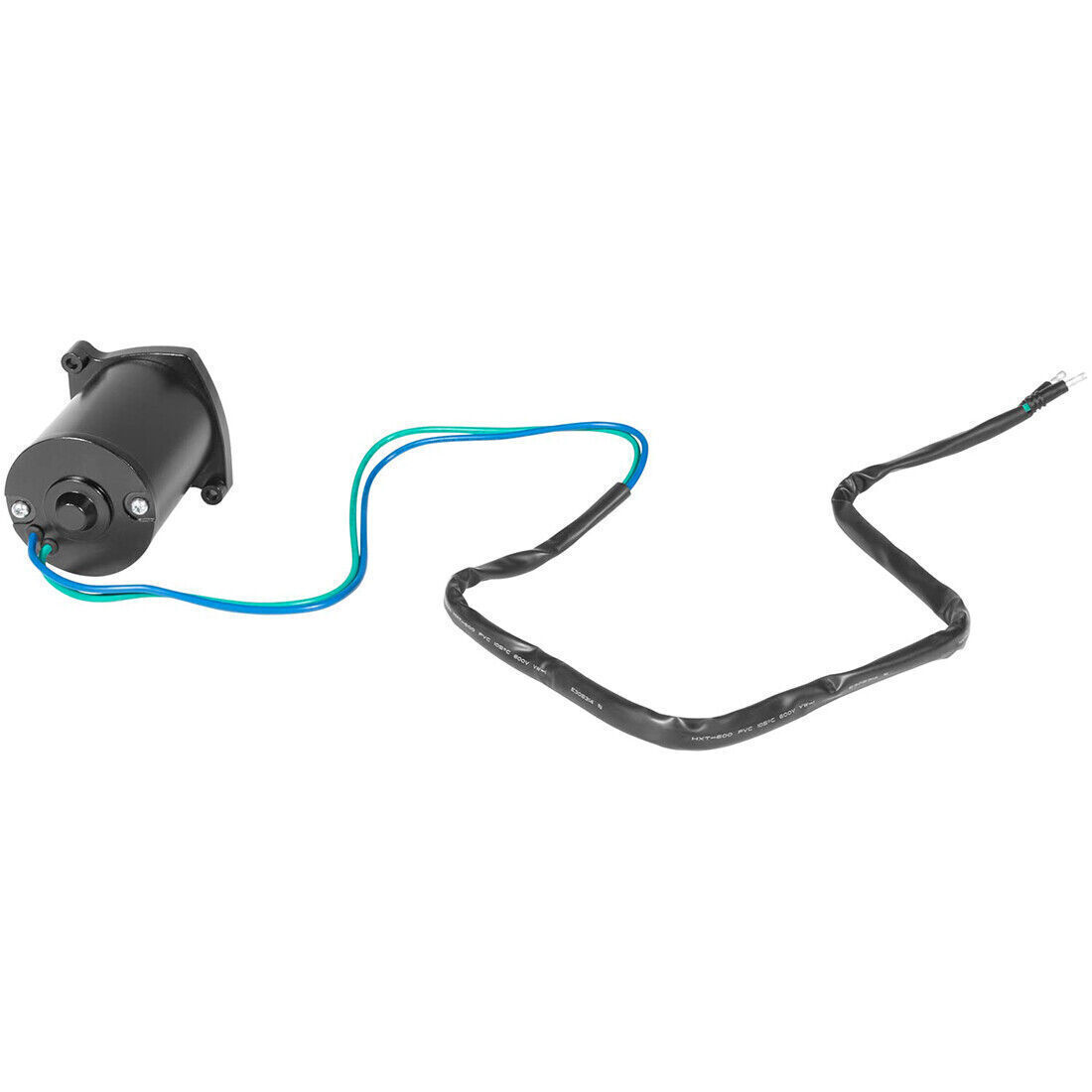

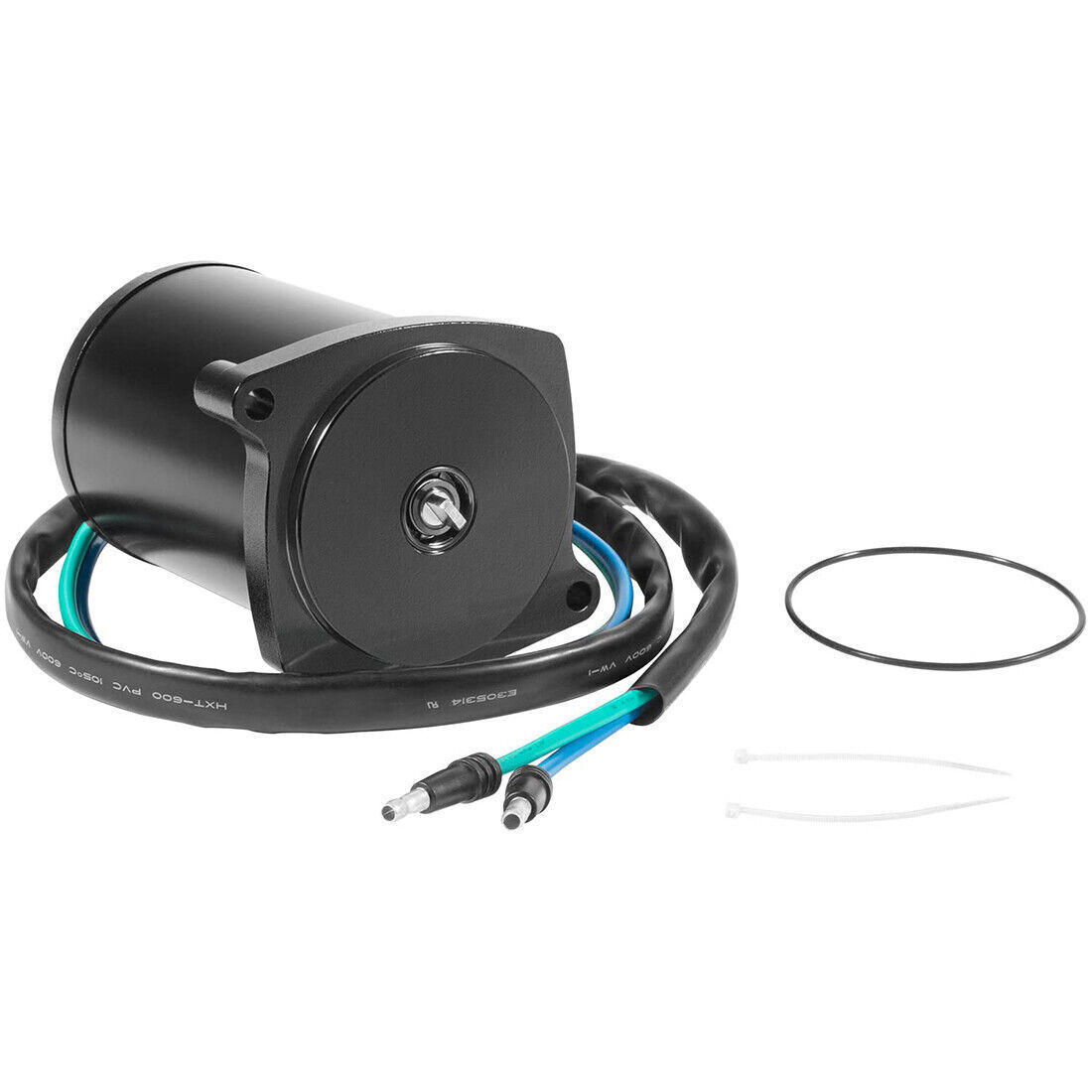

2) Meets fitment data for Mercury power tilt and trim units.Voltage:12 Volts Direct Current. Rotation: Reversible. Field Hsg OD: 75mm / 2.953in. Overall Length:124.7mm / 4.909in. Shaft OD: 8mm / 0.315inShaft Notes: Tanged Shaft. Approximate Weight:3.24 lbs / 1.47 kg. Notes: (2) 6.5mm ID Mounting Holes, (2) 3-1/2 Foot Long Wire Harness With Bullet Connectors, 1/4" Mounting Holes see less. Package included Qty-1Outboard Tilt Trim Motor, Qty-1 Sealing Ring, Qty-2 Cable Ties

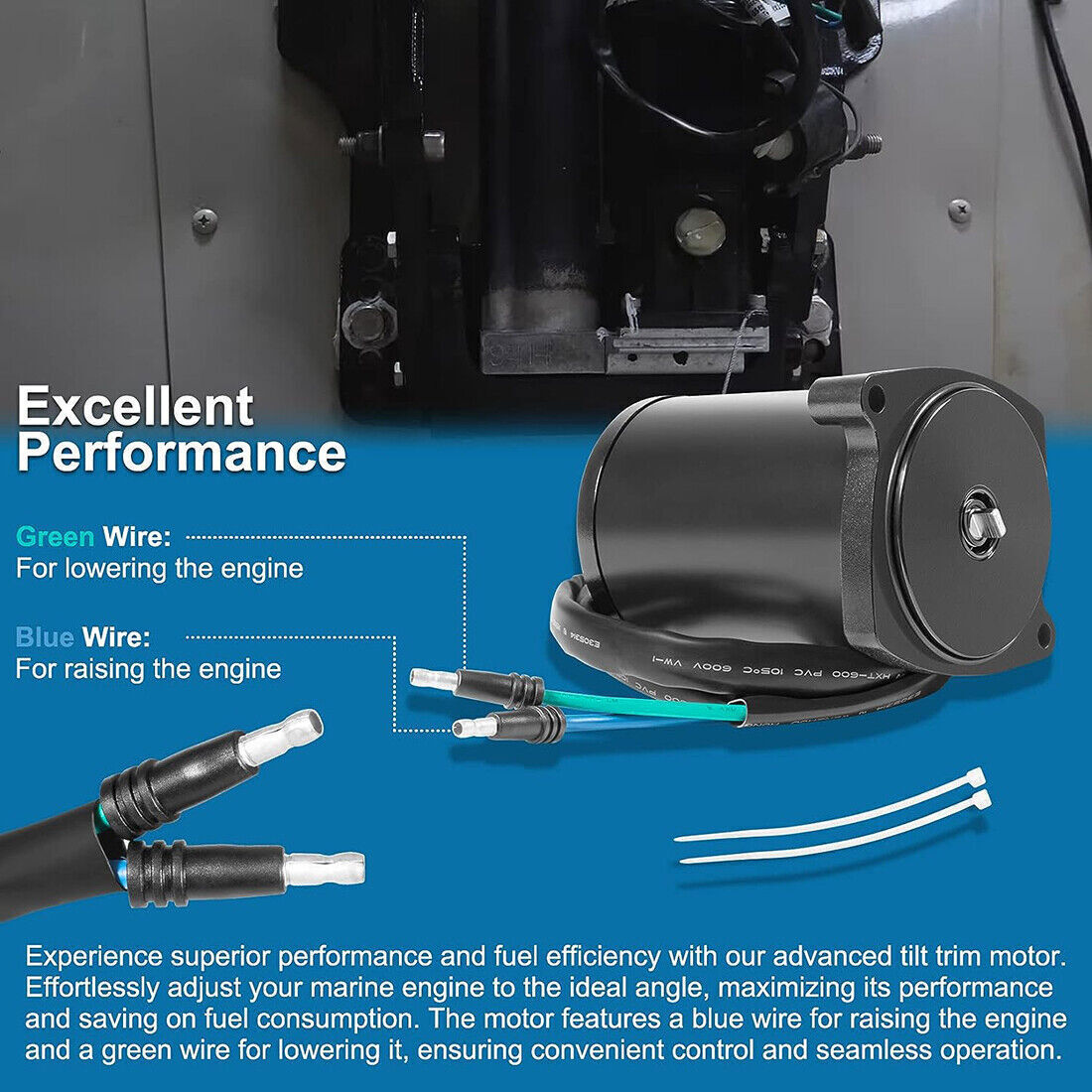

3) Experience superior performance and fuel efficiency with our advanced tilt trim motor. Effortlessly adjust your marine engine to the ideal angle, maximizing its performance and saving on fuel consumption. The motor features a blue wire for raising the engine and a green wire for lowering it, ensuring convenient control and seamless operation
Installation Instructions
Disassembly:
1. Remove the negative battery cable from the battery.

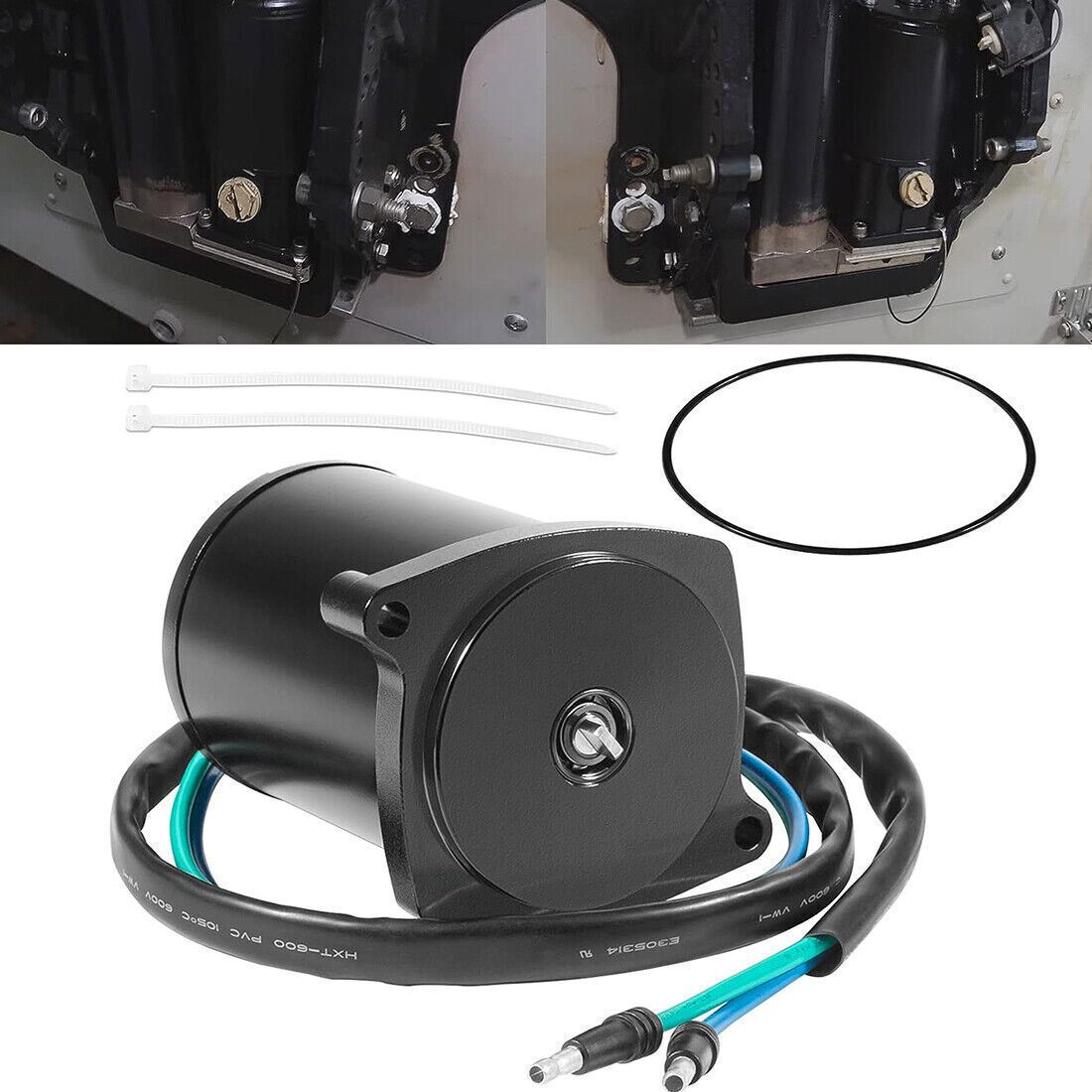

2. Locate the tilt trim motor on the outboard motor. Typically located on the port side of the engine and is attached to the hydraulic tilt and trim assembly.
3. Disconnect the wiring harness from the tilt trim motor.
4. Remove the two bolts that hold the tilt trim motor to the hydraulic tilt and trim assembly.
5. Carefully remove the tilt trim motor from the hydraulic tilt and trim assembly.
6. Inspect the tilt trim motor for any damage or wear, such as a cracked housing or a broken shaft. If the motor is damaged, it will need to be replaced.
Installation:
1. Place the new tilt trim motor onto the hydraulic tilt and trim assembly.
2. Align the bolt holes on the tilt trim motor with the holes on the hydraulic tilt and trim assembly.
3. Insert the two bolts that hold the tilt trim motor to the hydraulic tilt and trim assembly.
4. Tighten the bolts securely.
5. Reconnect the wiring harness to the tilt trim motor.
6. Install the negative battery cable to the battery.
7. Test the tilt trim motor to make sure it is working properly.
Package Included:
430-22011 Tilt & Trim Motor
Satisfaction Guarantee:
If you're not satisfied with the tool, simply return for a full refund in 60 days or get a replacement during 1Years' warranty via our customer service.
Item Specifics | |
---|---|
Brand | GM-motor |
Manufacturer Part Number | GMQP01678 |
Warranty | 1 Year |
Type | Tilt Trim Motor |
Fitment | For Mercury Marine All Models 135-225HP |
Meterial | Aluminum |
Country/Region of Manufacture | United States |
Items Included | 430-22011 Tilt & Trim Motor |
