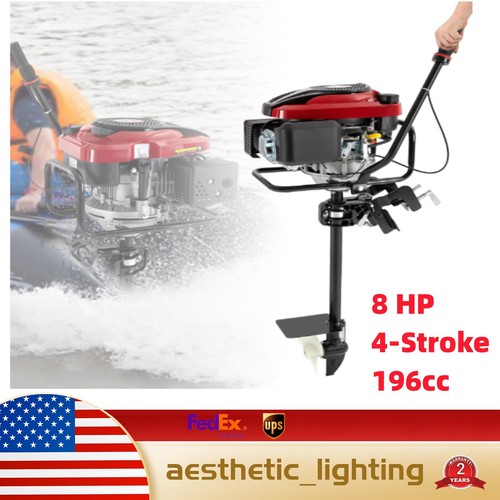

Outboard Motor 8HP 4-Stroke Fishing Boat Engine Air-Cooled TCI 196cc Gasoline

Description

This product has a strong power of 8HP with four-stroke, which enables you to drive fast and save a lot of time and energy. It also has a 360-degree steering function, which is very easy to operate. The large capacity fuel tank also reduces the number of times you have to refuel, thus increasing your efficiency. It will be your most powerful assistant when you are sailing at sea.

Specification

Material: Aluminium Alloy, Stainless Steel Screws, Industrial Plastic

Color: Black

Type: 4-stroke 8 HP

Capacity: 196CC/11.96cu.in

Cooling System: Air Cooling

Cylinder Bore Stroke: 70*51mm/2.76*2.01in

Power Transmission Method: Gear Transmission Method

Compression Ratio: 8.4:1

Fuel Tank Volume: 1.5L/0.4gal

Recommended Fuel: Normal Unleaded Gasoline

Oil Tank Volume: 0.6L/0.16gal

Gear Oil Volume: 0.1L/0.02gal

Fuel Consumption: 1.55L/H / 0.41gal/H

Idle Speed: 1800 + 500 rpm

Net Torque Speed: 10.5N.m(7.7ibf.ft)2500rpm

Rev: 4500r/min

Ignition System: TCI

Starting Method: Hand-pull Recoil

 Suitable Vertical Height of Stern Plate: 40-55cm/15.75-21.65in

Overall Height: 1.06m/3.47ft

Host Length: 33cm/12.99in

Length from Handle to Baffle: 50cm/19.68in

Propeller Part Length: 23cm/9.05in

Gross Weight: 31kg/ 68.34 lbs

Net Weight: 28kg/ 61.73 lbs

Package Size:  116*37*46cm/45.67*14.57*18.11 in



Package Included

1 * 4 Stroke 8HP Outboard Motor Boat Engine

1 * Chinese Manual

All Accessories for Installation



Key Features

High-quality Material: This product is made of high-quality aluminum alloy body, stainless steel screws, and engineering plastics, which has high hardness, anti-corrosion, and anti-rust performance, and is uneasy to bend to effectively extend the service life of the product.



Powerful Power: The engine is a 4-stroke 8hp engine, and the speed can reach 4500rpm. Powerful power can let you drive quickly and save a lot of time and energy.



Easy to Operate: This product has a strong manual start function, you only need to pull 1/2 pull rope to start. It is easy to pull off the engine cover with a push button latch for quick access to the motor.



Easy to Carry: The total length of the product is only 3.47ft and the weight is only 61.73 lbs. It is very easy to carry and store.



Fast Heat Dissipation: The engine housing has many heat sinkholes. It helps to dissipate heat quickly and prevent the engine from burning up after a long time use, which can effectively extend the life of the engine.



Flexible Steering: This product has 360-degree steering function, which can easily control the steering of the boat.The product doesn‘t have reverse gear setting.



Low Fuel Consumption: This product adopts new fuel saving and has a low energy consumption of 0.41gal/H. This can help you save a lot of energy and money.



Air Cooling System: It cools fast and has a low failure rate. There is almost never leakage, which will not make oil and water mix and damage the oil pump.



Good Noise Abatement: This product is four-stroke, compared with a two-stroke, and it has a better noise abatement effect. It can provide a quieter working environment for you.



Details

Large Capacity Fuel Tank: This product is equipped with a 0.4gal fuel tank, which can reduce the number of times you have to add fuel and thus improve your efficiency.



Baffle: The product is equipped with a baffle above the propeller, which can effectively reduce wave tossing and avoid water from wetting your clothes.



Adjustable Machine Hanger:  The vertical height of the stern plate is 15.75-21.65 inches adjustable, making it suitable for a wider range of boats.



How to Use Air Dampers

Close the dampers when the machine is cold.  Open the damper after starting the machine. When the machine is running, you need to keep the damper open, otherwise, the machine will automatically turn off. Close the dampers for a long time and using the machine will lead to flooding. If you encounter a flooding situation, you need to remove the spark plug, and then turn the machine upside down to dry for 1-2 days, and finally, you can use it again.



Application

This product is suitable for small boats of different materials (such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats), and is applicable to water operations in rivers, lakes, reservoirs, fish ponds, etc. It is suitable for boats with a load of about 1 ton/2205lbs.





Reminders

  • Gasoline is prone to oxidation and degradation when stored, and using degraded gasoline will block the oil circuit and cause difficulty in starting. If the engine is not used for more than half a month, please empty the fuel in advance.
  • Please add gear oil to the gears before using the motor and replace gear oil after the run-in period(10 hours).
  • Please check the oil condition of the four-stroke machine for the first 5 hours of use, and then check the oil and air filter before each use.
  • After using it in salt water, it must be washed immediately with clean water.
  • Please store the engine upright with the engine facing upwards, not upside down. Otherwise, the oil may flow into the engine combustion chamber and cause engine damage.
  • Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.



Instruction language:Chinese,please contact seller if you need help
