Description

Do you like fishing on the river? Do you want to go boating with your family? But are you worried about the manual boating is too tiring? With our outboard engine, you don't have to worry about this problem. The 4-stroke 6.5 hp outboard engine provides enough power to drive the ship at a very fast speed. It will be your most powerful assistant when you are sailing at sea.

Key Features

Strong Power: The 4-stroke 6.5hp engine, with a load capacity of up to 661-1653 lbs, will provide strong power for stable driving. A three-blade propeller reduces drag and balances thrust for optimum performance.

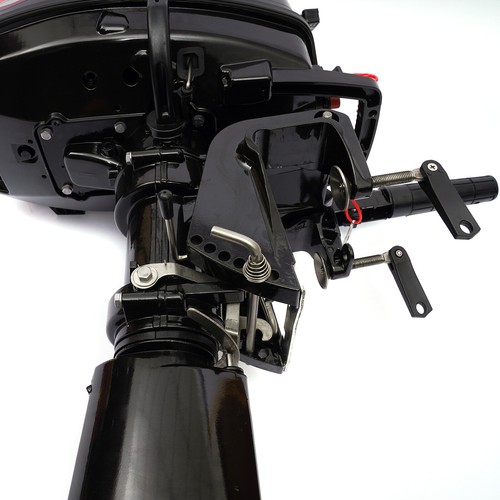

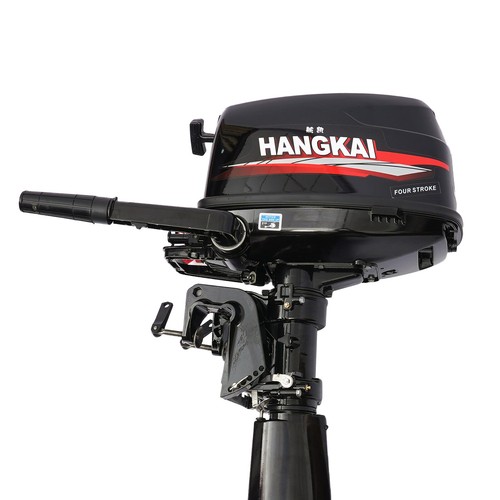

Flexible Steering Control: You can manually control steering and tilting flexibly with the handle. The reverse gear is also available for your steering convenience.

Easy to Carry: This compact and lightweight outboard engine can be easily carried and moved around.

Neutral Protection: The switch cannot be pulled when the machine is in forward or reverse to prevent danger and machine damage.

Robust and Durable: The high-quality plastic and aluminum alloy are extremely strong, wear-resistant, corrosion-resistant and rust-proof, ensuring a long service life.

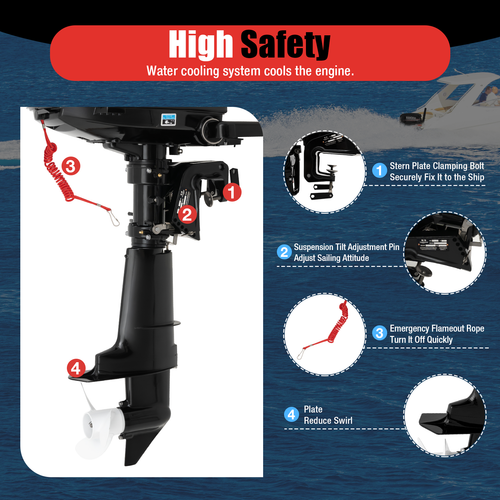

Water-cooling System: The water-cooling system prevents the engine from overheating to improve its stability and reliability.

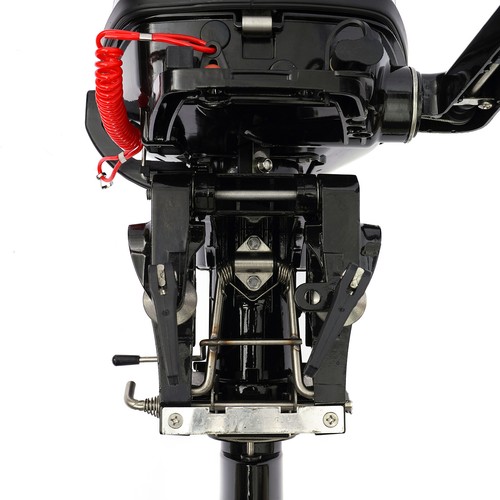

Easy to Install: The mounting clamp allows the outboard engine to be securely suspended on the stern plate with a thickness of within 1.57in.

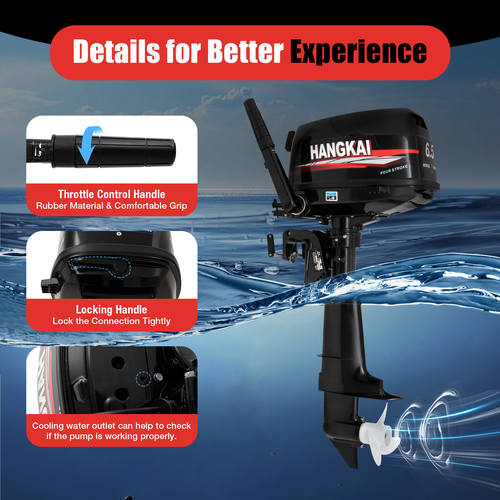

Infinitely Variable Speed: By turning the throttle handle, you can achieve a stepless speed change of 5000-6000r/min, and can drive 3.1-12.42 miles per hour, allowing you to experience a novel and exciting journey to the sea.

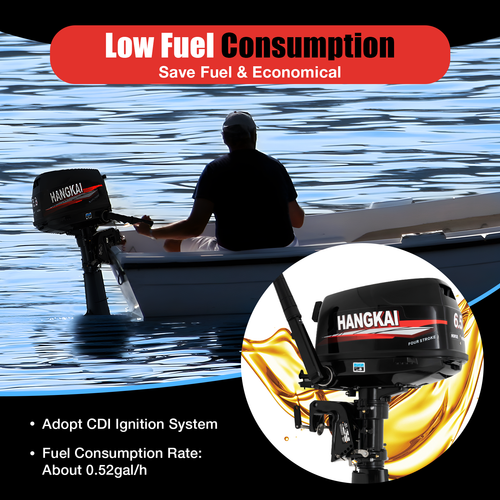

Low Fuel Consumption: With the advanced CDI ignition system, the fuel consumption per hour is only 0.52 gal/h, which is economical.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

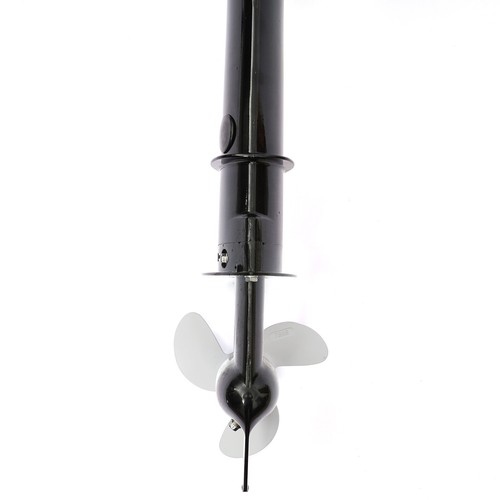

Water Baffle: The water baffle above the propeller effectively reduces wave tossing and avoid water from wetting your clothes.

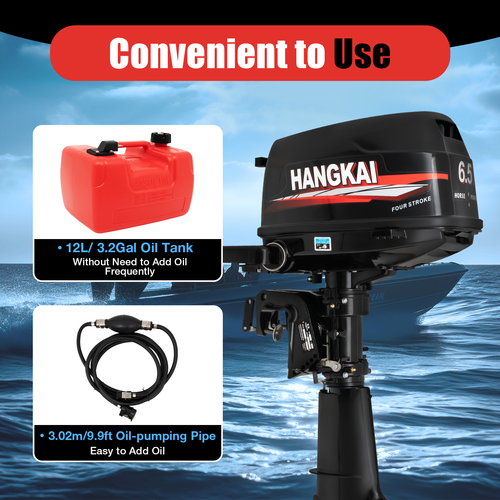

Fuel Tank: The 0.32gal fuel tank avoids frequent refilling. The handle on the fuel tank makes it easy to move and carry around individually.

Application

This product is suitable for small boats(such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats), and is applicable to water operations in rivers, lakes, reservoirs, fish ponds, etc.

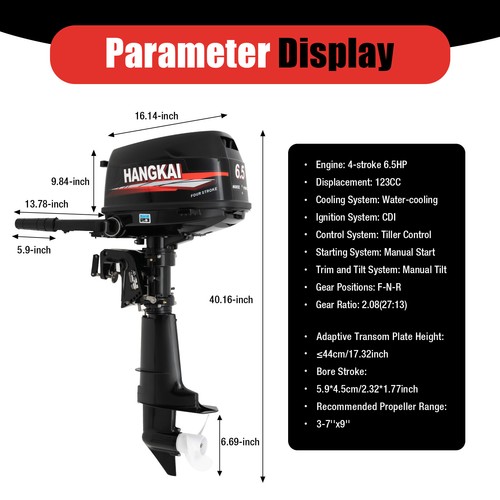

Specifications

Material: Plastic, Aluminium Alloy

Color: Black

Type: 4-stroke 6.5 HP

Displacement: 123CC

Gear Ratio: 2.08(27:13)

Cylinder: 1

Max.Output: 4.8kw

Rotation: 5000-6000r/min

Speed: About 5-20km/h(3.1-12.42Miles/h) (Depending on the Environment, Water Area, and Ship Load, the Speed may Vary)

Gear Positions: F-N-R

Ignition System: CDI

Cooling System: Water-cooling

Control System: Tiller Control

Starting System: Manual Start

Control System: #92 Gasoline

Recommended Propeller Range: 7.6-17.7 x 22.8cm/3-7in x 9in

Recommended Lubricant: Four Stroke Lubricating Oil

Mixing Ratio: Pure Gasoline

Trim and Tilt System: Manual Tilt

Fuel Consumption: About 2L/H (0.52gal/H)

Standard Fuel Tank Capacity: 12L/3.2gal

Short Shaft: 40cm/15.74in

Clamping Width: 4cm/1.57in

Bore x Stroke: 59*45mm/2.32*1.77in

Clamp Size: 7*13cm/2.76*5.12in

Clamping Range: 0-4cm/0-1.57in

Handle Length: 34cm/13.39in

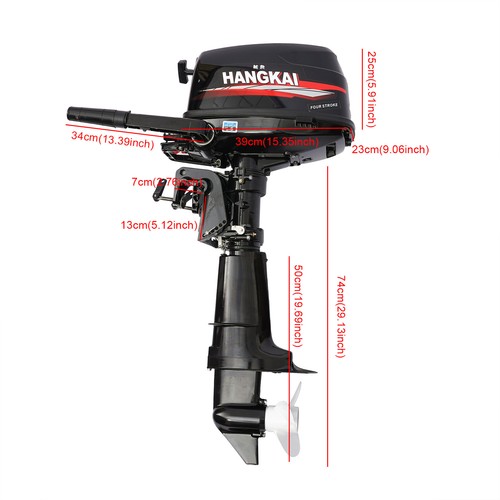

Engine Head Size: 39*23*25cm/15.35*9.06*5.91in

Fuel Tank Size: 34*22*24cm/13.39*8.66*9.45in

Silencer Size: 41*25cm/16.14*9.84inch

Outboard Height: 102cm/40.16inch

Fuel Tank & Pipe Net Weight: 2.3kg/5.07lbs

Fuel Tank & Pipe Gross Weight: 2.75kg/6.06lbs

Outboard Gross Weight: 29.05kg/64.04lbs

Outboard Net Weight: 24.95kg/55lbs

Fuel Tank & Pipe Package Size: 40*31*30.5cm/15.75*12.2*12inch

Outboard Package Size: 64*38.5*111cm/25.2*15.16*43.7inch

Thrust Force: 300-750kg/661-1653lbs

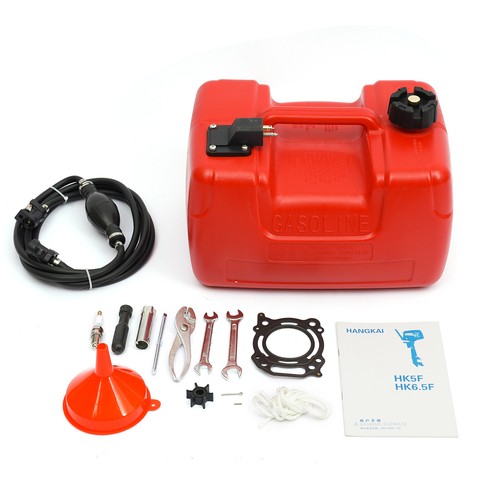

Package Included

1* Outboard Engine

1* Oil Pipe

1* Funnel

1* Fuel Tank

1* English User Manual

All Accessories for Installation

Notes

1. When there is no water coming out of the motor, stop using it immediately and then check the pump impeller or check that the outlet is not blocked.

2. Please don't start the motor on the shore without water. Even if you want to test the motor, it should be done in the river!

3. After using in salt water, it is recommend to wash it with clean water immediately.

4. Please add gear oil to the gears before using the motor and change the gear oil after the break-in period (10 hours). After the break-in period, you will need to change the gear oil again after 100 hours of operation.

5. We can only provide CE certification, there is no other certification that can be provided, thanks for your understanding.

6. About the noise: all petrol engines have noise. Currently, we have not tested the decibels, but the noise is the same as a motorbike, so this is normal.

7. The machine itself is very light and can be used on board with a weight of 100 kg or less. It can carry up to 4 people, but the speed is certainly not the same when one person is on it or when 4 people are on it. Customers with high expectations of speed, please take note.

8. Please note that you have to prepare a boat-motor stand or Hanging board on your boat

9. Please do not start the motor on the cylinder bank or use the motor when stopping water discharge, so as to avoid scratching the cylinder

10. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.

11. Please note that the exact speed of travel depends on the shape of your boat, weight, water, wind, and other factors.

12. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
