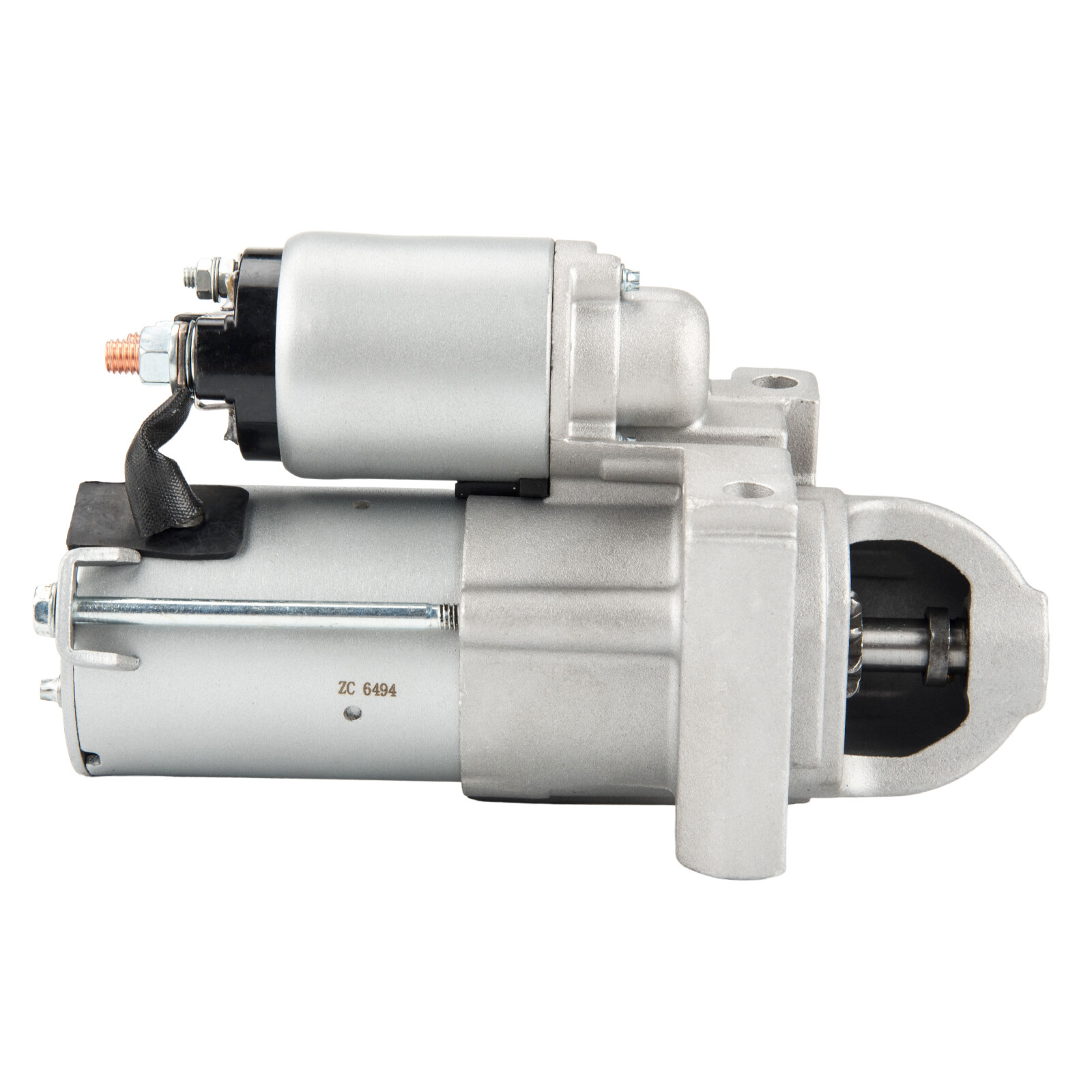

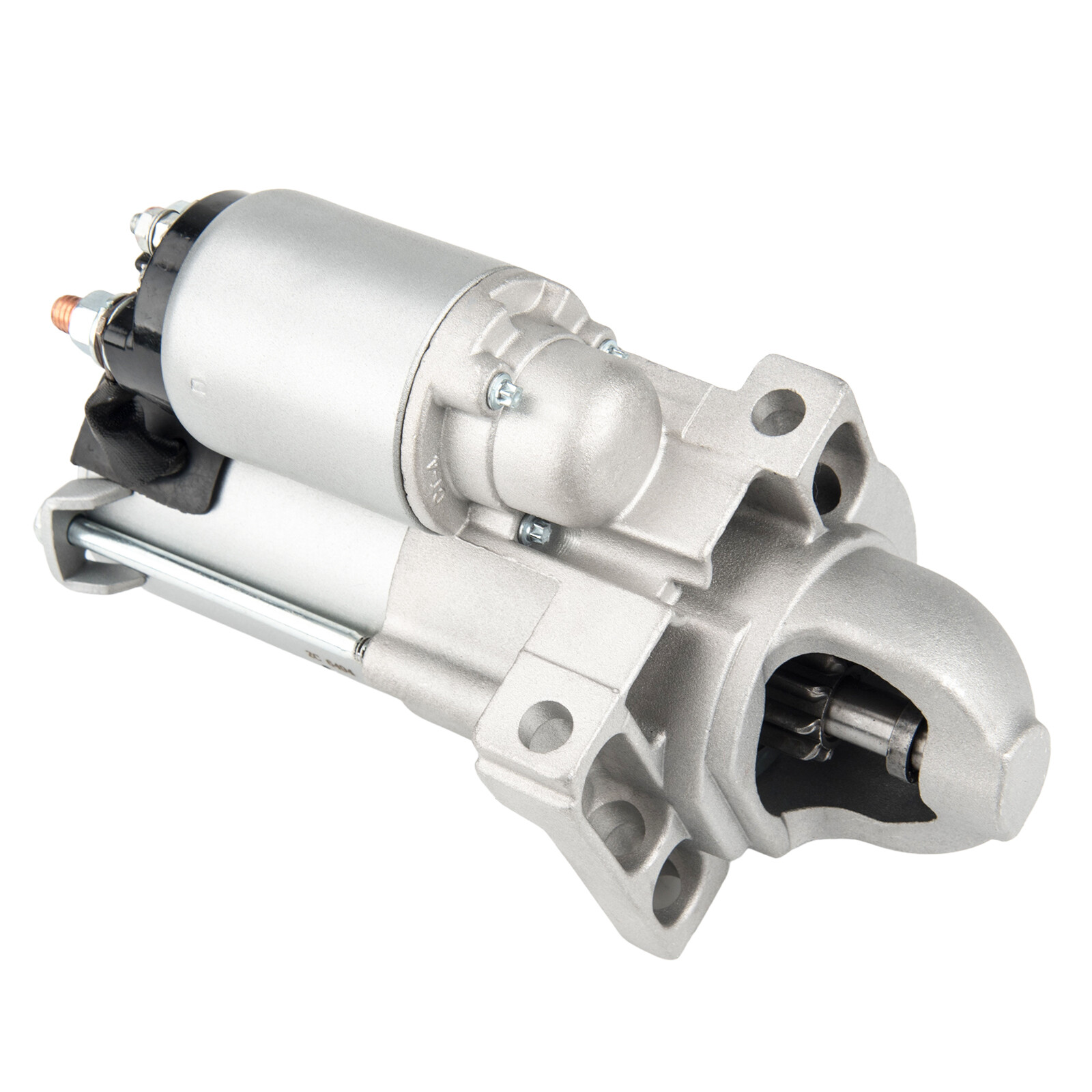

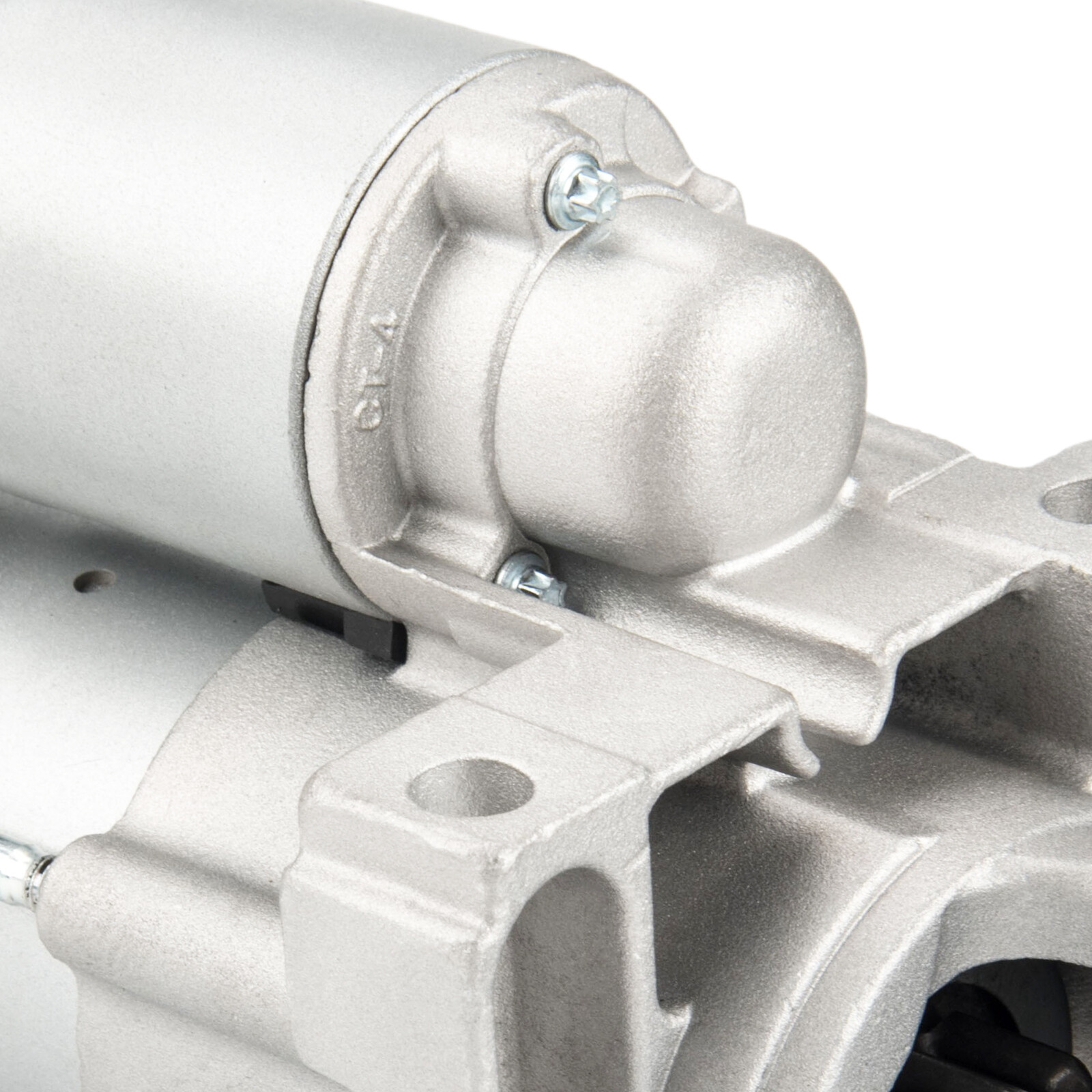

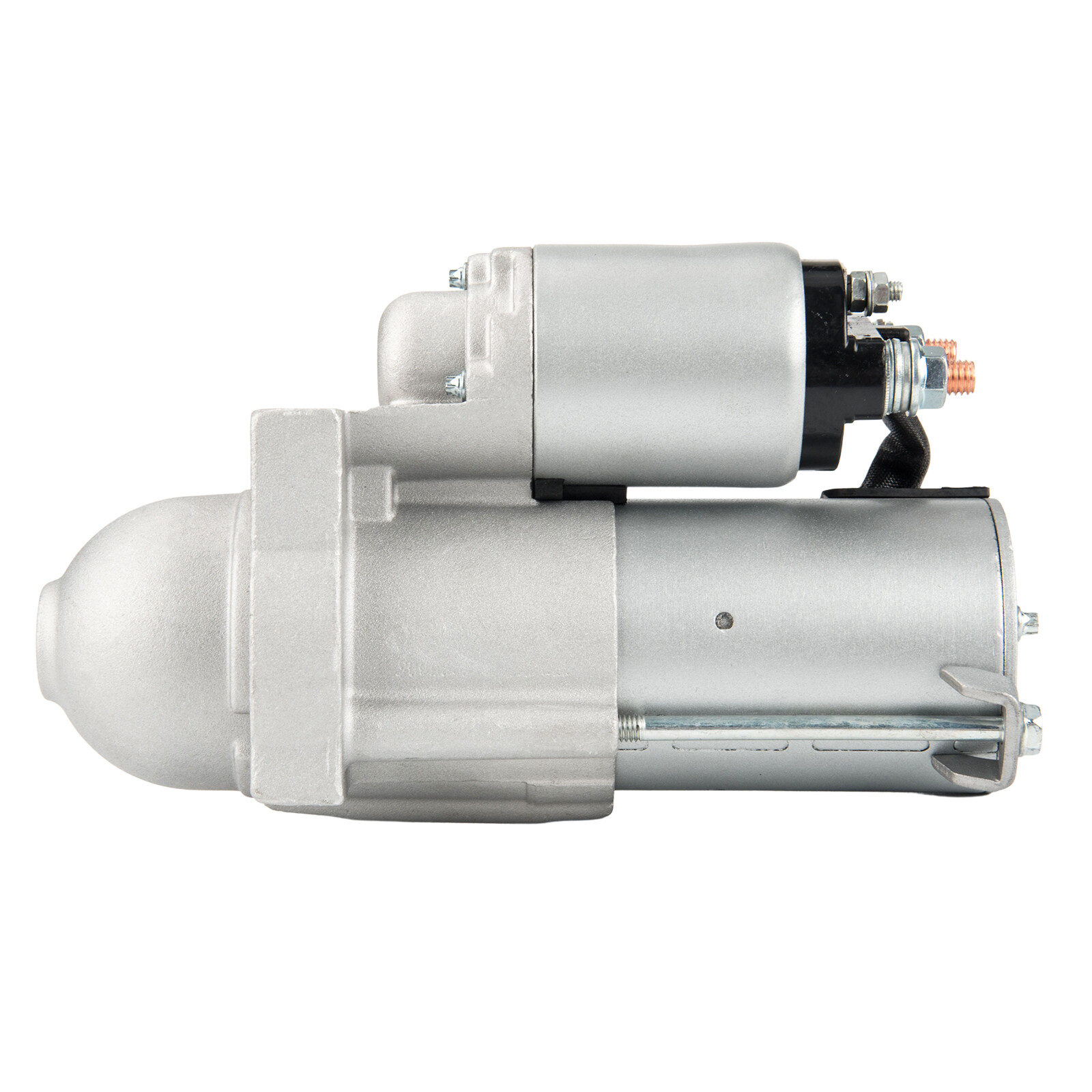

Features:



• Brand New and Warranty offered
• Built to strict quality control standards
• All of our starters are tested to ensure product performance and durability
• Starter Type: PMGR
• Rotation: CW

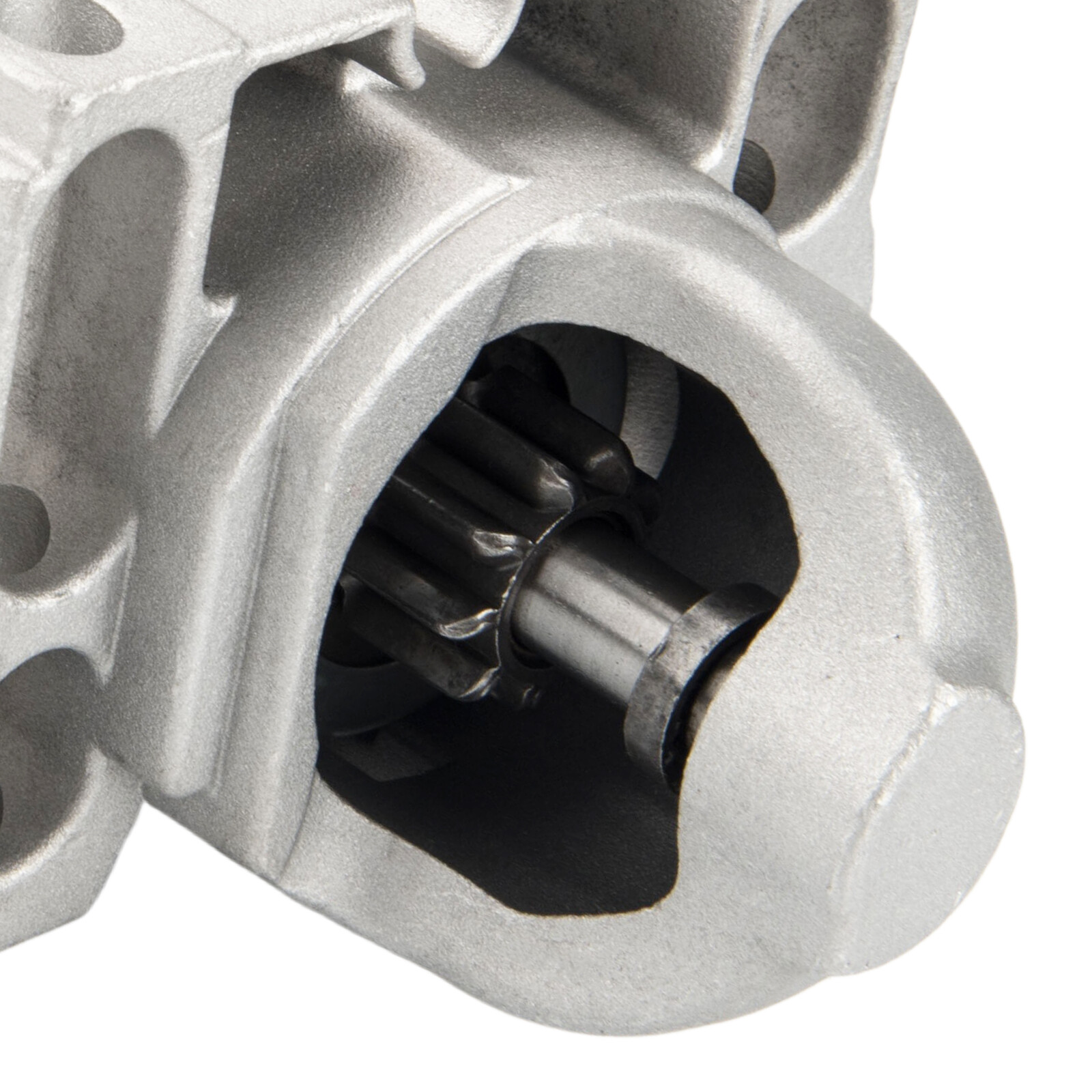

• Teeth: 9
• KW: 1.1



Part Number:



• AC DELCO: 323-1483, 323-1623, 323-1644, 336-2002
• ARROWHEAD: SDR0270
• CARGO: 112902
• DELCO: 8000016, 8000045, 8000150, 8000288, 88861935, 89017440, 89018123, 9000939
• For general motors: 12568051, 12578050, 12592294, 12604477, 12610300, 89017440, 89017631, 89018123
• For isuzu: 8890176310
• LESTER: 6494
• REMY REMAN: SR110907
• SAAB: 89-01-7440, 89-01-7631, 89-01-8123
• WAI: 2-2336-DR, 6494N



Fitment:



MAKE TYPE MODEL YEAR ENGINE

For buick Auto and Light Truck RAINIER 2004 5.3L(323) V8

For buick Auto and Light Truck RAINIER 2005 5.3L(323) V8

For buick Auto and Light Truck RAINIER 2006 5.3L(325) V8

For buick Auto and Light Truck RAINIER 2007 5.3L(325) V8

CADILLAC Auto and Light Truck ESCALADE 2003 5.3L(325) V8

CADILLAC Auto and Light Truck ESCALADE 2004 5.3L(325) V8

CADILLAC Auto and Light Truck ESCALADE 2005 5.3L(325) V8

For chevrolet Auto and Light Truck AVALANCHE 1500 2003 5.3L(323) V8

For chevrolet Auto and Light Truck AVALANCHE 1500 2004 5.3L(323) V8

For chevrolet Auto and Light Truck AVALANCHE 1500 2005 5.3L(323) V8

For chevrolet Auto and Light Truck AVALANCHE 1500 2006 5.3L(323) V8

For chevrolet Auto and Light Truck AVALANCHE 2007 5.3L(323) V8

For chevrolet Auto and Light Truck AVALANCHE 2008 5.3L(323) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2003 5.3L(323) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2004 4.8L(294) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2004 5.3L(323) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2005 4.8L(294) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2005 5.3L(323) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2006 4.8L(294) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2006 5.3L(323) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2007 4.8L(294) V8

For chevrolet Auto and Light Truck SILVERADO 1500 / CLASSIC 2007 5.3L(323) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2008 4.8L(294) V8

For chevrolet Auto and Light Truck SILVERADO 1500 2008 5.3L(323) V8

For chevrolet Auto and Light Truck EXPRESS 1500/2500/3500 2004 4.8L(294) V8

For chevrolet Auto and Light Truck EXPRESS 1500/2500/3500 2004 5.3L(323) V8

For chevrolet Auto and Light Truck EXPRESS 1500/2500/3500 2005 4.8L(294) V8

For chevrolet Auto and Light Truck EXPRESS 1500/2500/3500 2005 5.3L(323) V8

For chevrolet Auto and Light Truck EXPRESS 1500/2500/3500 2006 4.8L(294) V8

For chevrolet Auto and Light Truck EXPRESS 1500/2500/3500 2006 5.3L(323) V8

For chevrolet Auto and Light Truck EXPRESS 1500/2500/3500 2007 4.8L(294) V8

For chevrolet Auto and Light Truck EXPRESS 1500/2500/3500 2007 5.3L(323) V8

For chevrolet Auto and Light Truck SSR 2003 5.3L(323) V8

For chevrolet Auto and Light Truck SSR 2004 5.3L(323) V8

For chevrolet Auto and Light Truck SUBURBAN 2003 5.3L(323) V8

For chevrolet Auto and Light Truck SUBURBAN 2004 5.3L(323) V8

For chevrolet Auto and Light Truck SUBURBAN 2005 5.3L(323) V8

For chevrolet Auto and Light Truck SUBURBAN 2006 5.3L(323) V8

For chevrolet Auto and Light Truck SUBURBAN 2007 5.3L(323) V8

For chevrolet Auto and Light Truck SUBURBAN 2008 5.3L(323) V8

For chevrolet Auto and Light Truck TAHOE 2003 5.3L(323) V8

For chevrolet Auto and Light Truck TAHOE 2004 4.8L(294) V8

For chevrolet Auto and Light Truck TAHOE 2004 5.3L(323) V8

For chevrolet Auto and Light Truck TAHOE 2005 4.8L(294) V8

For chevrolet Auto and Light Truck TAHOE 2005 5.3L(323) V8

For chevrolet Auto and Light Truck TAHOE 2006 4.8L(294) V8

For chevrolet Auto and Light Truck TAHOE 2006 5.3L(323) V8

For chevrolet Auto and Light Truck TAHOE 2007 4.8L(294) V8

For chevrolet Auto and Light Truck TAHOE 2007 5.3L(323) V8

For chevrolet Auto and Light Truck TAHOE 2008 4.8L(294) V8

For chevrolet Auto and Light Truck TAHOE 2008 5.3L(323) V8

For chevrolet Auto and Light Truck TRAILBLAZER 2004 5.3L(323) V8

For chevrolet Auto and Light Truck TRAILBLAZER 2005 5.3L(323) V8

For chevrolet Auto and Light Truck TRAILBLAZER 2006 5.3L(323) V8

For chevrolet Auto and Light Truck TRAILBLAZER 2007 5.3L(323) V8

For chevrolet Auto and Light Truck TRAILBLAZER 2008 5.3L(323) V8

For gmc Auto and Light Truck SIERRA 1500 2003 5.3L(323) V8

For gmc Auto and Light Truck SIERRA 1500 2004 4.8L(294) V8

For gmc Auto and Light Truck SIERRA 1500 2004 5.3L(323) V8

For gmc Auto and Light Truck SIERRA 1500 2005 4.8L(294) V8

For gmc Auto and Light Truck SIERRA 1500 2005 5.3L(323) V8

For gmc Auto and Light Truck SIERRA 1500 2006 4.8L(294) V8

For gmc Auto and Light Truck SIERRA 1500 2006 5.3L(323) V8

For gmc Auto and Light Truck SIERRA 1500 2007 4.8L(294) V8

For gmc Auto and Light Truck SIERRA 1500 / CLASSIC 2007 5.3L(323) V8

For gmc Auto and Light Truck SIERRA 1500 2008 4.8L(294) V8

For gmc Auto and Light Truck SIERRA 1500 2008 5.3L(323) V8

For gmc Auto and Light Truck ENVOY 2004 5.3L(323) V8

For gmc Auto and Light Truck ENVOY 2005 5.3L(323) V8

For gmc Auto and Light Truck ENVOY 2006 5.3L(323) V8

For gmc Auto and Light Truck ENVOY 2007 5.3L(323) V8

For gmc Auto and Light Truck ENVOY 2008 5.3L(323) V8

For gmc Auto and Light Truck ENVOY 2009 5.3L(323) V8

For gmc Auto and Light Truck SAVANA 1500/2500/3500 2004 4.8L(294) V8

For gmc Auto and Light Truck SAVANA 1500/2500/3500 2004 5.3L(323) V8

For gmc Auto and Light Truck SAVANA 1500/2500/3500 2005 4.8L(294) V8

For gmc Auto and Light Truck SAVANA 1500/2500/3500 2005 5.3L(323) V8

For gmc Auto and Light Truck SAVANA 1500/2500/3500 2006 4.8L(294) V8

For gmc Auto and Light Truck SAVANA 1500/2500/3500 2006 5.3L(323) V8

For gmc Auto and Light Truck SAVANA 1500/2500/3500 2007 4.8L(294) V8

For gmc Auto and Light Truck SAVANA 1500/2500/3500 2007 5.3L(323) V8

For gmc Auto and Light Truck YUKON 2003 5.3L(323) V8

For gmc Auto and Light Truck YUKON 2004 4.8L(294) V8

For gmc Auto and Light Truck YUKON 2004 5.3L(323) V8

For gmc Auto and Light Truck YUKON 2005 4.8L(294) V8

For gmc Auto and Light Truck YUKON 2005 5.3L(323) V8

For gmc Auto and Light Truck YUKON 2006 4.8L(294) V8

For gmc Auto and Light Truck YUKON 2006 5.3L(323) V8

For gmc Auto and Light Truck YUKON 2007 4.8L(294) V8

For gmc Auto and Light Truck YUKON 2007 5.3L(323) V8

For gmc Auto and Light Truck YUKON 2008 4.8L(294) V8

For gmc Auto and Light Truck YUKON 2008 5.3L(323) V8

For gmc Auto and Light Truck YUKON XL 2003 5.3L(323) V8

For gmc Auto and Light Truck YUKON XL 2004 5.3L(323) V8

For gmc Auto and Light Truck YUKON XL 2005 5.3L(323) V8

For gmc Auto and Light Truck YUKON XL 2006 5.3L(323) V8

For gmc Auto and Light Truck YUKON XL 2007 5.3L(323) V8

For gmc Auto and Light Truck YUKON XL 2008 5.3L(323) V8

For isuzu Auto and Light Truck ASCENDER 2004 5.3L(323) V8

For isuzu Auto and Light Truck ASCENDER 2005 5.3L(323) V8

For isuzu Auto and Light Truck ASCENDER 2006 5.3L(323) V8

SAAB Auto and Light Truck 9-7X 2005 5.3L

SAAB Auto and Light Truck 9-7X 2006 5.3L

SAAB Auto and Light Truck 9-7X 2007 5.3L

SAAB Auto and Light Truck 9-7X 2008 5.3L



Package Including:



• 1 X Starter

​

Fault check:

The starter often has failures and phenomena that cannot rotate or rotate slowly. In this case, check the following aspects:

1. The battery has no electricity or the electricity is weak, so the starter cannot rotate or rotate slowly.

2. The starter thread is loose or off, and the switch or adsorption switch fails.

3. The brush is worn out or the brush surface is not correct, and the spring is weak, resulting in poor contact of the rectifier.

4. Excitation coil or armature coil is short-circuited or disconnected.

5. The rectifier is fouled and the mica sheet is protruding, causing poor contact between the brush and the rectifier.Organization maintenance

In the process of starting the engine, the starter must draw in 344~400Ah from the battery. Therefore, in order to prevent the battery from over-current or damage, the starting time should not exceed

5s. In winter, it is easy to start difficult to start. Multiple starting times should not be too long, and appropriate intervals should be left in each starting.





How to Install a Car Starter:



There’s never a convenient time for your vehicle’s starter to fail. A car starter's job is to kick over the engine in your car so your vehicle starts.When you find yourself with a vehicle that won’t start, there are a number of a number of issues that may be the culprit,but once you’ve narrowed it down to a faulty starter, you can replace it using just common hand tools.



Part 1: Removing a Bad Starter

(1).Disconnect the battery.
You will not need to remove the positive cable on the battery.
Always disconnect the battery before servicing the electrical system in your vehicle.



(2).Jack up the vehicle if need be.
Ensure you jack the vehicle up on firm, level ground.



(3).Locate the starter.

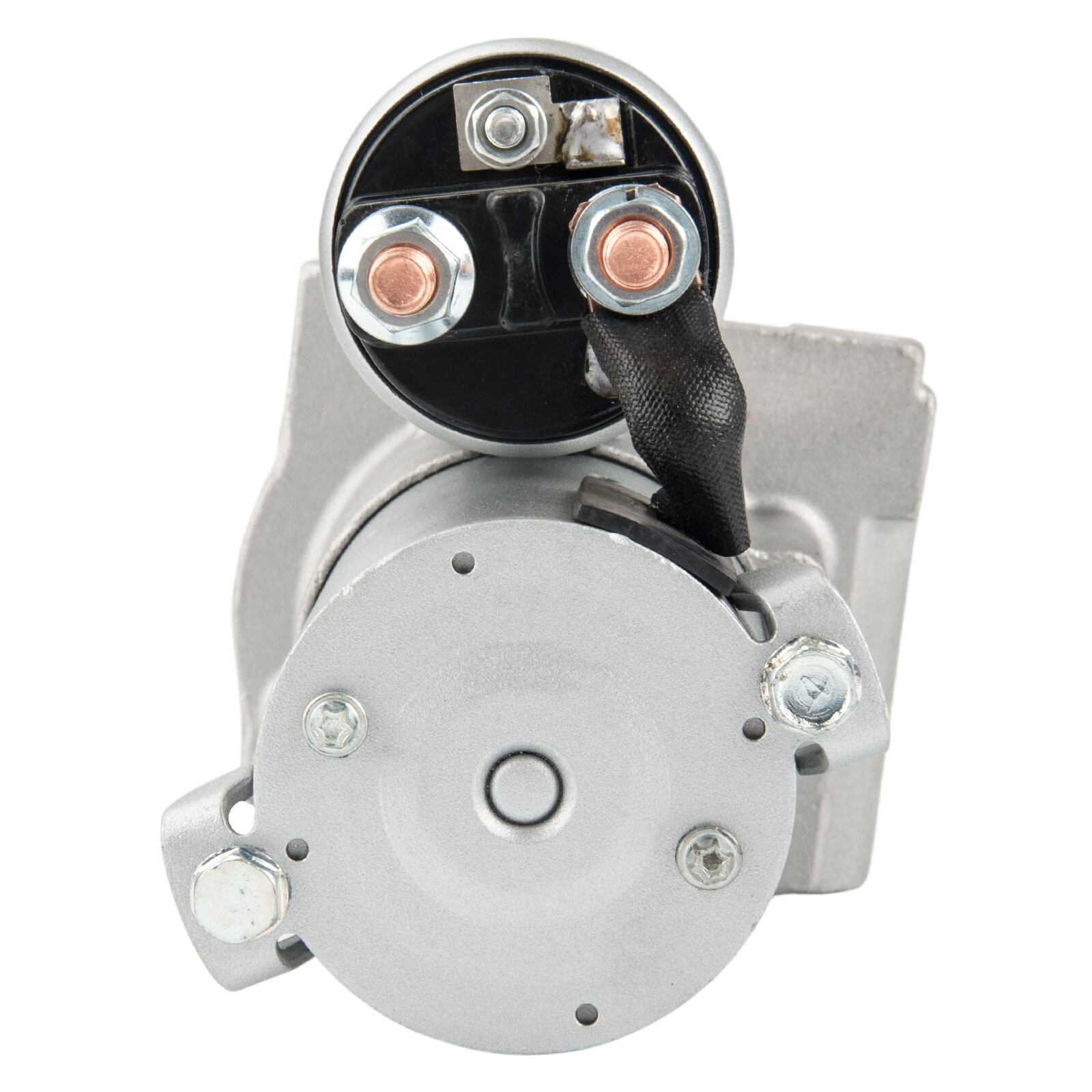

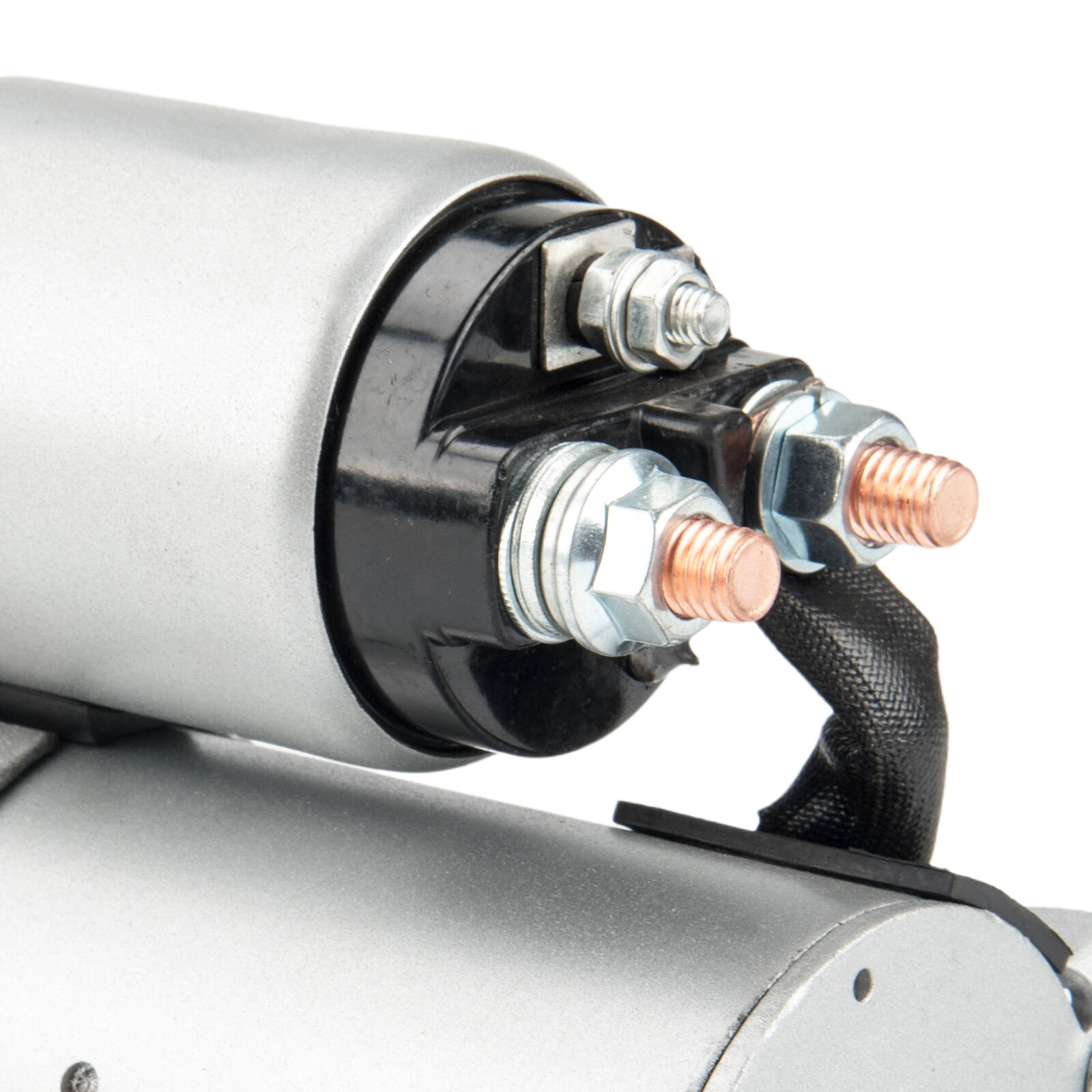

The smaller cylinder attached to the starter is the starter solenoid.
A wire should run directly from the positive terminal on the battery or from the fuse box under the hood to the top terminal on the starter solenoid.



(4).Disconnect the wiring to the solenoid.
In some cases, it may just be clips you need to disconnect for the wiring.
On some starters, you will need to loosen bolts or screws that hold the wires in place.



(5).Remove the starter retaining bolts then the starter.
Be sure to use the correct size socket, otherwise you risk damaging the bolts.



(6).Compare the new starter to the old one.  Slide the starter into place.
If the two starters don’t look mostly identical, it may not be the correct starter for your vehicle.
New starter solenoids often come with four terminals, but can be used with only two.



Part 2: Installing a New Starter

(7).Insert the starter retainer bolts.
If the bolt does not thread properly, unscrew it and try again.
Make sure the bolts are tight so they can’t vibrate loose while the engine is running.



(8).Connect the wiring to the starter solenoid.
With the starter secured in place, reconnect the wiring you disconnected from the old starter onto the terminals on the new one. If your new solenoid has four terminals but your old one had two, only utilize the top and bottom terminal on the new solenoid. If your old one had four and the new one does as well, connect them to the same terminals they were connected to on the old one.



(9).Reconnect the battery.
With the starter installed and wired, reconnect the black cable to the negative terminal on the battery and tighten it in place. Insert the key into the ignition and attempt to start the vehicle.
If the vehicle fails to start with the new starter in place, ensure the battery is fully charged.



(10).Listen to the vehicle as you attempt to start it.
As you turn the key in the ignition, listen for the sounds the engine makes to help determine if you have an issue with your starter. If the engine makes no sound whatsoever, or you hear only a faint clicking, it may be because there isn’t enough power reaching the electric starter motor.



(11).Ensure the battery terminals are clean and secure.Charge your vehicle’s battery.
A weak connection from the battery can prevent the engine from starting.
Wear gloves when cleaning battery terminals to avoid getting battery acid on your skin.

If you suspect the battery may simply be low on power, try charging it using either a trickle charger or another vehicle to jump start it. Be sure to connect the red cable to the positive terminal on each vehicle and the black to the negative.



(12).Check to see the starter solenoid is bad.
If the test light does not light up, it means power is not reaching the starter motor due to a faulty solenoid or a dead battery.
If the test light does light up, it means the solenoid is good, but the starter itself may have failed.



Frequently Asked Questions:



(1).Why is my car starter burning out?
You likely cranked the starter for too long.



(2).I have to change the starter fairly often in my car. What could be causing this?
A leak of some sort could be fouling the starter if fluid is dripping on it. If that's the case,

replacing the starter doesn't fix the leak so it's only a matter of time before the new starter fails.



(3).What is the black wire connected to?
He black wire can be commonly associated with the wire that connects the battery to the ignition.

If this is not the wire that you are referring to then it could be a random wire that has been detached from your fuse box?

How big is this wire? If it is rather stout then that would be your battery cables. If it is a small wire then it could be several different things.

Follow it and find the origin of the wire, it co
