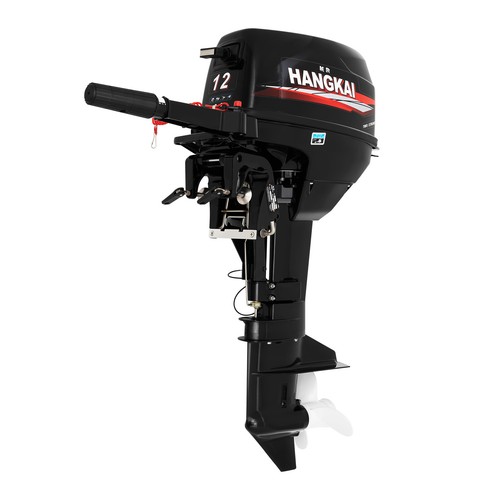

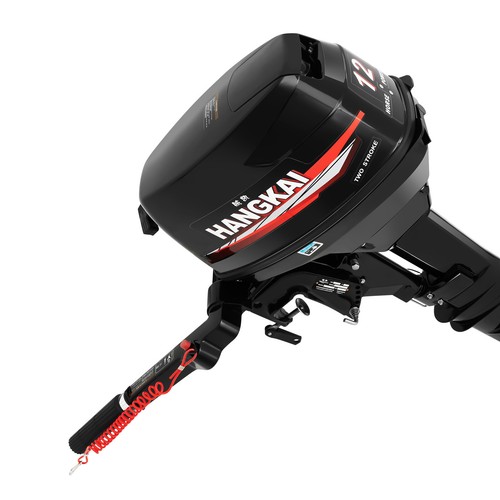

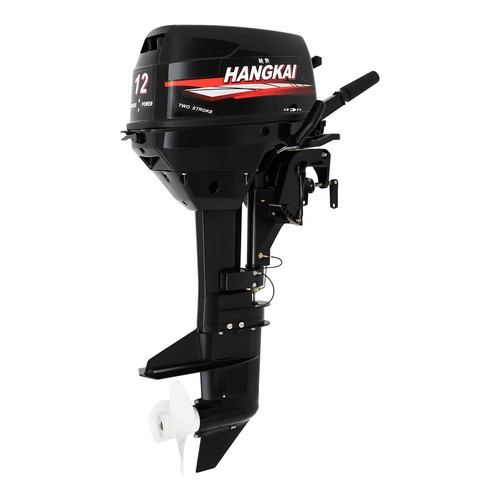

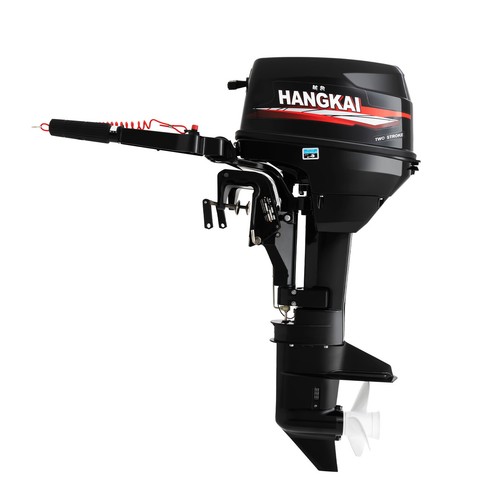

HANGKAI 2-Stroke 12 HP Outboard Motor W/ Water Cooling Fishing Boat Engine

Description

This outboard motor is made of high-quality aluminium material, which is the best choice for you to enjoy your cruise. All you need to do is install it in the stern of your boat, and you can enjoy a fast and easy-to-operate water journey!

Key Features

Enjoy Sailing: The 2-stroke 12hp engine with 5500rpm can provide 661-1763lbs thrust and 8-30 km/h speed to give you a comfortable and labor-saving sailing experience.

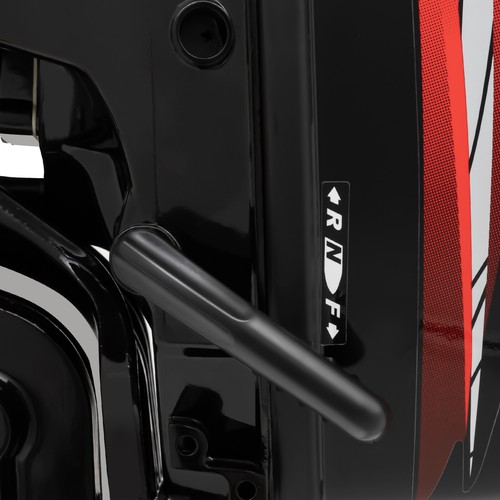

Multi-gear Cruise: This product has three gears for infinitely variable transmission: forward gear, neutral gear, and reverse gear, and you can also cruise at a constant speed so that you can enjoy different cruise experiences according to your needs.

Convenient to Use: The CDI ignition device and manual start allows you to start quickly and safely. The flameout switch on the handle allows you to stop the engine with one button, providing convenience and saving time.

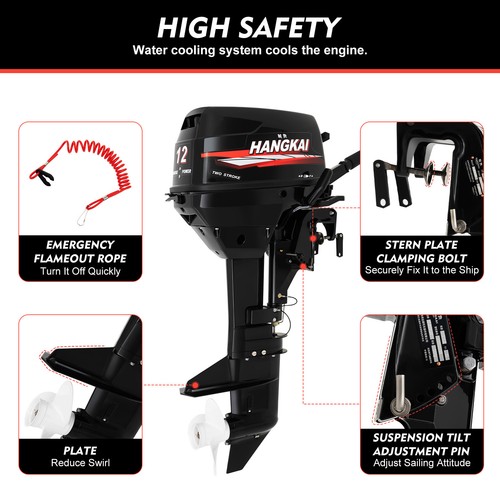

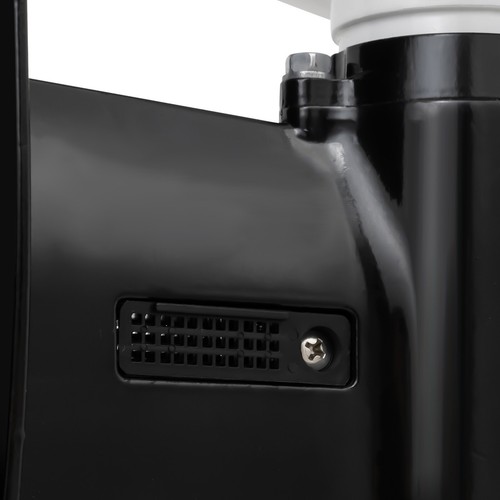

Excellent Heat Dissipation: Its water cooling system helps to cool the motor and has better performance. The design of the vent can also extend its service life.

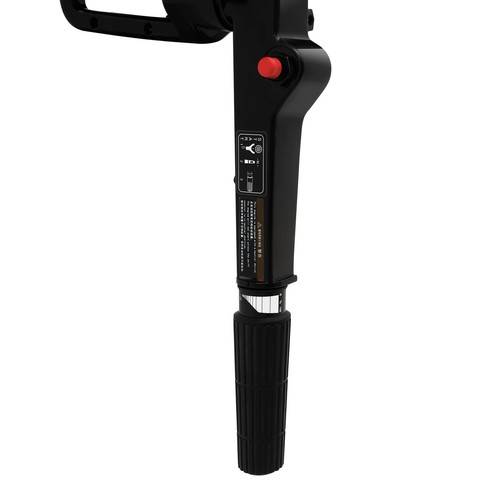

User-friendly: The ergonomic control handle allows you to turn easily. The equipped silencer brings you a quieter sailing experience. And the 6.34Gal external oil tank saves you the trouble of adding oil frequently.

Premium Material: This product is made of high-quality aluminium, which is fracture-resistant, corrosion resistance, acid resistance, and not easy to deform, making it suitable for use in water.

Easy to Install: Due to its simple structure and complete accessories, you can easily install it on your boat and have a more comfortable sailing experience.

Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

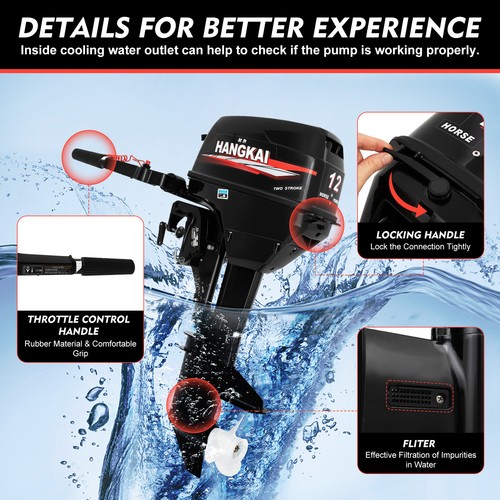

Silencer Cover: The silencer cover can absorb the noise generated by the fan through the internal sound-absorbing material, thus providing a quieter working environment.

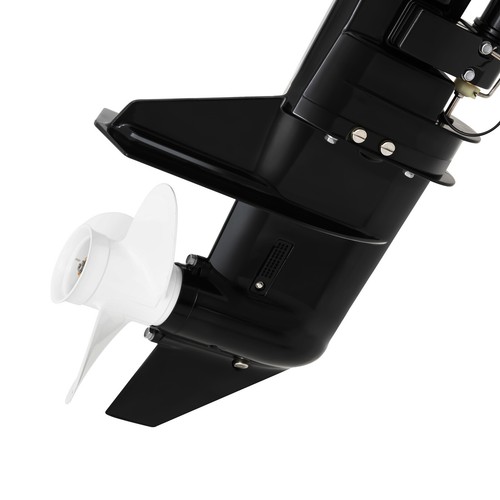

Three-blade Propeller: The three-blade propeller and streamlined design can reduce water resistance and provide greater power during operation.

Anti-swirl Plate: The anti-swirl plate can effectively reduce the turbulence of the waves and avoid water-wetting clothes.

Clamping Device: The included clamping device makes you easily adjust the position of the outboard motor according to the height of the tail of the hull for better propulsion.

Application This outboard motor applies to small ships within 19.69ft length and 661lbs weight, such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It is widely used in fishery, aquaculture, outdoor exploration, etc.

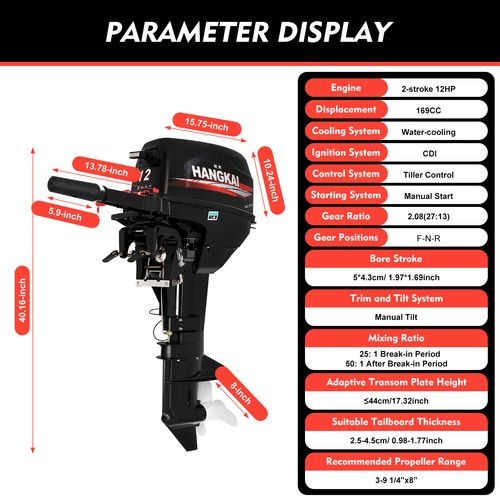

Specifications Color: Black Material: Aluminum Alloy Displacement: 169CC Cylinder: 2 Horsepower: 12HP Cooling System: Water-cooling Ignition System: CDI Control System: Tiller Control Starting System: Manual Start Trim and Tilt System: Manual Tilt Gasoline Type: #92 Gasoline Mixing Ratio: Fuel:Oil = 25:1 for New Machines. Break-in Period 10 Hours 50:1 Recommended Lubricant: 2 Stroke Lubricating Oil Speed (r/min): 4500-5500 Speed: 8-30 km/hour /4.97-18.64 miles/h Gear Positions: F-N-R Gear Ratio: 2.08(27:13) Number of Propeller Blades: 3 Suitable Number: 2-3 People Suitable Tailboard Height: ≤44cm/17.32inch Suitable Tailboard Thickness: 25-45cm/ 9.84-17.72in Length of Vessel Used: ＜ 6m/ 19.69ft Weight of Vessel Used: ＜300kg/ 661lbs Thrust: 300-800kg/661-1763lbs for This Year Speed 15-30 km/hour ( Depending on the Environment, Waters, Hull Load Speed Will be Different ) Bore*Stroke: 50*43mm/ 19.69*16.93in Recommended Propeller Range: 3-8.9"x8.5” Standard Fuel Tank Capacity (External Oil Tank): 24L/ 6.34Gal Silencer Size(L*W): 40*26cm/15.75*10.24inch Product Height: 102cm/40.16inch Package Size: 108*68*41cm/ 42.5*26.77*16.14in Net Weight: 29.9kg/ 65.92 lbs Gross Weight: 34.4kg/ 72.75 lbs

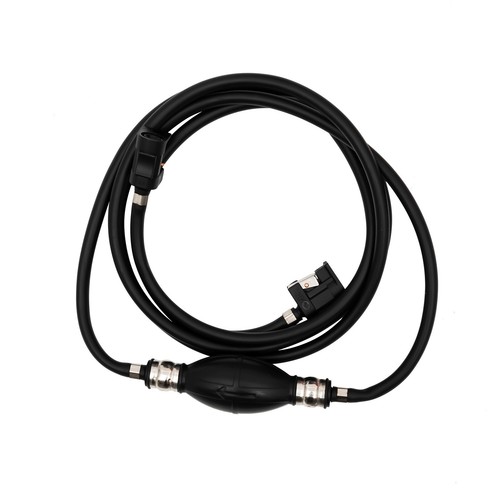

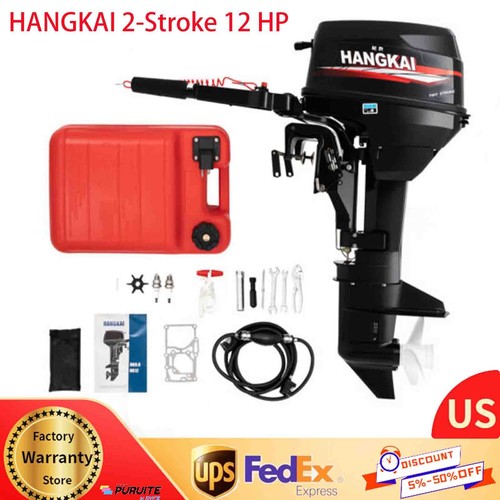

Package Included 1* Outboard Motor 1* Flameout Rope 1* Oil Pipe 1* 24L Fuel Tank 1* Split Pin 1* Spark Plug 1* Water Pump Impeller 1* Starting Rope 1* Paper Pad 1* English Instruction Manual All Needed Accessories

Notes

• Please note that this product must be started in water, and it is not allowed to start the engine on shore.
• Please note that the two-stroke outboard engine must use a mixture of 92 # gasoline and two-stroke engine oil. In addition, gasoline and oil must be premixed and stirred evenly before being poured into the tank.
• Please note that the running-in period is about 10 hours or one month. During the running-in period, do not drive with a high throttle.
• The volume ratio of gasoline to oil during the running-in period of the new engine is 25:1. After the running-in period, the volume ratio of gasoline to oil is 50:1.
• Replace the gear oil after the running-in period, and the second replacement time is after 100 hours or about 6 months;

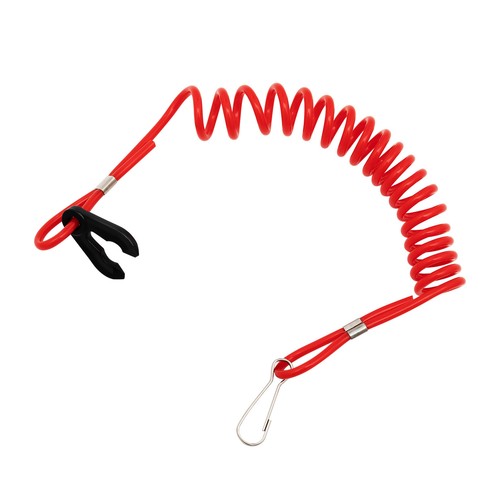

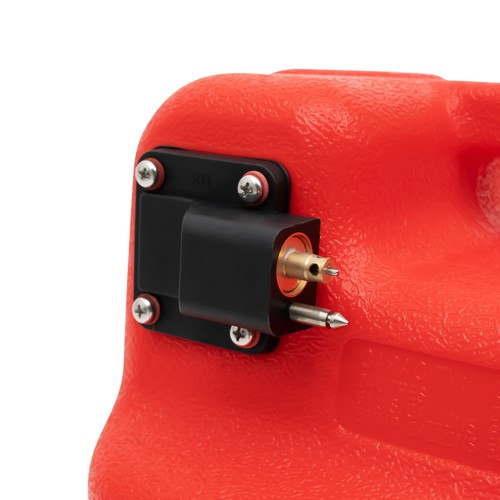

• When the outboard motor is started, loosen the exhaust screw on the fuel tank cover counterclockwise. The emergency flameout rope shall be inserted, and the other end shall be placed on the wrist or belt.
• When the motor has no water outlet, please stop using it immediately, and then check the water pump impeller or check whether the water outlet is blocked.
• To avoid scratching the cylinder, please do not do the following: start the motor in the water；use the motor when it stops cycling water.
• Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
