 Car Bluetooth Rearview Mirror With 7" Display + Backup Camera +4 Parking Radar

    SAVEBASE is a customer satisfaction oriented online business company supplying you with the best valued and affordable accessories and parallel devices for your personal digital equipments. Enjoy peace of mind shopping experience with us.

© SAVEBASE.com All Rights Reserved


Only USD 136.49 +P&P USD*
 Product Info Jump to :: Specifications :: What's in the Box

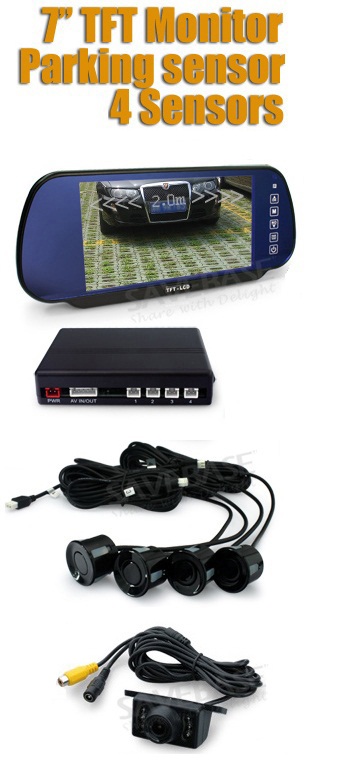

Complete Car Reversing Set [ 4 Parking Sensors - Buzzer - Rearview Mirror ]

Product Description

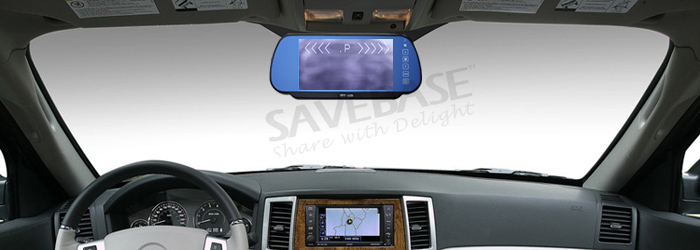

Unit comes with a bluetooth rear view mirror with a built-in 7" color LCD monitor, a day/night IR color camera with wide angle view, 4 parking sensors, a central controller box, a warning buzzer and all accessories needed even including a drill bits to allow you to install the the whole system easily. The mirror monitor can be installed by just clipping on the existing rear view mirror. Works exactly like a rear view mirror when the monitor is off.

With backup rear view video and parking sensors installed, drivers can lower the risk of collision when backing up or parallel parking. The system will work automatically to detect the obstacles at the rear of your car at any time, and show the camera image on the rear view mirror LCD screen.

Bluetooth Mirror Monitor
  • Front panel soft touch buttons. (also can be operated by remote control)
  • Compatible with most bluetooth phones. Caller number(up to 13digitals) display on the LCD screen.
  • Built in two speakers and one microphone for hearing and talking.
  • Voice dialing enable you make private conference. (need phone supported)
  • Perfect voice quality with echo-cancellation and noise suppression technology.
  • Automatic display rear view image when the car is on reverse.
  • Can display camera image all the time if connected to DC 12V.
  • Rear view mirror with a built-in digital 7" color LCD screen.
  • Clip-on the existing rear view mirror, very easy to install.

Camera and Sensor
  • Day/night IR color camera with various installation ways.
  • 4 parking sensors with flush installation on the bumper.
  • High-volume warning buzzer.
  • Central AV controller box for easy connection.
  • Total 7M (21ft) video cable. (extra length available)
  • 12V DC power input.
  • All parts are made with top grade quality & material.

Different Alarm Sound

While backing up your car at the distance between 6ft and 0ft away from the obstacle the parking sensor will alert the driver with three different alarm sounds the distance between the obstacle and the car.

The rear view camera has a wide angle of view, allows you to see what is behind the car.
Model Awareness Distance Sound
LCD Buzzer
Alarm Items		 Safe Mode 130 ~ 180cm Bi...Bi...
Safe Mode 90 ~ 130cm Bi..Bi..
Alarm Mode 60 ~ 90cm Bi.Bi.
Alarm Mode 40 ~ 60cm BiBi
Danger Mode 0 ~ 40cm Biiii

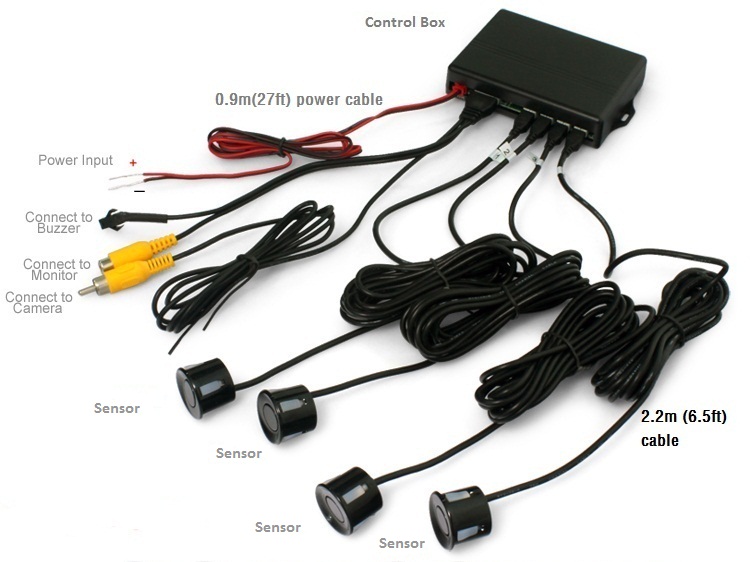

Wiring Instructions
Click to check Working diagram

Rear View Camera for Free

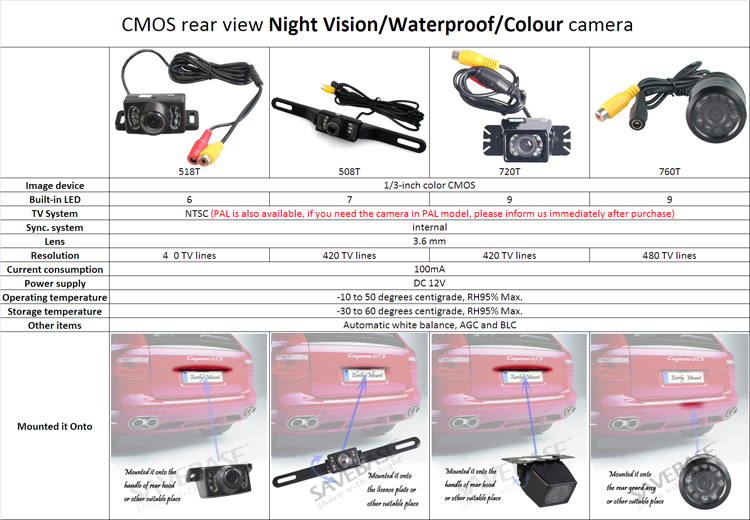

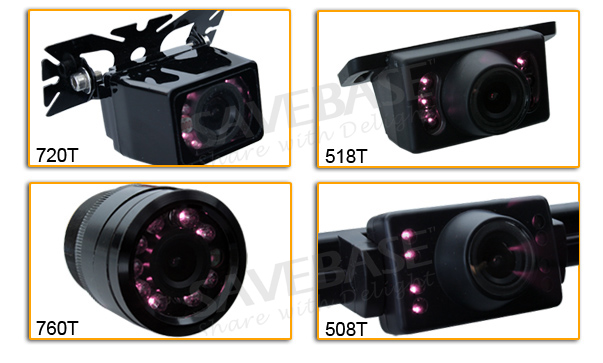

This kit is used for 12v vehicle, please leave a message with your choice (518T, 508T, 720T, or 760T)

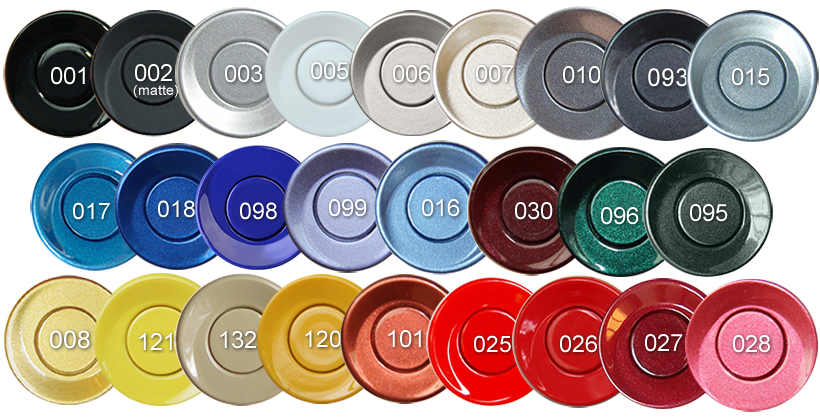

Please choose color and leave a message for us

Note: No sensor / color for chrome bumper. All the sensors can be painted. Please give us the certain color number.
 Specifications
Monitor Specifications
Screen Size 7 Inch
Operating Distance 10 Meters
Power DC 12V
Power Consumption 6W
System PAL / NTSC (AUTO)
Horizontal Resolution 420 TV Lines
Brightness 400
Screen Format 16 : 9
Contrast 350 : 1
Nominal Voltage 9 ~ 15V
Working Environment -20c ~ 65c
Mounting 6 ~ 8.5cm (H) x Any length
Dimensions
Parking Sensors and Buzzer
Obstacle Detection Range 0 ~ 5.4ft (0 ~ 1.8M) *Distance will be shown on the monitor screen
Warning buzzer volume Approx. 83dB
Video Out 1Vp-p, 75Ohm
Power 12V DC / 100mA
 What's In
  • 1 x Bluetooth Touch Button Mirror
  • 1 x Video and Power Cable for Monitor
  • 1 x Remote Controller (Batteries are not included)
  • 1 x English Manual
  • 1 x Rear View Camera (Four models for you to choose.Or we will send 508T as default)
  • 1 x 5M Extended Video Cable
  • 1 x Control Box
  • 4 x Sensors
  • 1 x Buzzer
  • 1 x Drill Bit
  • 1 x Power Cable
  • 1 x Install Manual
