K6 Mini-lube Portable, Manual Greasing System One Handed Greasing on 2040-parts.com

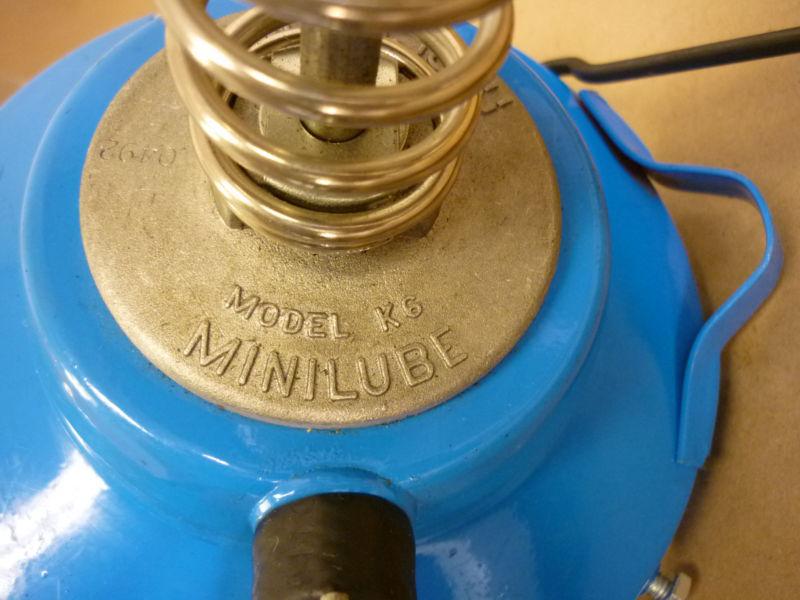

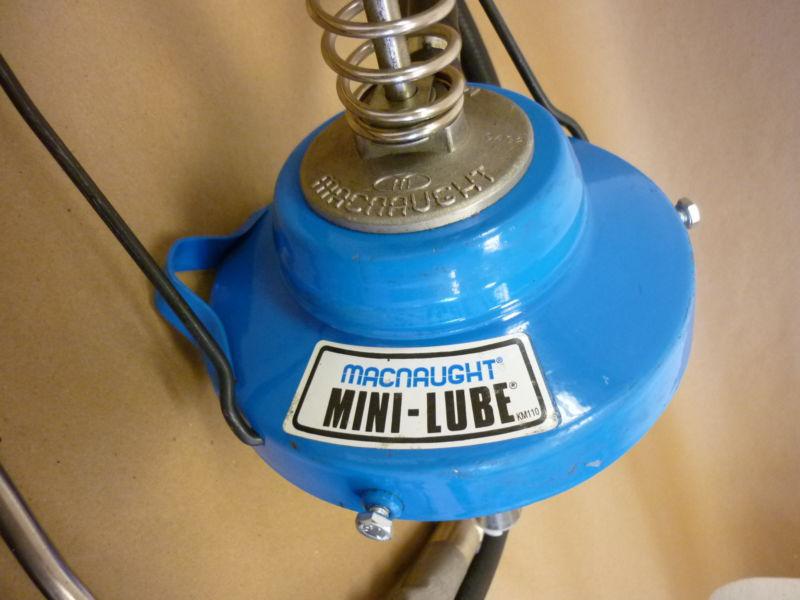

 The K6 MINILUBE® is a portable, manual greasing system designed for use both in workshop environments and for on site applications. Macnaught produces models to suit pail sizes from 2.5 kg (5 lbs) to 5 kg (11 lbs) with depths of 146 mm to 225 mm.

Features

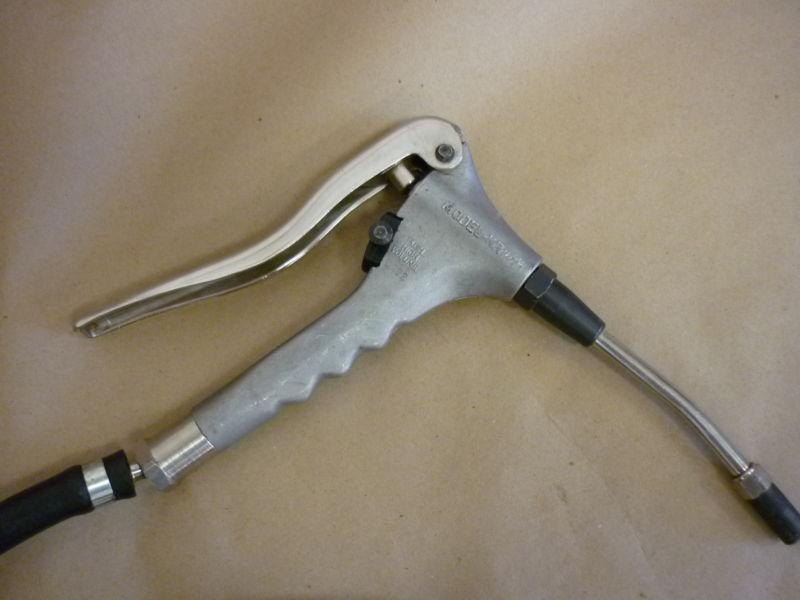

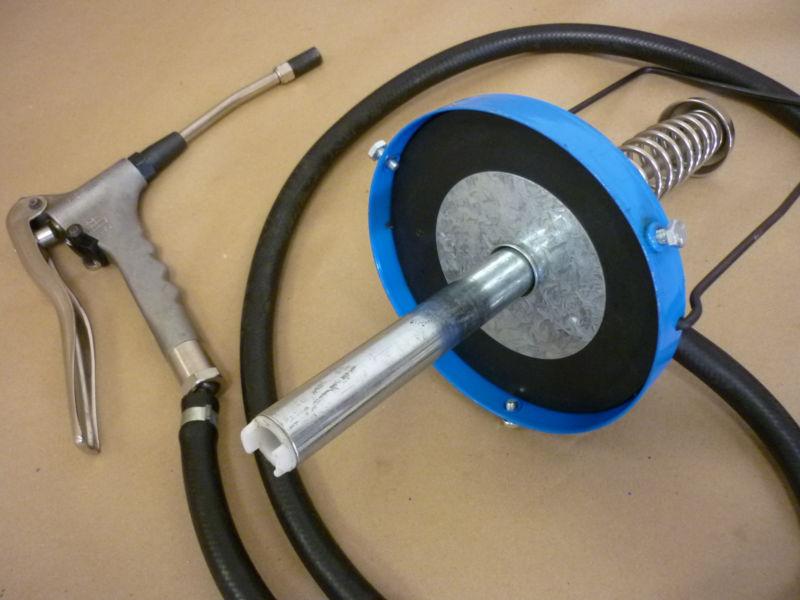

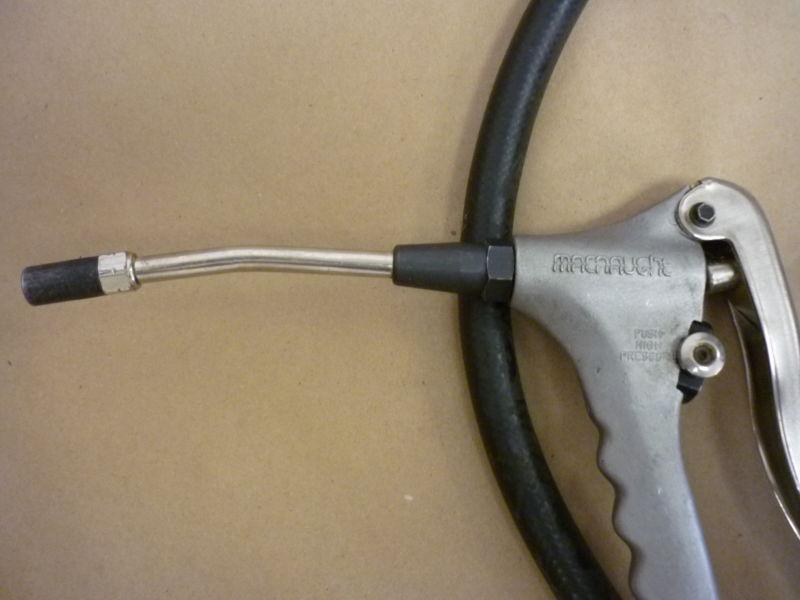

·        includes pump unit, lid, rubber edged follower, 1.5 m (5 ft) x 1⁄2” ID delivery hose, and the high pressure, high volume KR grease gun (all components also available separately)

·        K6-24 contains the above items plus a 2.5 kg (5 lbs) refillable container (KT5), while the K6-67 contains the above items plus a 5 kg (11 lbs) refillable container (KT6)

·        spring loaded pump system provides 30 shots of grease

·        suitable for greases up to and including NLGI No.2

·        360° swivel to prevent hose kinking

·        fully sealed to prevent contamination

Specifications

·        wetted components:
aluminium, steel, brass and nitrile rubber

·        gun pressure (on high pressure):
up to 69,000 kPa/10,000psi/690 bar

·        output:
approx. 1.25gms on the high volume switch
approx. 0.45gm on the high pressure switch
(to clear a blocked or seized nipple)
