Lot 2 Panel Mount 15a Thermal Circuit Breakers Protectors Fuses 2002-002-150 on 2040-parts.com

US $7.99
Location:

Springfield, Tennessee, US

Springfield, Tennessee, US
Returns Accepted:Returns Accepted Refund will be given as:Money Back Item must be returned within:14 Days Return policy details:Any item may be returned for a refund within (14) days. Excludes shipping costs or items specifically listed "as is." Return shipping will be paid by:Buyer Restocking Fee:No Part Brand:Mechanical Products Inc Manufacturer Part Number:2002-002-150



sse2200UC6D
.06

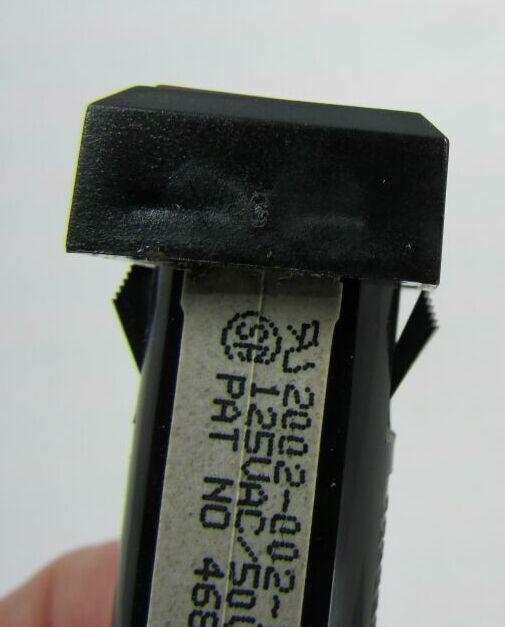

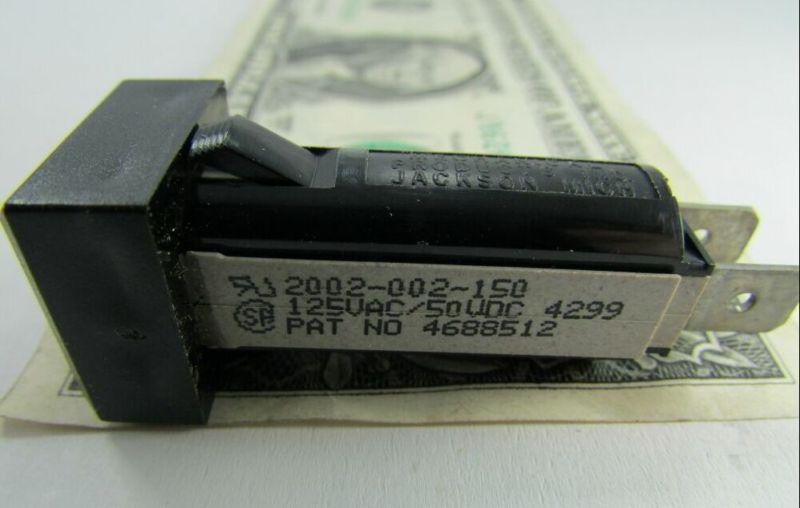

This is a multiple identical item listing for Brand New Mechanical Products Inc. Panel Mount 15A 125VAC 50VDC Single Pole Thermal Push-To-Reset Circuit Breakers, Part Number 2002-002-150.  Each bid quantity is for a Lot of Two (2) Circuit Breakers.  You may bid / buy any number of lots, up to the total quantity available above.

These were purchased at a factory closing earlier this year, and they were brand new in unmarked bulk boxes.  We repackaged them in heavy Ziplok bags for resale.  Just drill a 5/8" hole in your metal panel, then pop it into place.  Attach a couple of 1/4" crimp connectors and you're done.


According to the calipers

Overall length:  2.119"

Overall width (at top):  .749"

Body diameter:  .620"

Mounting hole size required:  5/8"


According to the manufacturer:


Features

-- Replaces Slow Blow Glass Cartridge Fuse

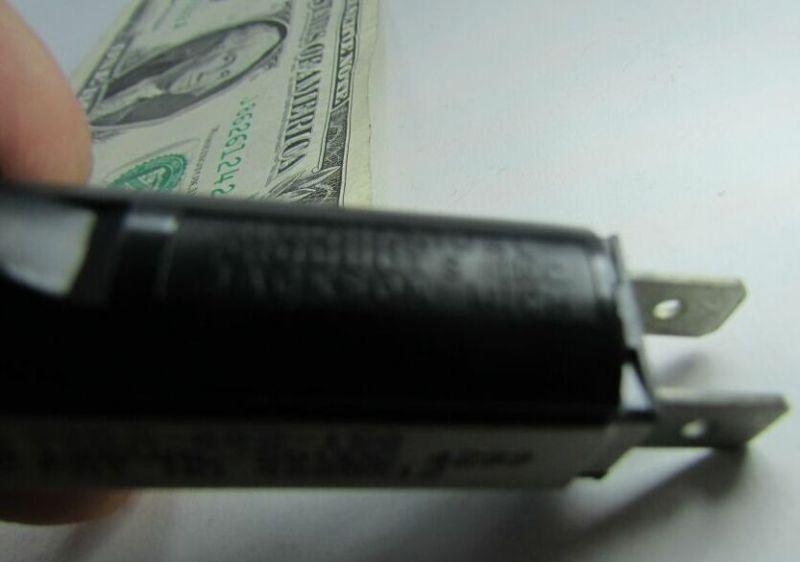

-- .250” (6.35mm) Quick Connect Terminals
-- Snap-In Mounting

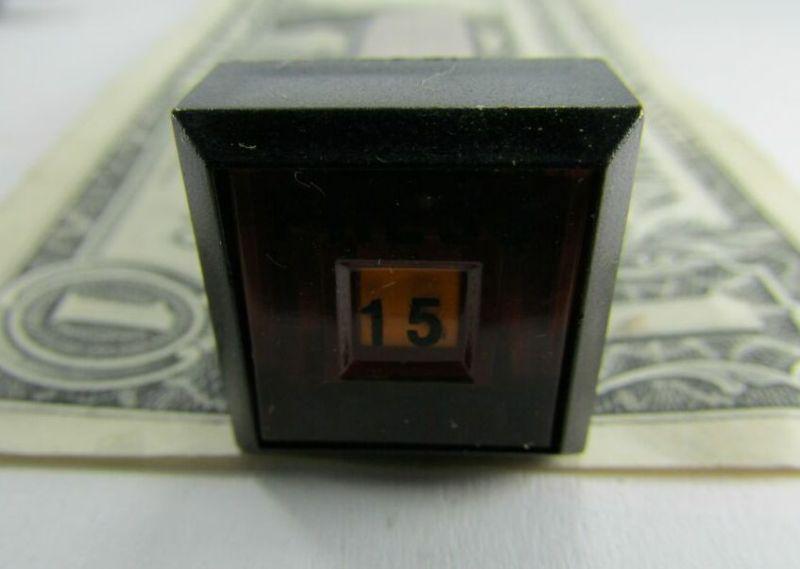

-- Visual Trip Indicator
-- Push Button to Reset Breaker

Electrical Specifications

Electrical Characteristics (@ 25°C)
Calibration: May trip between 101% and 134%, but must trip at 135% of rating within one hour at +25°C
Maximum Operating Voltages: 50 VDC; 125 VAC, @ 50/60 Hz
Dielectric Strength: 1500VAC RMS
Resettable Overload Capacity: Ten times rated current
Reset Time: 10 to 60 seconds typ.
Interrupt Capacity: 1000 Amps @ 250 VAC, 50/60 Hz. and 50 VDC in accordance with UL standard 1077

Mechanical Characteristics

Termination: .250 (6.35) Quick Connect Terminals
Mounting: Snaps into panel from front
