New Revtech 125" Polished & Chrome Engine Motor Harley Evolution Evo Chopper on 2040-parts.com



Our Customer Support is Available Please Call Us at 610-754-8500 with Any Questions



BRAND NEW!

PART # 680240


Polished & Chrome Finish

FITS:

1984-1999 Touring, Softail, FXR & Dyna models.

Also fits Chopper/Bobber/Rigid applications using Evolution engine

Warranty:

2 Years / 20k Miles

Customer support

Our customer support is available please call us at 610-754-8500 with any questions



Engine Specs:

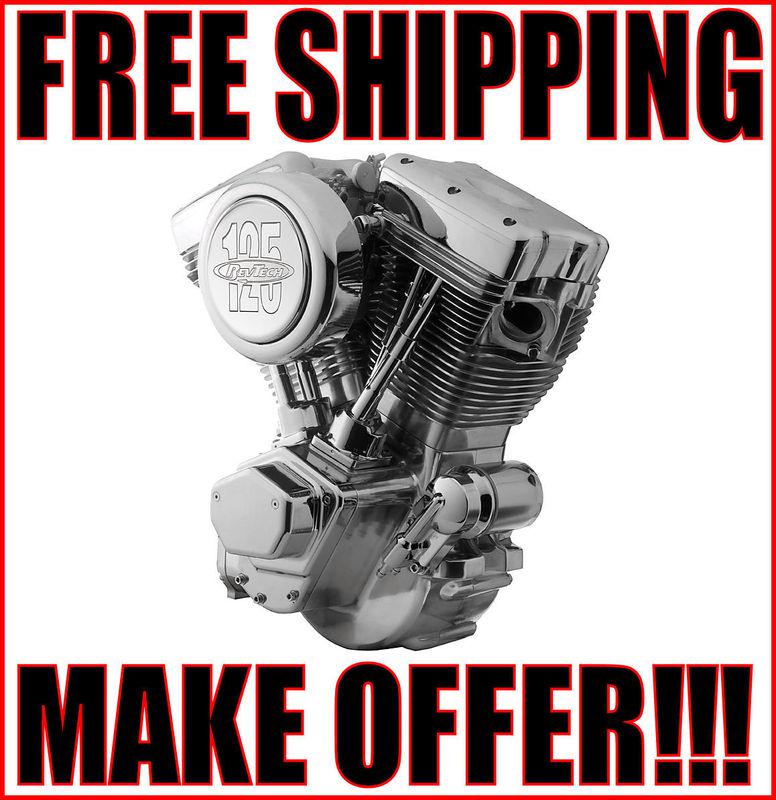

RevTech® 125" Engine " BIG INCH MUSCLE!
Introducing the all-new RevTech 125"! With more power, dynamite looks, and greater dependability than ever before, the RevTech 125" offers up-grades over traditional v-twins that make it truly one of the "�best of the best." Starting with a clean slate, our engineers incorporated the best features and technology the market has to offer to create for you a fire-breathing RevTech 125" engine. These masterpieces are ASSEMBLED IN THE USA with parts sourced from some of the biggest and best names in the business. We're talking about brands like Manley, JE Pistons, Daytona Twin Tec, Andrews, Mikuni American Corp., Timken and many more.

RevTech is known for it's extreme attention to detail and it's evident in this engines special styling, amazing reliability and unreal "�seat of the pants" torque. And we didn't stop there! We included increased fin area on the cylinders and heads and state of the art internal piston oilers, creating maximum temperature control and increased engine life. The traditional breather system with gear has a long proven track record, specially designed "�D'-shaped intake and manifold ports provide exceptional controlled air flow and the 45mm Mikuni carburetor provides the 125" monster all the fuel it needs.

Earning a position in the RevTech® line of engines is no easy task. Only after rigorous testing can an engine take its place among a legacy of motors proven over two decades of service. Before putting the new 125" into production, we subjected it to durability testing by Optimum Power Technology in Bridgeville, PA., where the engine withstood a brutal non-stop 100-hour beating. During testing varying loads were placed on the engine from a 950 rpm idle up to 5,000 rpm's for various lengths of time with brief rest periods in between to cool off and go again. The average duration of each cycle was 33 minutes and this cycle was performed more then 180 times during the 100-hour test period. We go to these lengths to ensure that each and every RevTech® engine has earned its place among the finest engines available today.

These new engine assemblies will replace 1984 thru 1999 Evolution® style engines.
Assembled with Pride in the U.S.A.

Crankcases

•Cast from 356-T6 aluminum with wall thickness optimized for
maximum strength

•Blind case bolts for cleaner appearance
•Smooth crankcase deck to cylinder base profile for
cleaner appearance
•7/16" threaded cylinder studs proven in drag racing applications

Flywheels

•Flywheels forged from 4140
•Pinion and sprocket shaft are pressed in and keyed from 8620 gear material ground and hardened.
•Connecting rods forged from 4340 chromemoly steel - the strongest material available for these applications
•Larger straight 1 1/2"-diameter pressed-in crankpin using 8620 gear material

Oiling System

•Same reliable Evolution style oil system with the addition of internal piston oilers for better heat dissipation

•3:1 ratio oil pump drive gears and high volume oil pump enable
significantly increased lubrication and cooling

Cylinders

•4.250"-bore with 4.410"-stroke for ideal high torque/high
horsepower output

•More fin area for increased cooling

•Machined fin edges for better appearance

•Forged JE slipper-skirt pistons

Heads

•New RevTech® roller rockers

•More fin area for increased cooling

•Machined fin edges for better appearance

•New compression releases for easy starting

•New "D"-shaped intake ports and manifold

Carburetion

•Mikuni HSR 45 from Mikuni American Corp.

•Intake manifold matched to heads for ideal flow efficiency

•Low profile air cleaner design for high performance while providing improved rider comfort

Ignition

•Self contained solid-state ignition from Daytona Twin Tec

Cam

•Andrews EV72 .560" lift cam for great performance and easy starting



Our Customer Support is Available Please Call Us at 610-754-8500 with Any Questions

SHIPPING:

This is in stock, pickup is fine (please contact us prior to purchase to arrange)

We do ship to international addresses. Buyers are responsible for any international customs and duties that may apply.

It is highly recommended that international buyers contact us prior to purchase for an exact quote.

For home delivery a lift gate might be required, this is a $50 fee

We also recommend our upgraded freight carrier, this is a $50 as well

Our Customer Support is Available Please Call Us at 610-754-8500 with Any Questions

PAYMENT:



WE ACCEPT PAYMENT BY PayPal AND CREDIT CARD, CONTACT US FOR OPTIONS.

PAYMENT NEEDS TO BE RECEIVED WITHIN 7 DAYS OF PURCHASE OR THE TRANSACTION MAY BE CANCELLED.

WE DO CHARGE SALES TAX IN PA ( 6% ). STATE TAXES WILL BE CALCULATED AT CHECKOUT.

CREDIT CARDS:

CONTACT INFORMATION:

OUR PHYSICAL/MAILING LOCATION IS

315 BIG RD(RT-73) ZIEGLERVILLE, PA 19492

PHONE - 610-754-8500

FAX - 610-754-8501

HOURS - 10-6 Mon-Fri, 10-5 Sat

SHIPPING:

SHIPPING COSTS ARE FOR THE LOWER 48 STATES (CONTINENTAL USA) ONLY.

IF YOU ARE OUTSIDE THE LOWER 48 STATES SHIPPING IS NOT FREE.

PENNSYLVANIA RESIDENTS MUST PAY 6% STATE SALES TAX.

WE REQUIRE A PHYSICAL ADDRESS BE PROVIDED WITH PAYMENT

DEPENDING ON YOUR LOCATION WE WILL SHIP USPS PRIORITY MAIL,

UPS GROUND TO MAKE SURE IT GETS THERE ASAP WITHOUT ANY ADDITIONAL COSTS

RETURNS:

WE OFFER A 60 DAY RETURN POLICY.

BUYER PAYS RETURN SHIPPING

WE DO NOT ACCEPT RETURNS ON USED OR INSTALLED PARTS

PLEASE SEE FULL RETURN POLICY FOR MORE INFORMATION

Our Customer Support is Available Please Call Us at 610-754-8500 with Any Questions
