Pontiac Mini Obd2 Obdii Wireless Bluetooth Scanner Diagnostic Code Reader Tool on 2040-parts.com

US $49.00
Location:

Live Oak, Florida, United States

Live Oak, Florida, United States
Pontiac Mini OBD2 OBDII Wireless Bluetooth Scanner Diagnostic Code Reader Tool, US $49.00, image 1
Condition:New Brand:Jurassic Classic Auto Parts Other Part Number:car automobile Manufacturer Part Number:Scans OBD-2 OBD-II ECM Computer NOS blue tooth

Mini Interface V1.5 Bluetooth OBD-II OBD2 Auto Car Diagnostic Scan Tool
100% Brand-new,  Quality Assurance!!
Please make sure your car is supported by OBD-II or EOBD (most vehicles 1996 and up)
With this module you can read all of the parameters from your automobiles computer wirelessly to your SmartPhone, without the need of expensive/costly equipment or a trip to the mechanic!  Even reads 1/4 Mile times and mpg and easily change from English to metric standards! See the complete list of details below!

Features:

  • Very user-friendly, easy to learn, and easy to install.

  • Supports all OBD-II Protocols (Works with all OBD-II compliant vehicles 1996 and up).

  • Wireless (Bluetooth) 5~10meters.

  • Works with all OBD-II compliant vehicles

  • Wireless (Bluetooth) 5~10 meter

  • Software included for Palm, PDA, Mobile (Android apps not included. There are many compatible and free apps available for Android, which are required for use of this product; they can be found in your app store.  The free Android app I use is from the Google play store; it is called "Torque." {Description of Torque capabilities can be found in paragraph at the end of this listing})

  • Software included for Windows PC

  • Software included for Windows Smartphone

  • Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

  • Clear trouble codes and turn off the Malfunction Indicator Light (MIL or "Check Engine" light)

Display current sensor data including:

  • Engine RPM

  • Calculated Load Value

  • Coolant Temperature

  • Fuel System Status

  • Vehicle Speed

  • Short Term Fuel Trim

  • Long Term Fuel Trim

  • Intake Manifold Pressure

  • Timing Advance

  • Intake Air Temperature

  • Air Flow Rate

  • Absolute Throttle Position

  • Oxygen sensor voltages/associated short term fuel trims

  • Fuel System status

  • Fuel Pressure

  • 0-60 mph/kph times
  • 1/4 Mile times

Multi-Protocol Support:

  • SAE J1850 PWM(41.6Kbaud)

  • SAE J1850 VPW(10.4Kbaud)

  • ISO 9141, KWP2000

  • ISO9141-2(5 baud init,10.4Kbaud)

  • ISO14230-4 KWP(5 baud init,10.4 Kbaud)

  • ISO14230-4 KWP(fast init,10.4 Kbaud)

  • ISO15765-4 CAN(11bit ID,500 Kbaud)

  • ISO15765-4 CAN(29bit ID,500 Kbaud)

  • ISO15765-4 CAN(11bit ID,250 Kbaud)

  • ISO15765-4 CAN(29bit ID,250 Kbaud)

  • SAE J1939 CAN(29bit ID,250*Kbaud)

  • USER1 CAN(11*bit ID,125*Kbaud)

  • USER2 CAN(11*bit ID,50*kbaud)

  • CAN Bus

Specifications:

  • Item Weight: 45.36 g  (1.6 oz)

  • Item Size: 7cm x 4cm x 2cm (2 3/4" x 1 9/16" x 3/4")



Package Includes:

  • 1x EOBD OBD2 Bluetooth Diagnostic Interface

  • Windows Software download here (This software is not required for use if using your android app or non-Windows devices.)


Compatible Vehicles:

  • All vehicles sold in the USA during or after 1996 or in European Union after 2001




This is an example of one of the many Android apps which are compatible with this module (also this is the app I use):
(Android apps not included.)

"Torque" and "Torque Pro" for Android devices ( following description is largely from Google play store)

Torque 1

Torque 2Torque 3

Torque 4Torque 5		See what your car is doing in realtime, get OBD fault codes, car performance, sensor data and more!

Torque is a vehicle / car performance / diagnostics tool and scanner that uses an OBD II Bluetooth adapter to connect to your OBD2 engine management / ECU

Layout your own dashboard with the widgets / gauges you want!

It can use the GPS to provide tracker logs with OBD engine logging so you can see what you were doing at any point in time

It can also show and reset a DTC / CEL / fault code like a scantool. Helps you fix your car and helps keep repair costs down!

Torque also features:

* Dyno / Dynomometer and Horsepower/HP & Torque
* Can read Transmission Temperatures (vehicle dependant)
* 0-60 speed timings - more accurate than just using plain old GPS - see how fast your car is (or truck )
* CO2 emissions readout
* Customisable dashboard & profiles
* Video your journey using the Track Recorder plugin with onscreen OBDII data overlay - a black box for your car/truck!
* Automatically send GPS tagged tweets directly to twitter (for example if you are going on a road trip)
* Massive fault code database for lookup of fault codes from different manufacturers
* Theme support (choose from different themes to change the look of your dashboard)
* Send logging information to web or email CSV/KML for analysis via excel / openoffice reader
* Heads up display / HUD mode for night time driving
* Compass (GPS Based) that won't suffer magnetic interference
* GPS Speedometer/Tracking and realtime web upload capability - see what you were doing and your engine, at a point in time
* Turbo boost feature for vehicles that support MAP and MAF sensors (VW & Golf / Audi / Seat etc supported)
* Alarms and warnings (for example if your coolant temperature goes over 120C whilst driving) with voice/speech overlay
* Car dock support
* Graph data
* MPG
* Able to share screenshots to Facebook, Twitter, Google+, Email, etc
* AIDL API for third party apps, A simple Telnet interface for developers to talk to the adapter, and an OBD scanner.
* Works on tablet devices like the Motorola Xoom, Dell Streak, Samsung Galaxy Tab and Nook

Works on any vehicle that uses the OBD 2 standard (most vehicles built after 2000, but can work for vehicles as far back as 1996) if in doubt check with your manufacturer first or look for 'OBD2' on written on a big white label in your engine bay

Works on vehicles made by Ford, VW, GM/Vauxhall/Opel, Chrysler, Mercedes, Volkswagen, Audi, Jaguar, Citroen, Peugoet, Skoda, Kia, Mazda, Lexus, Subaru, Renault, Mitsubishi, Nissan, Honda, Hyundai, BMW, Toyota, Seat, Dodge, Jeep, Pontiac and many more vehicle makes, European, US, Far East, etc. Some vehicle ECUs may support more/less features than others

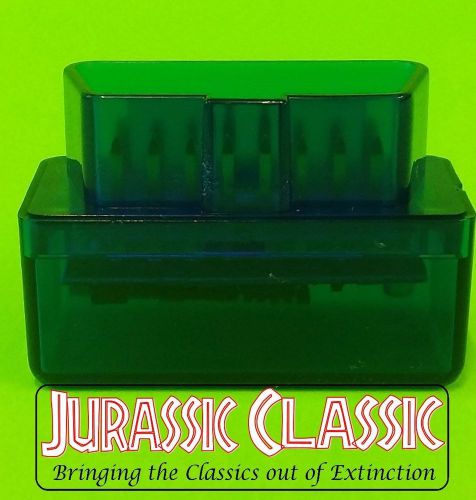

The app works with the Bluetooth OBD2 adapter in this ebay listing. The adapter is small (see pictures) and plugs into the diagnostics socket on the car which gives your phone access.

More features added every release - there are forums at http://torque-bhp.com/forums/ - if you want something added then let me know and I'll try to add it if it is possible! Vehicle ECUs vary in the amount of sensors supported

*PLEASE NOTE* Any reports of hanging or reboots after quitting the app is due to a bug in HTC devices and Galaxy Tab,this can be triggered by using the Pandora/Vlingo/Other BT apps. Disabling Pandoras new bluetooth settings fixes the problem, but HTC/Samsung need to release a fix.Please contact their support and request a fix,Thanks!
