Rockwell Collins Ctl-92 Single Transponder Controller on 2040-parts.com

Location:

Avon, Indiana, United States

Avon, Indiana, United States

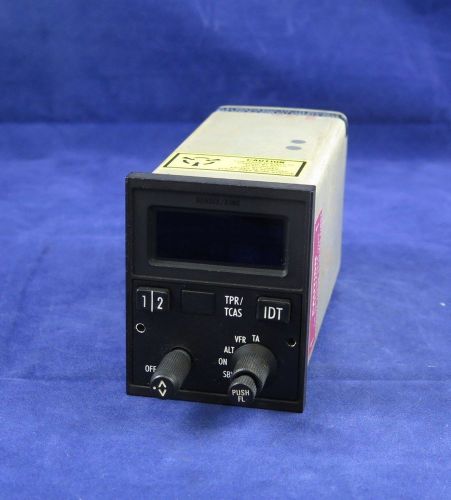

Rockwell Collins CTL-92 Single Transponder Controller, image 1
“Unit is in great condition, only minor wear marks and one dent on top of unit are present. Display is in excellent condition. Unit is fully functional.”
Make:Rockwell Collins Warranty:No Part Number:622-6523-004



CTL-92

ITEM SPECIFICS
  • P/N: 622-6523-004
  • S/N: 7220
  • Mod: 1-4, 7-11, 14-17, 21-22, 25-27
  • Unit was removed from aircraft for a system upgrade.
  • Unit was fully functional at the time of removal.
  • Unit was properly stored in an ESD safe enviornment upon removal.
  • Listing includes CTL-92 only, no additional accessories or paperwork included.
  • Unit may be returned for a refund within 14 days if defective.



FEATURES
  • Digital Display Transponder Control designed to tune TDR-94 and TDR-94D transponders but can be used to tune Proline I TDR-90 when used in conjunction with the CAD-62 Control Adapter
  • Serial tune control unit note: CAD-62 Control Adapter converts serial tuning data to parallel tuning data
  • Provides active and preset frequency display
  • Models available with black or gray bezel (see table below)
  • Models available with 5 or 28 volt lighting (see table below)
  • Models available with variations of OFF/STANDBY/ON/ALT selections (see table below)
  • Models available with dual transponder capability for use one control - two transponder configurations (see table below)
  • Models available with Mode S Transponder Compatibility (see table below)
  • Models available with relay control capability for special applications where relay is utilized to operate 2 transponders with one antenna/encoder (see table below)



SPECIFICATIONS
WEIGHT: 1.2 lbs. DIMENSIONS: 2.375"W x 2.625"H x 7.52"L
TSO: C37c, C34d, C36d, C38e, C40b, C66b, C41c, C74e RTCA DOCUMENT: DO-160A
EUROCAE: MPS/WG 8/1/71; ED-14A DEUTSCHE BUNDESPOST FTZ: A446R2010
ENVIRONMENTAL: DO-160A categoreis /A2C1/B/PKS/ EXXXXXZ/BZ/AZZ EUROCAE ED-14A TEMPERATURE: -30 to +70C
ALTITUDE: 35000 ft. max. SHOCK: 6 g operational
POWER REQUIREMENT: 27V dc (16-32) at 0.25A LIGHTING POWER: 5V ac/dc. 350mA or 28Vdc, 100 mA
LIGHTING COLOR: Blue-white DISPLAY TYPE: Gas discharge
BRIGHTNESS CONTROL: Automatic or external potentiometer ELECTRICAL INPUT/OUTPUT: EIA RS-422A
INPUT/OUTPUT FORMAT:  Commercial Standard Digital Bus (CSDB)
PART NUMBER TRANSPONDER CONTROL DESCRIPTION:
622-6523-001 5V lighting, gray panel, OFF-STBY-ON-ALT controls, Single transponder capability
622-6523-002 28V lighting, gray panel, OFF-STBY-ON-ALT controls, Single transponder capability
622-6523-003 5V lighting, black panel, OFF-STBY-ON-ALT controls, Single transponder capability
622-6523-004 28V lighting, black panel, OFF-STBY-ON-ALT controls, Single transponder capability
622-6523-005 5V lighting, gray panel, OFF-STBY-ON-ALT controls, Dual transponder capability
622-6523-006 28V lighting, gray panel, OFF-STBY-ON-ALT controls, Dual transponder capability
622-6523-007 5V lighting, black panel, OFF-STBY-ON-ALT controls, Dual transponder capability
622-6523-008 28V lighting, black panel, OFF-STBY-ON-ALT controls, Dual transponder capability
622-6523-009 5V lighting, gray panel, STBY-ON-ALT controls, Single transponder capability
622-6523-010 28V lighting, gray panel, STBY-ON-ALT controls, Single transponder capability
622-6523-011 5V lighting, black panel, STBY-ON-ALT controls, Single transponder capability
622-6523-012 28V lighting, black panel, STBY-ON-ALT controls, Single transponder capability
622-6523-013 5V lighting, gray panel, STBY-ON-ALT controls, Dual transponder capability
622-6523-014 28V lighting, gray panel, STBY-ON-ALT controls, Dual transponder capability
622-6523-015 5V lighting, black panel, STBY-ON-ALT controls, Dual transponder capability
622-6523-016 28V lighting, black panel, STBY-ON-ALT controls, Dual transponder capability
622-6523-201 5V lighting, gray panel, OFF-STBY-ON-ALT controls, Single transponder capability, Mode S compatible
622-6523-202 28V lighting, gray, OFF-STBY-ON-ALT controls, Single transponder capability, Mode S compatible
622-6523-203 5V lighting, black, OFF-STBY-ON-ALT controls, Single transponder capability, Mode S compatible
622-6523-204 28V lighting, black, OFF-STBY-ON-ALT controls, Single transponder capability, Mode S compatible
622-6523-205 5V, gray, OFF-STBY-ON-ALT ctls, Dual transponder cap., Mode S compatible, Relay control capability
622-6523-206 28V, gray, OFF-STBY-ON-ALT ctls, Dual transponder cap., Mode S compat, Relay control capability
622-6523-207 5V, black, OFF-STBY-ON-ALT ctls, Dual transponder cap., Mode S compat, Relay control capability
622-6523-208 28V, black, OFF-STBY-ON-ALT ctls, Dual transponder cap., Mode S compat, Relay control capability
622-6523-209 5V lighting, gray, STBY-ON-ALT controls, Single transponder capability, Mode S compatible
622-6523-210 28V lighting, gray, STBY-ON-ALT controls, Single transponder capability, Mode S compatible
622-6523-211 5V lighting, black, STBY-ON-ALT controls, Single transponder capability, Mode S compatible
622-6523-212 28V lighting, black, STBY-ON-ALT controls, Single transponder capability, Mode S compatible
622-6523-213 5V, gray, STBY-ON-ALT controls, Dual transponder cap., Mode S compatible, Relay control capability
622-6523-214 28V, gray, STBY-ON-ALT controls, Dual transponder cap., Mode S compatible, Relay control capability
622-6523-215 5V, black, STBY-ON-ALT controls, Dual transponder cap., Mode S compatible, Relay control capability
622-6523-216 28V, black, STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control capability
622-6523-305 5V, gray, OFF-STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control cap.
622-6523-306 28V, gray, OFF-STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control cap.
622-6523-307 5V, black, OFF-STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control cap.
622-6523-308 28V, black, OFF-STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control cap.
622-6523-313 5V, gray, STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control cap.
622-6523-314 28V, gray, STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control cap.
622-6523-315 5V, black, STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control cap.
622-6523-316 28V, black, STBY-ON-ALT controls, Dual transponder cap., Mode S compat, Relay control cap.
