Seaflo 12v Water Electric Pump For Inflatables Boat Best Bilge Pump Marine Rv on 2040-parts.com

US $49.99
Location:

厦门市, 福建省, China

厦门市, 福建省, China
Condition:New Brand:SEAFLO Structure:Impeller Pump Manufacturer Part Number:SFBP1-G2000-01 Rated Current:8.5 A Country/Region of Manufacture:China Flow Rate:2000 GPH Application:Marine,RV&Campers, Industrial Voltage:12V Power Source:12v DC Duty Cycle:Intermittent Type:Electric pump Certification:CE, ISO9001:2000, RoHS UPC:6970424900115

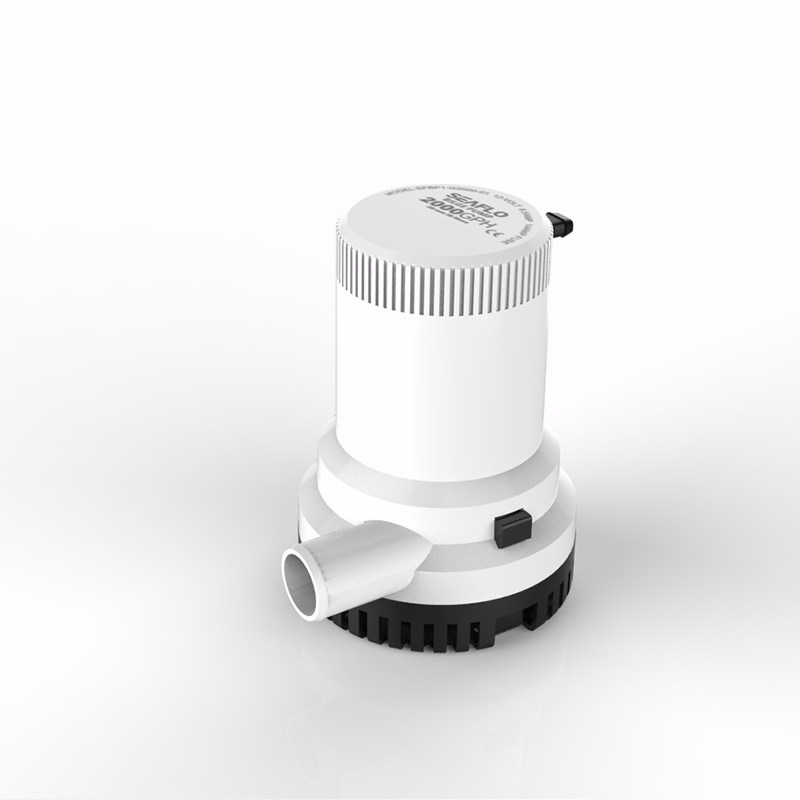

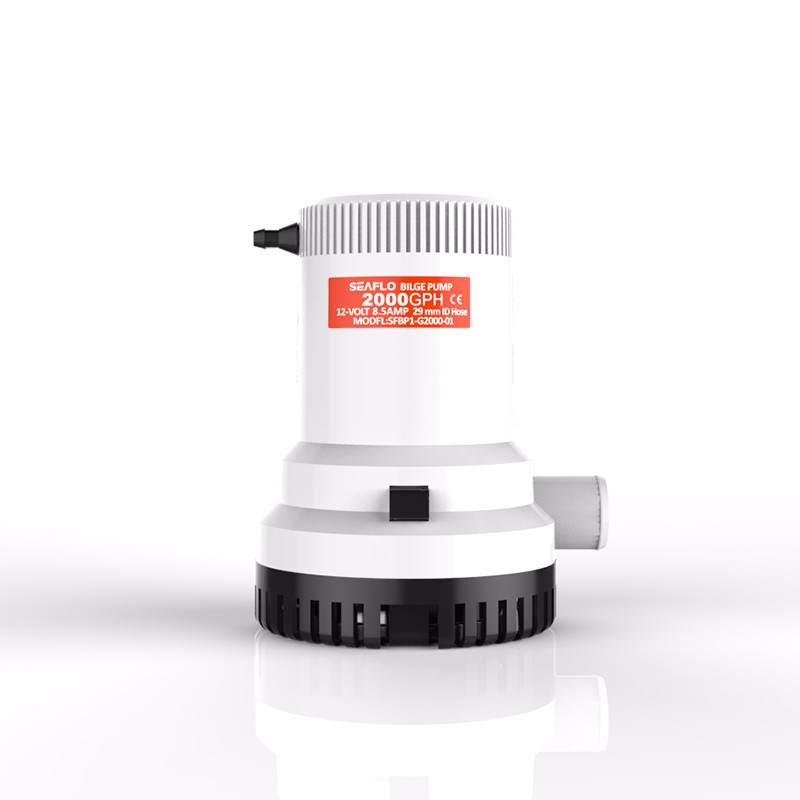

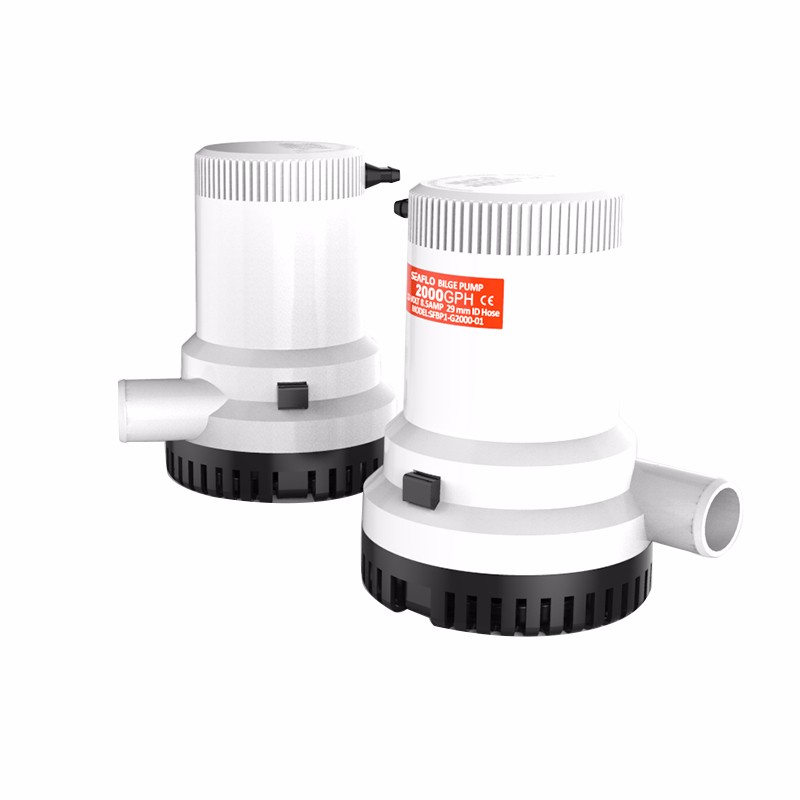

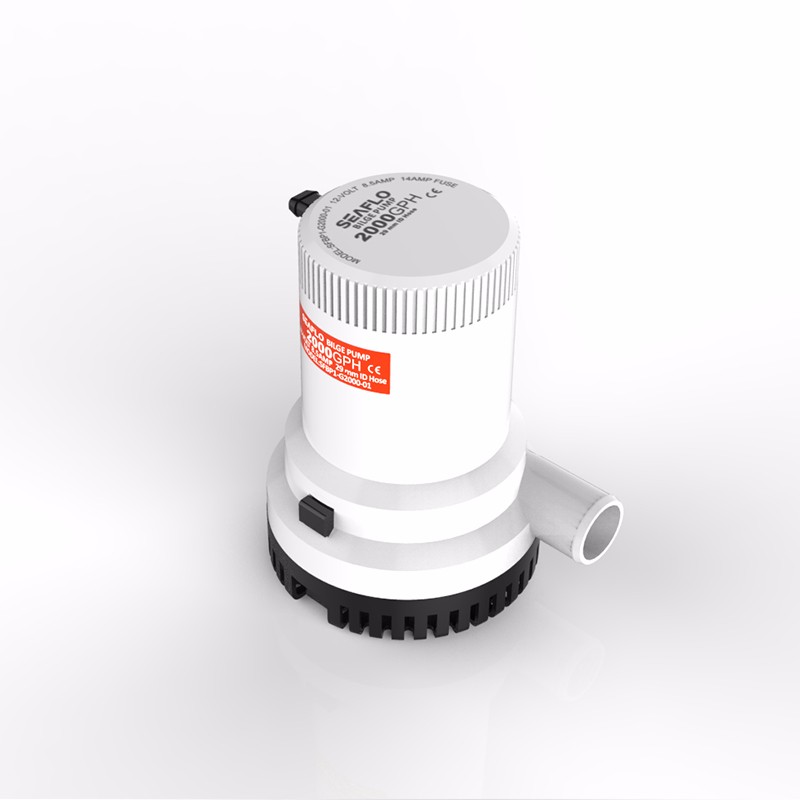

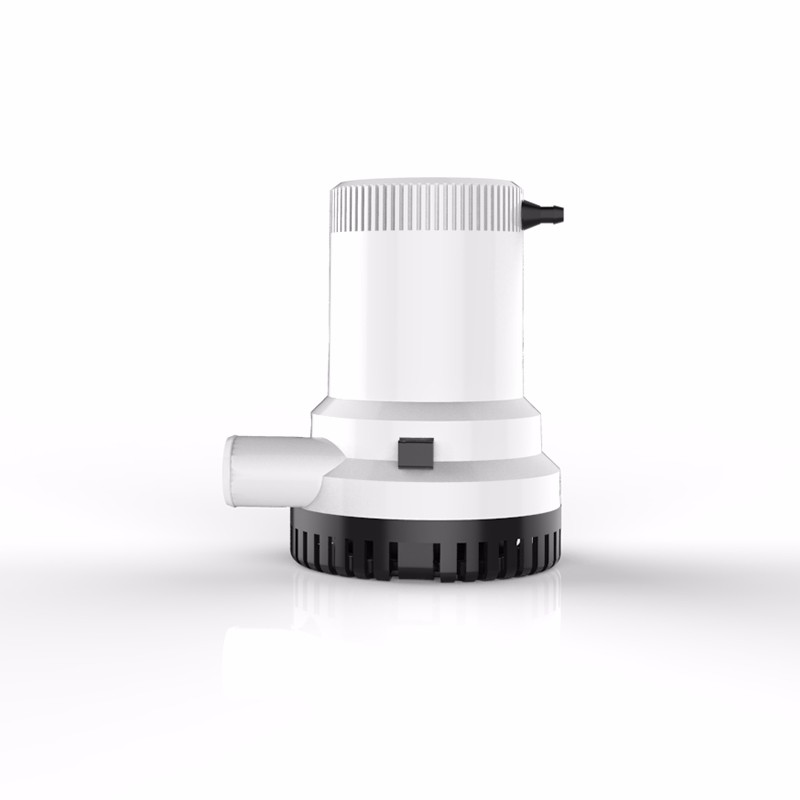

SEAFLO 12V Water Electric Pump for Inflatables Boat Best Bilge Pump Marine RV





Features

  • Pump and switch are stand alone products
  • Compact, efficient, long life motors
  • New mercury free float switches
  • Size: 2000 gph in 12 volt versions
  • Easy clean snap-lock strainer bases
  • Anti-Airlock protection
  • Exclusive moisture tight seals
  • Completely submersible
  • Marine grade blocked wiring
  • Silent and vibrationless operation


Applications

  • Marine
  • RV & Campers
  • Industrial

22




Pump

Liquid Temperature

110°F (43°C) Max.

Priming Capabilities

Not needed flooded suction

Power

8.5 amps max current draw

Max Pressure

Not needed




Motor

Type

Compact, efficient, long life motor

Leads

18 AWG, 1 m long Leads

Temperature Limits

110°F (43°C) Max.

Duty Cycle

Intermittent




Technical Parameters


201404211138206722




STANDARD PUMP CONFIGURATIONS

Model

Flow rate

Volts

Current

Head

Wire lead

Outlet Dia

N.W/G.W

SFBP1-G2000-01

2000 GPH

12V

8.5A

6.0m

1 m

29 mm/1-1/8"

1.13/1.21 kg



Certification

photobank
