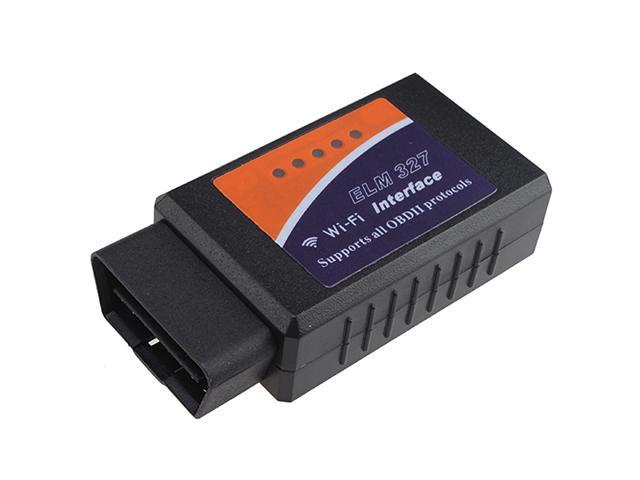

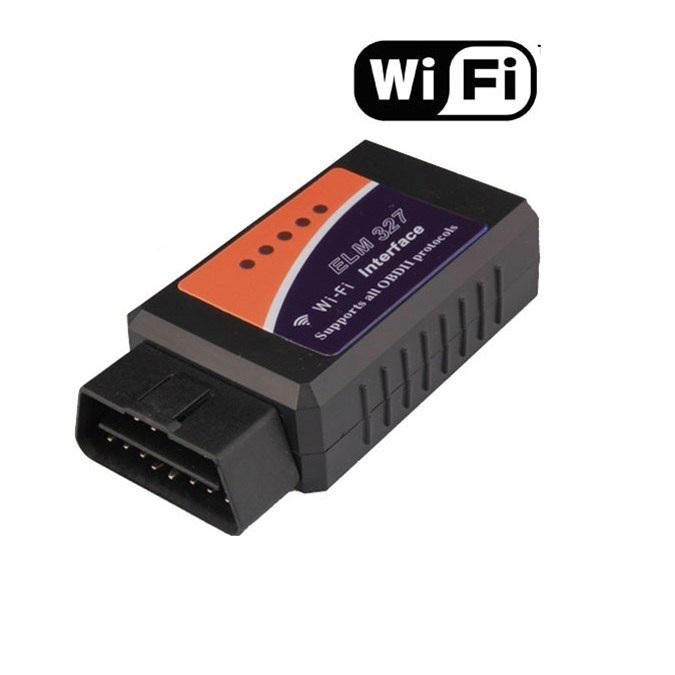

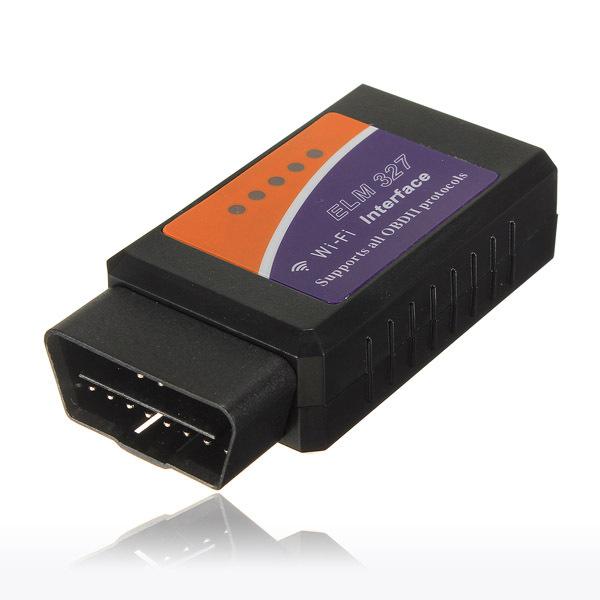

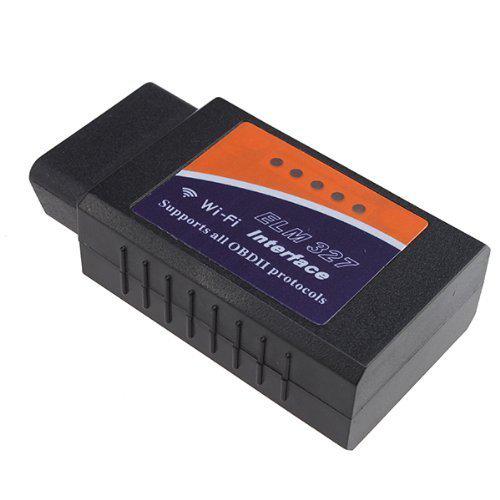

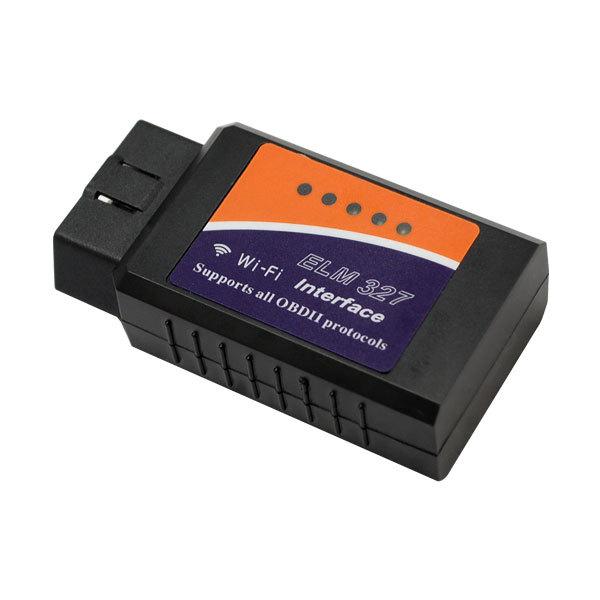

Wifi Elm327 Wifi Elm 327 Wireless Obd2 Car Scanner Adapter Scan Tool on 2040-parts.com

WI-FI OBD AUTO CHECKER is capable of communicating with vehicles which adopt following protocols:

ISO 9141

ISO 11898(aka. CAN)

ISO 14230(aka. KWP2000)

ISO 15765(aka. CAN)

SAE J1939

able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with WI-FI OBD AUTO CHECKER. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained.


Specifics:

·SSID: WiFiOBD

·IP: 192.168.0.10

·Subnet: 255.255.255.0

·Port: 35000

·Range: 50 ft (Line of sight)

·Antenna: Internal

·Power Consumption: 0.75 Watts

·Wifi Standard: 802.11a/b/g

·Operating Temperature: -15 to 100 Deg Celsius

·Plastic: Automotive Grade

·Physical Dimensions: 2.75 x 1.25 x 1.2 inches


Display the followting datas:

Vehicle Speed

RPM

Fuel Consumption*

Engine Coolant Temp

Fuel Pressure

Calculated Engine Load

Throttle Position

Intake Manifold Pressure

Air Intake Temp

Timing Advance

Mass Air Flow

Fuel Level

Barometric Pressure

EVAP System Vapor Pressure

Fuel Trim Please note that your vehicle may not support all above parameters. How many parameters you can get depends on the vehicle manufacturer's implementation.


Compatible Software and Features:

What features you can have depended on what software you install on iPhone /iPod touch /iPad/ PC. There are a lot of commercial or free software. The features of the software differ from one another. User should choose his own software by his preference. For more details about the software, please consult the software vendors.


Package Include:

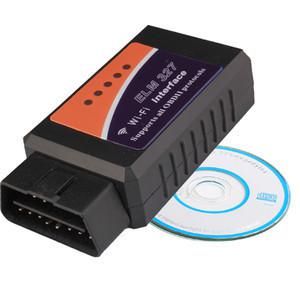

·1 x ELM327 WiFi Wireless OBD2 Interface

·1 x Software CD


Where can I get the software?

You can log on to the apple application store to get your commercial/free software.

There is a freeware in the CD-ROM comes along with the device. You can use this piece of software to config and test the wifi OBO auto checker.
